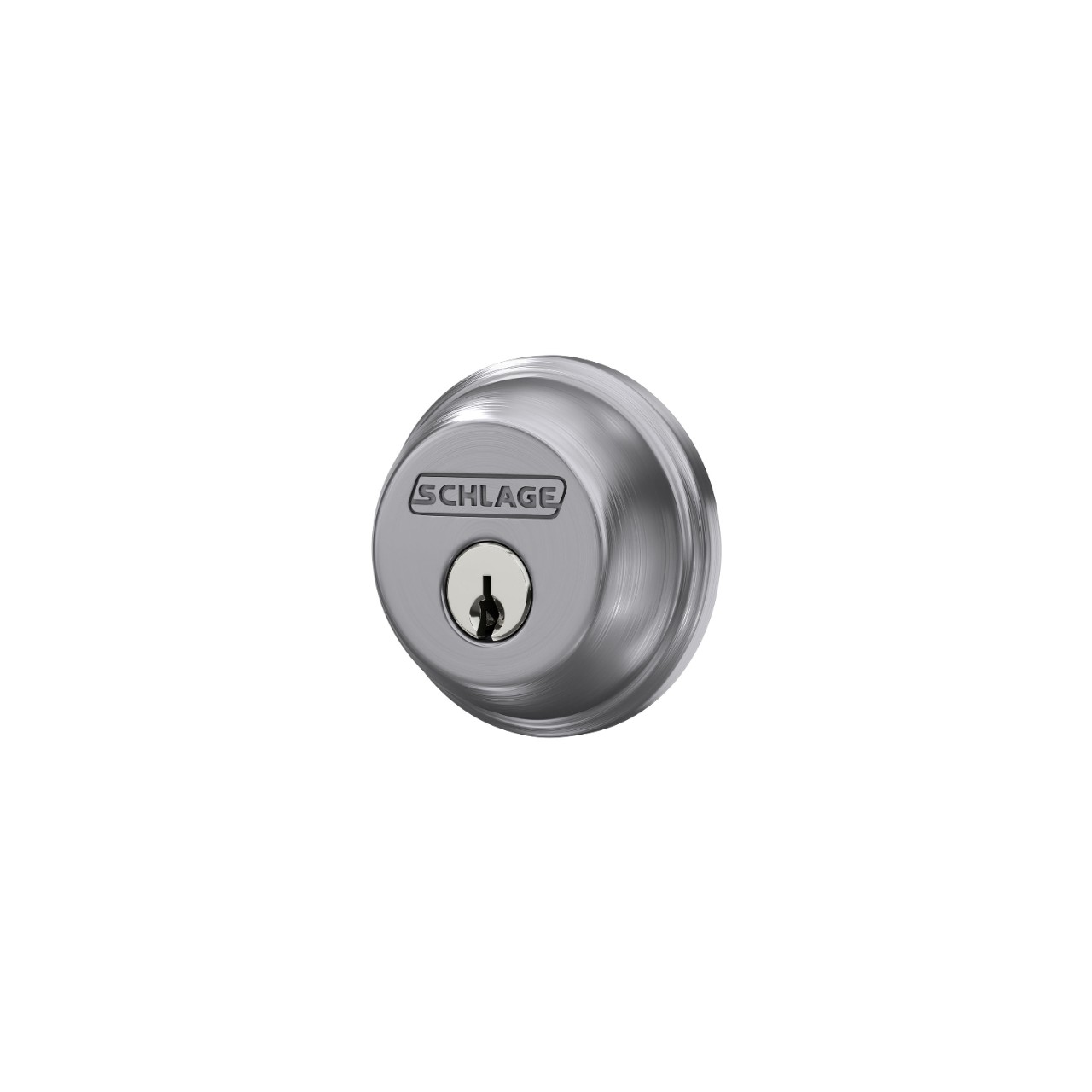

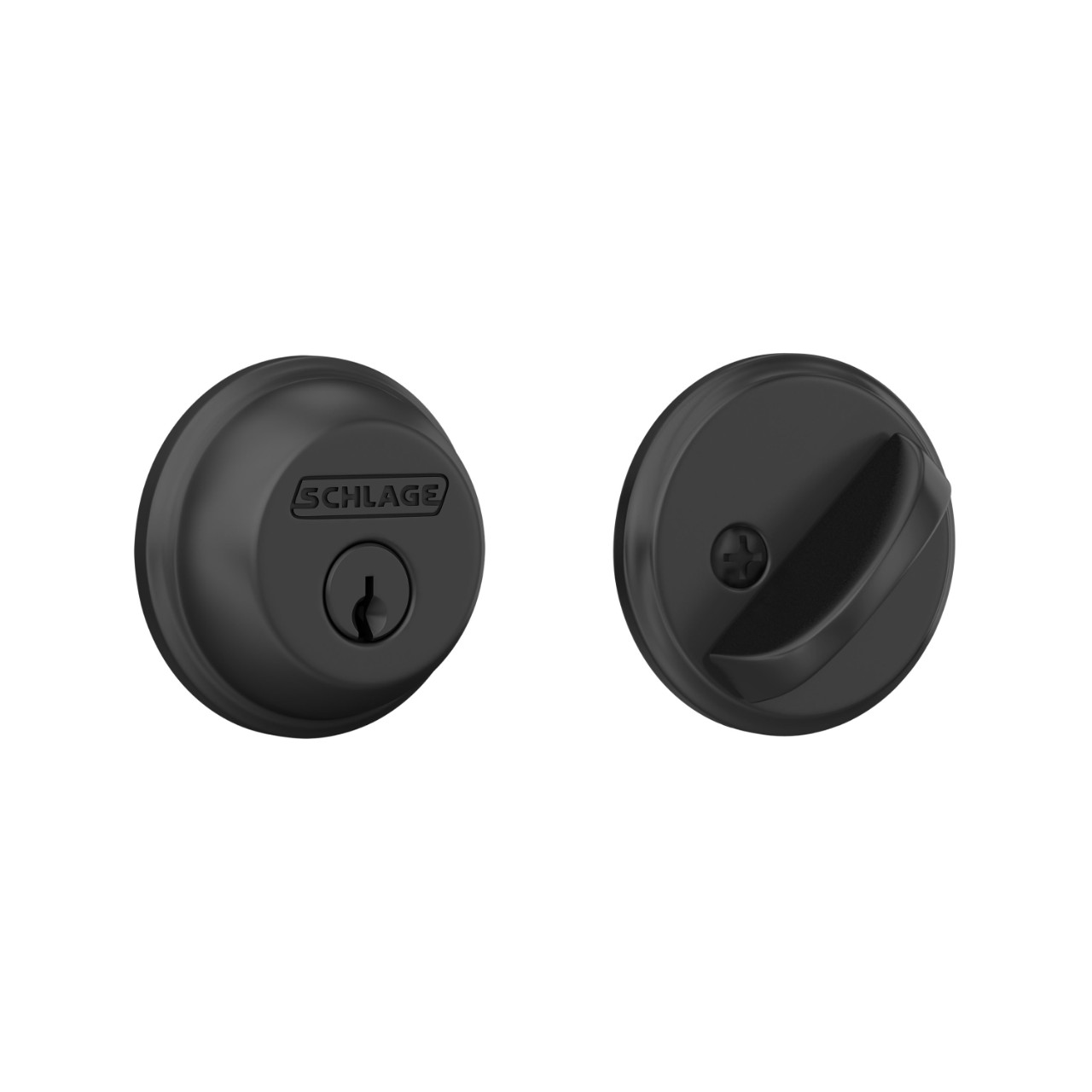

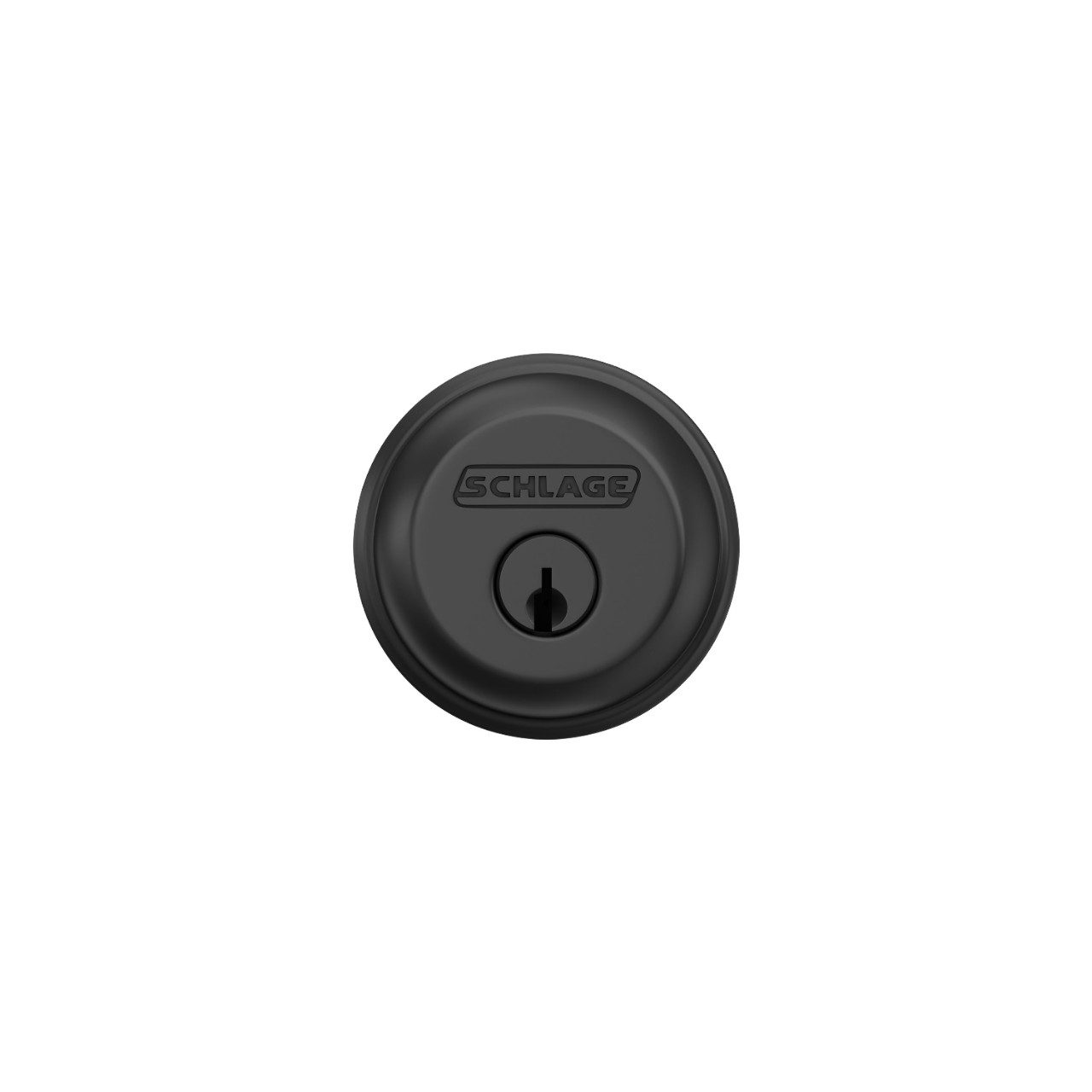

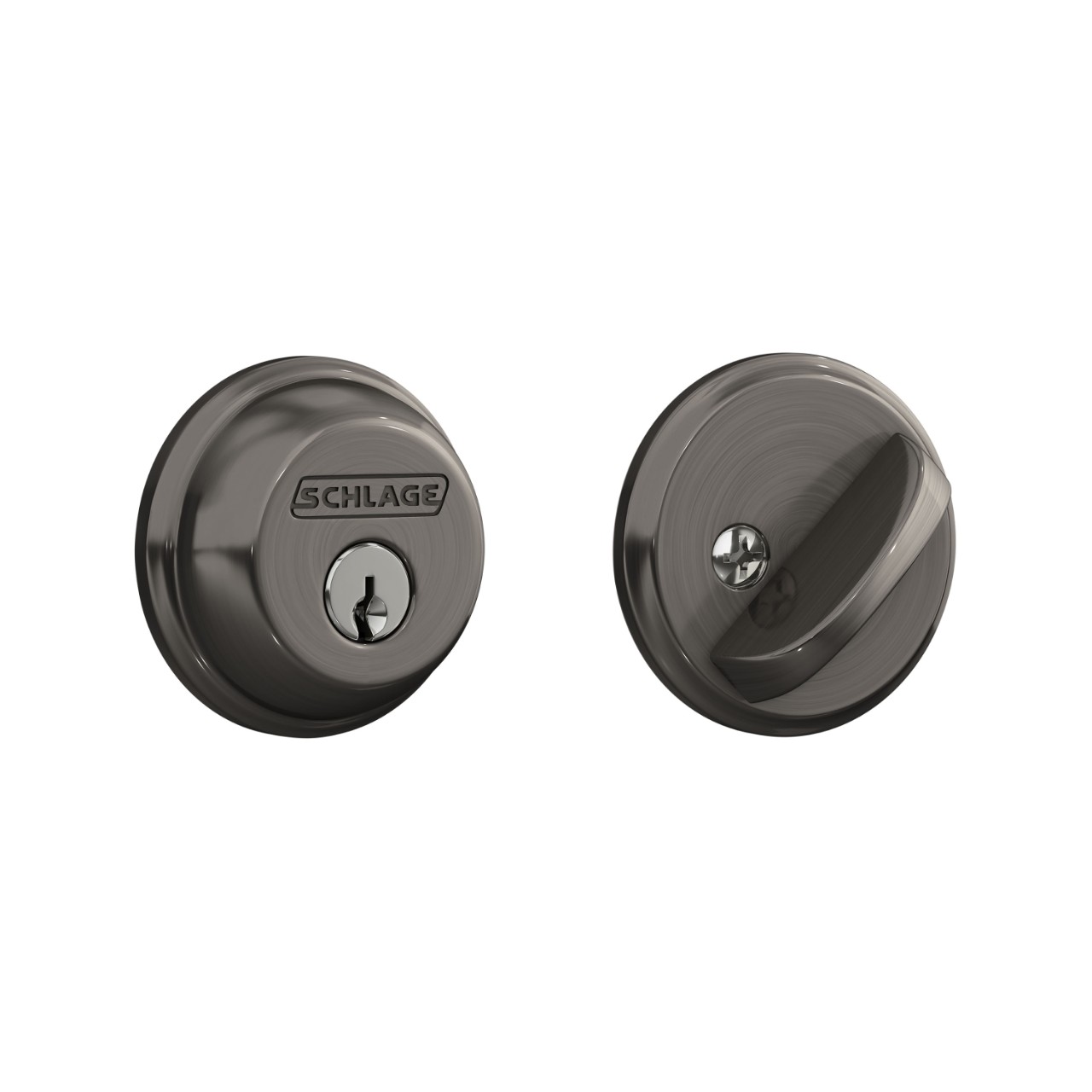

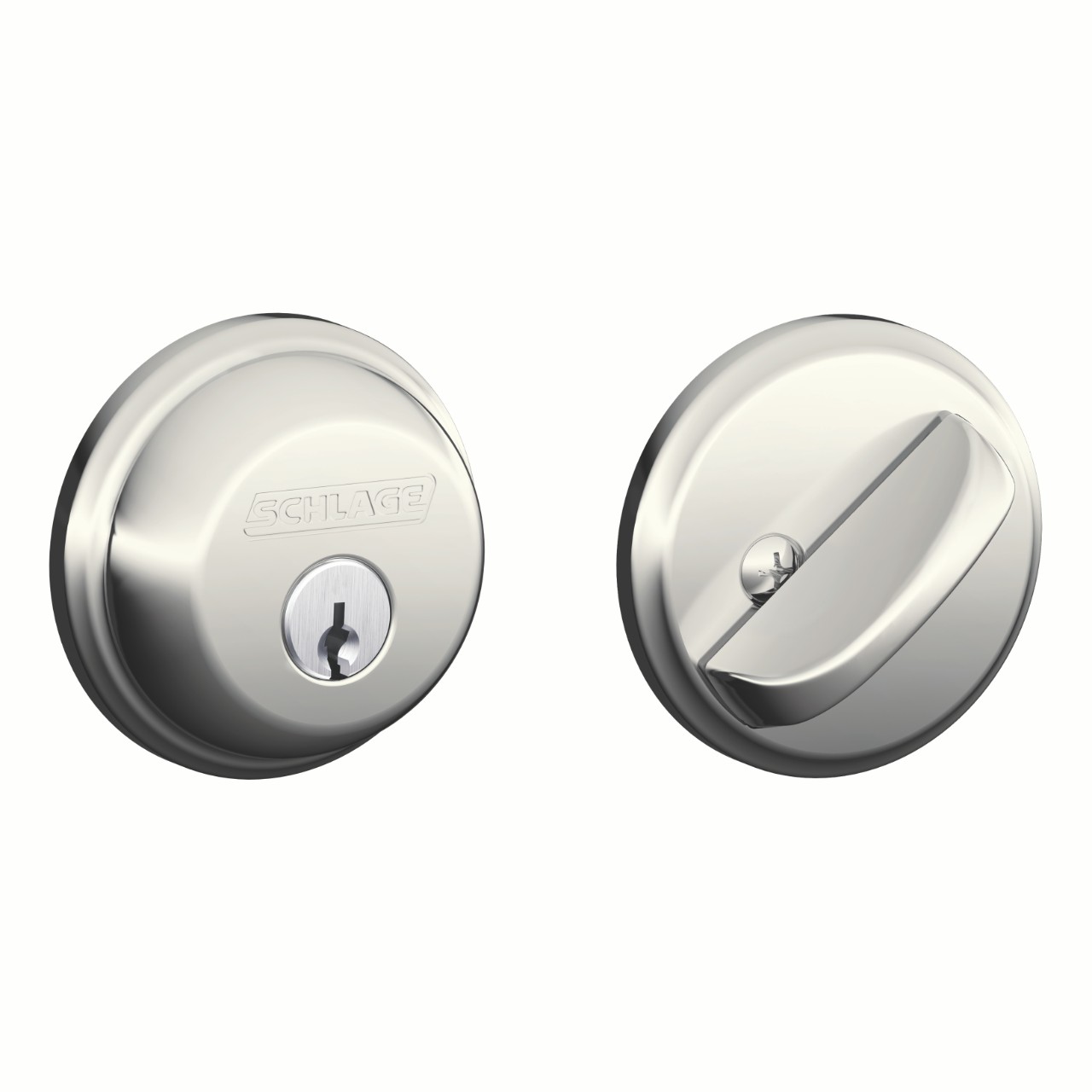

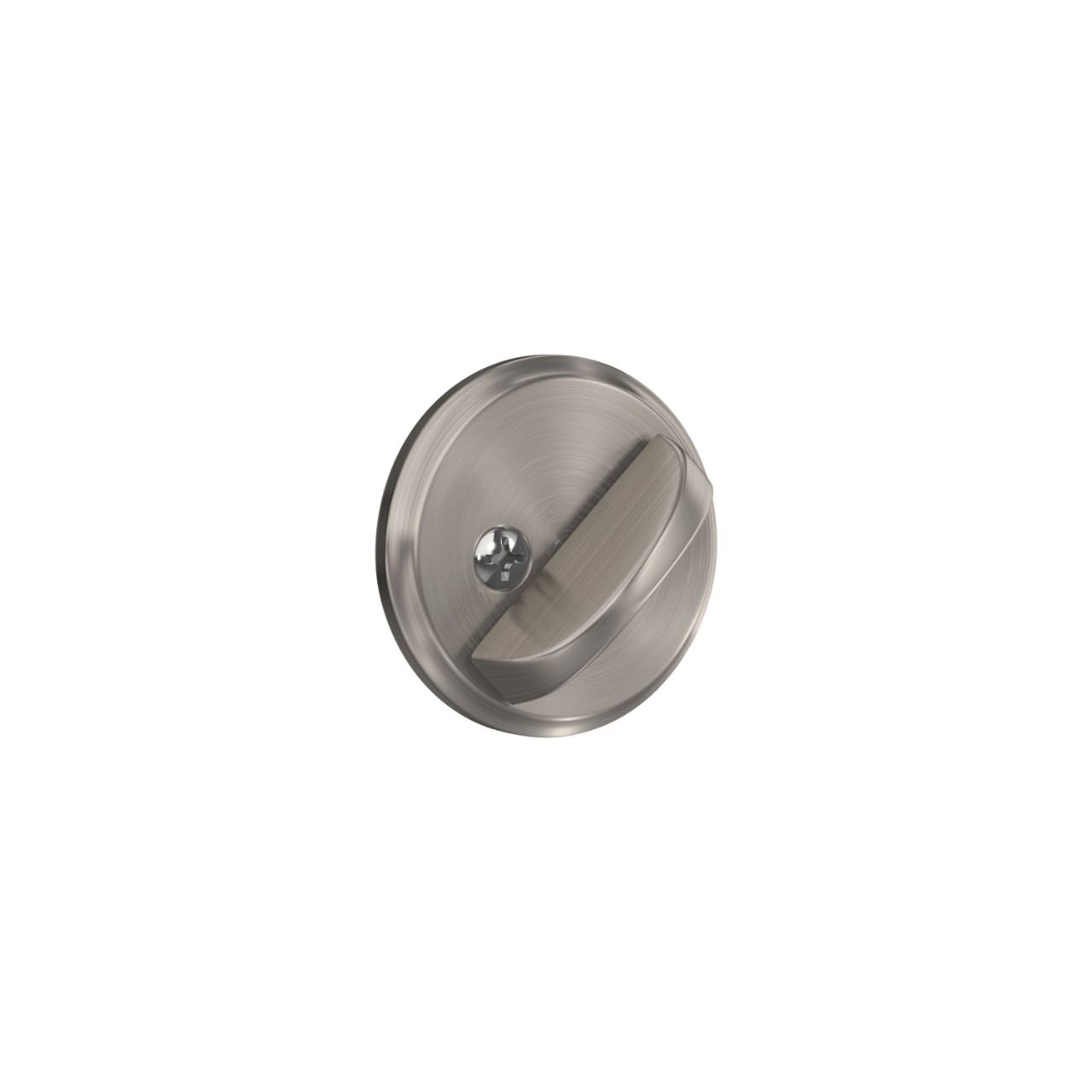

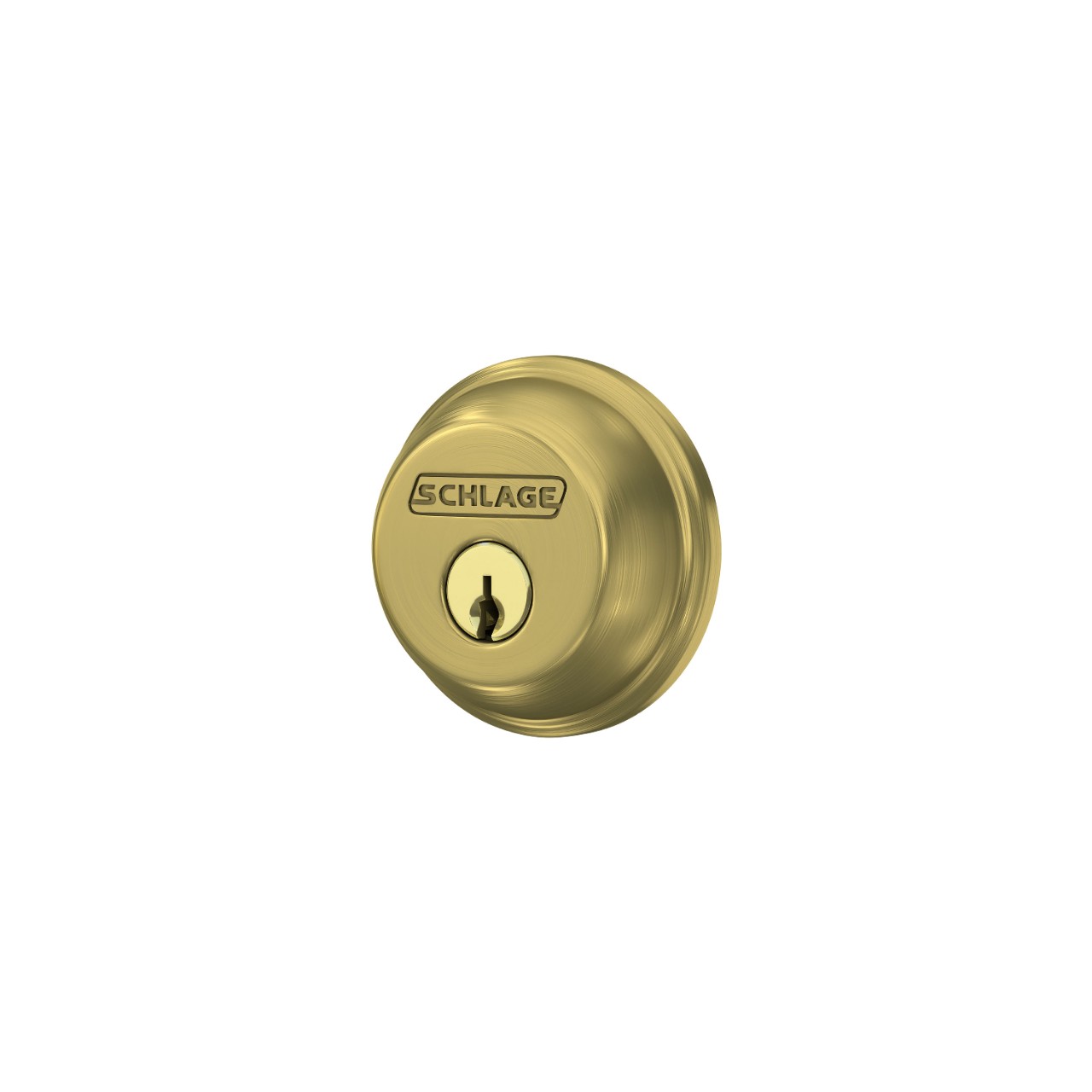

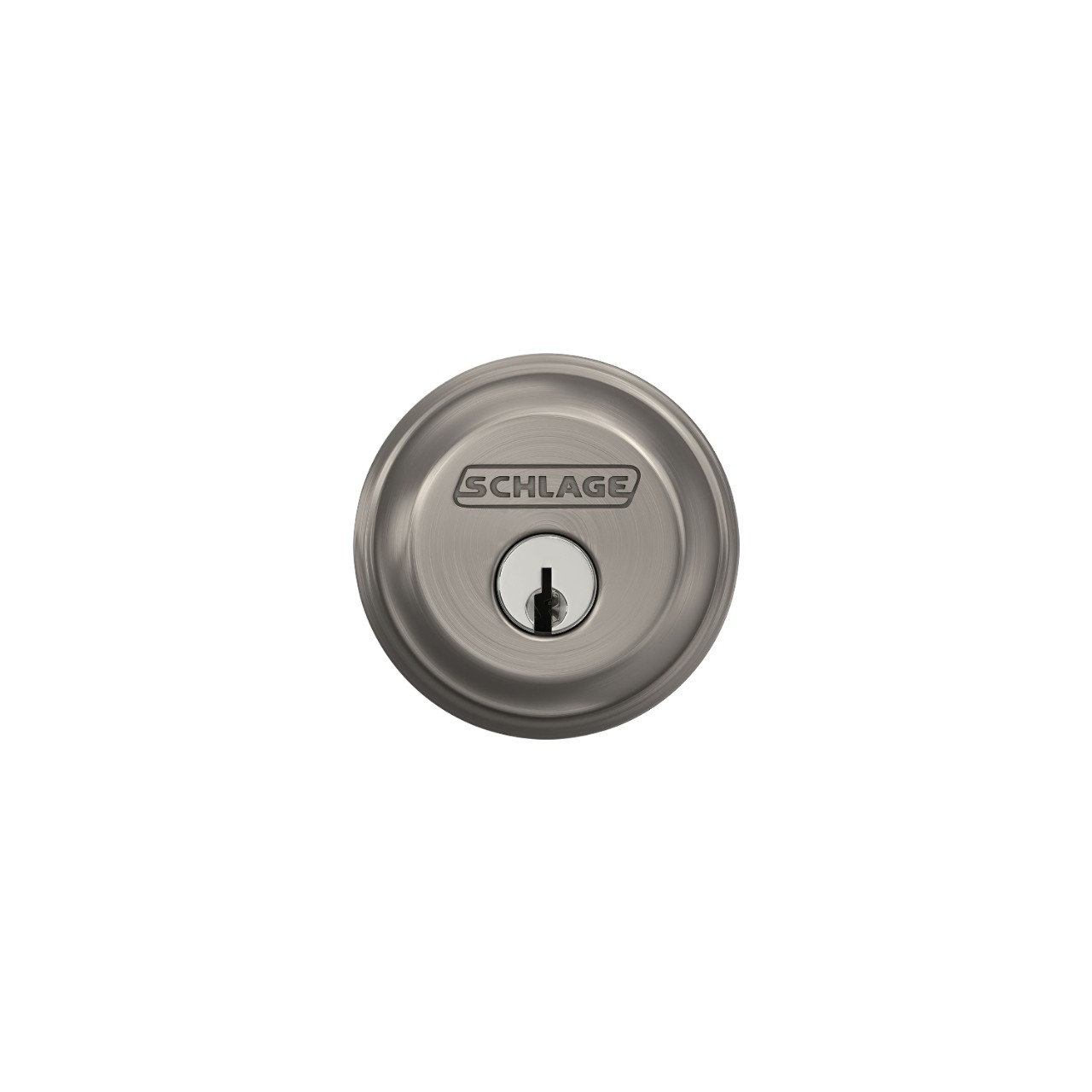

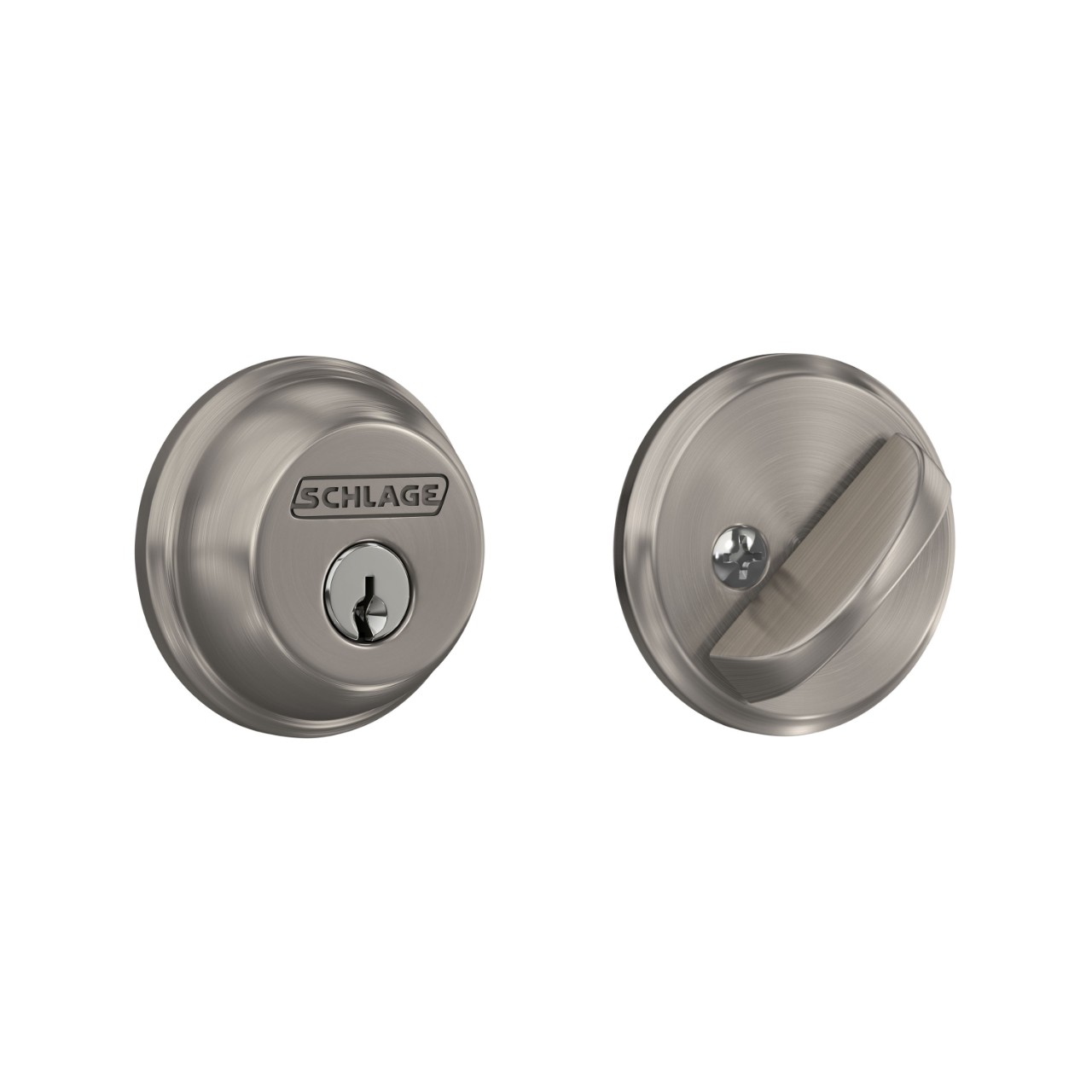

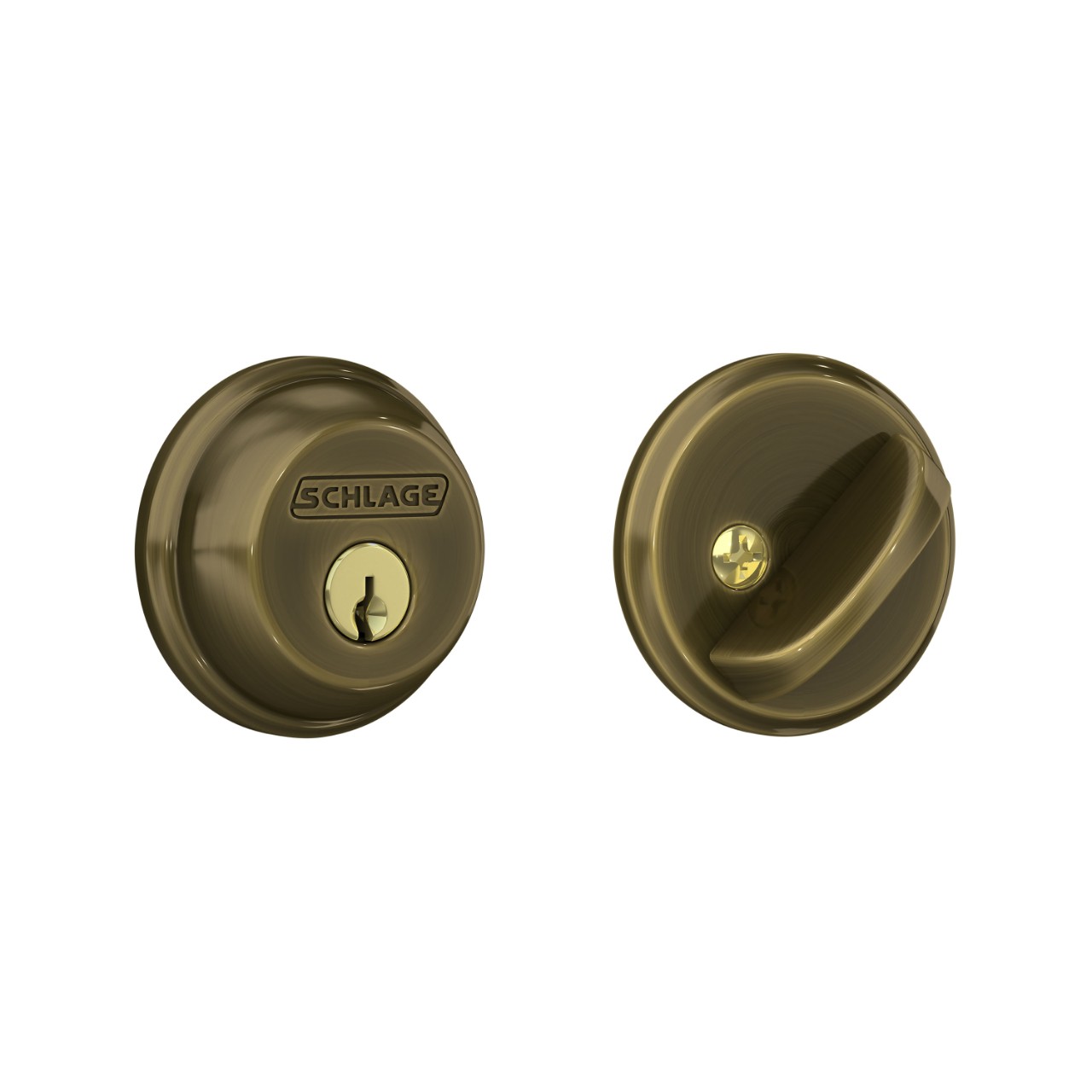

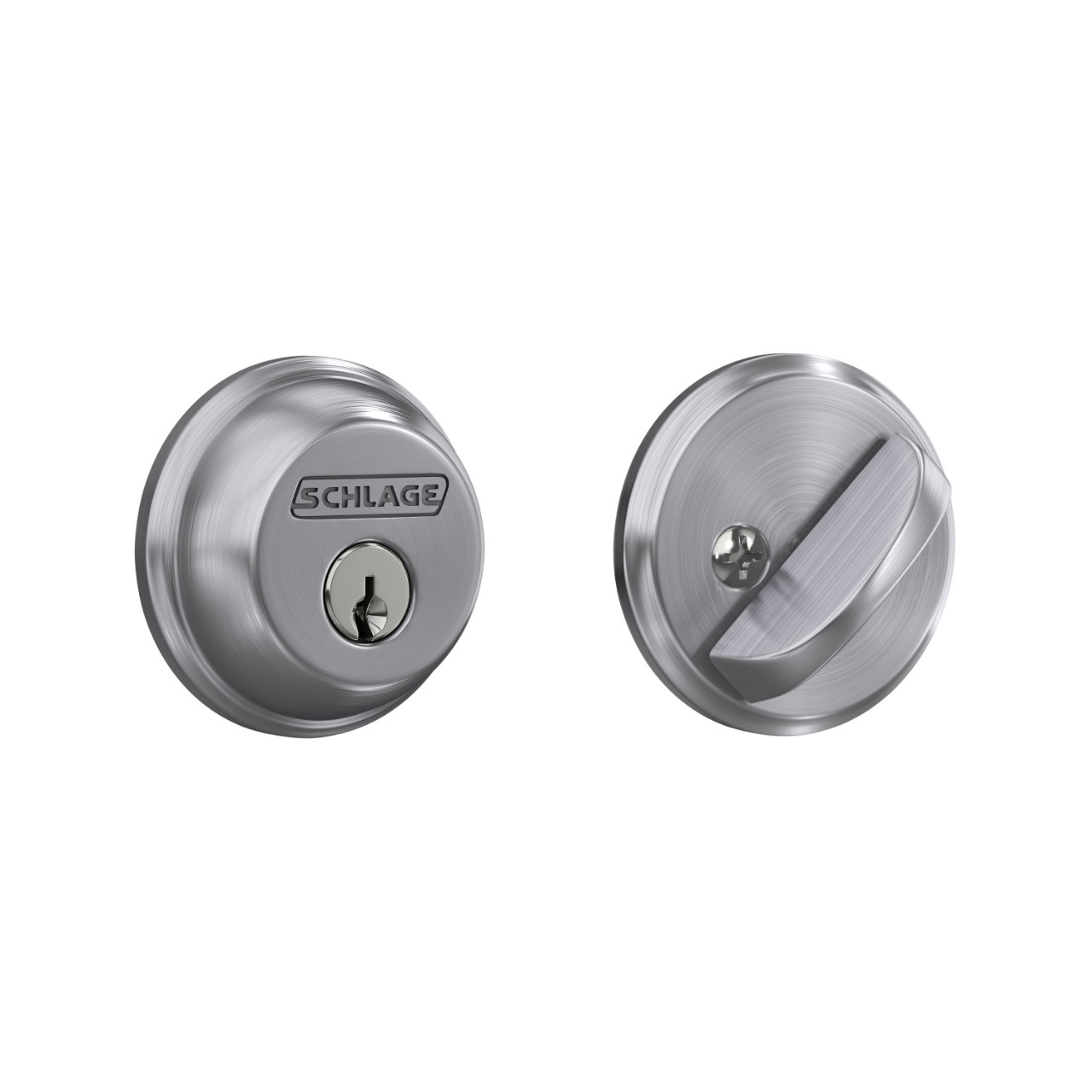

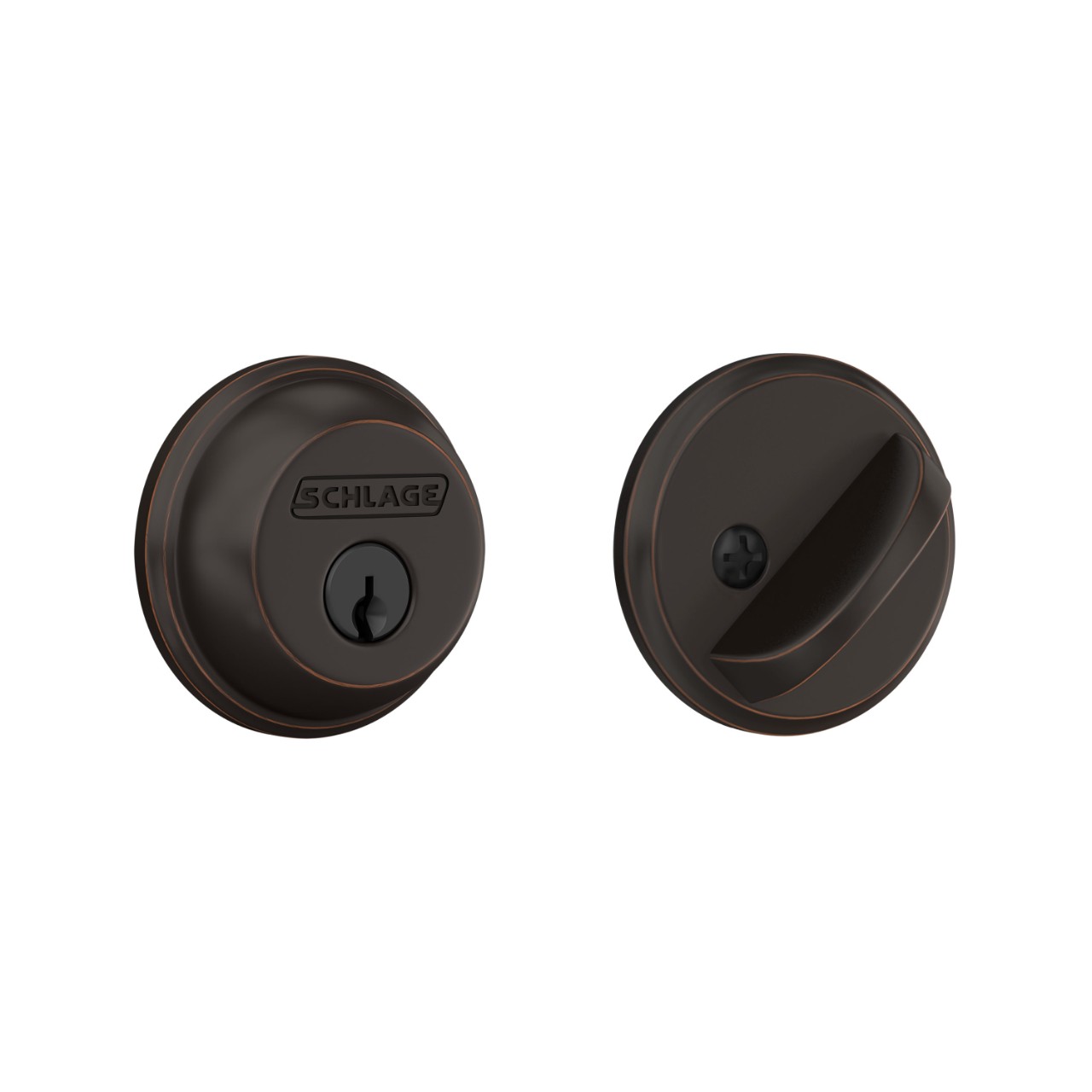

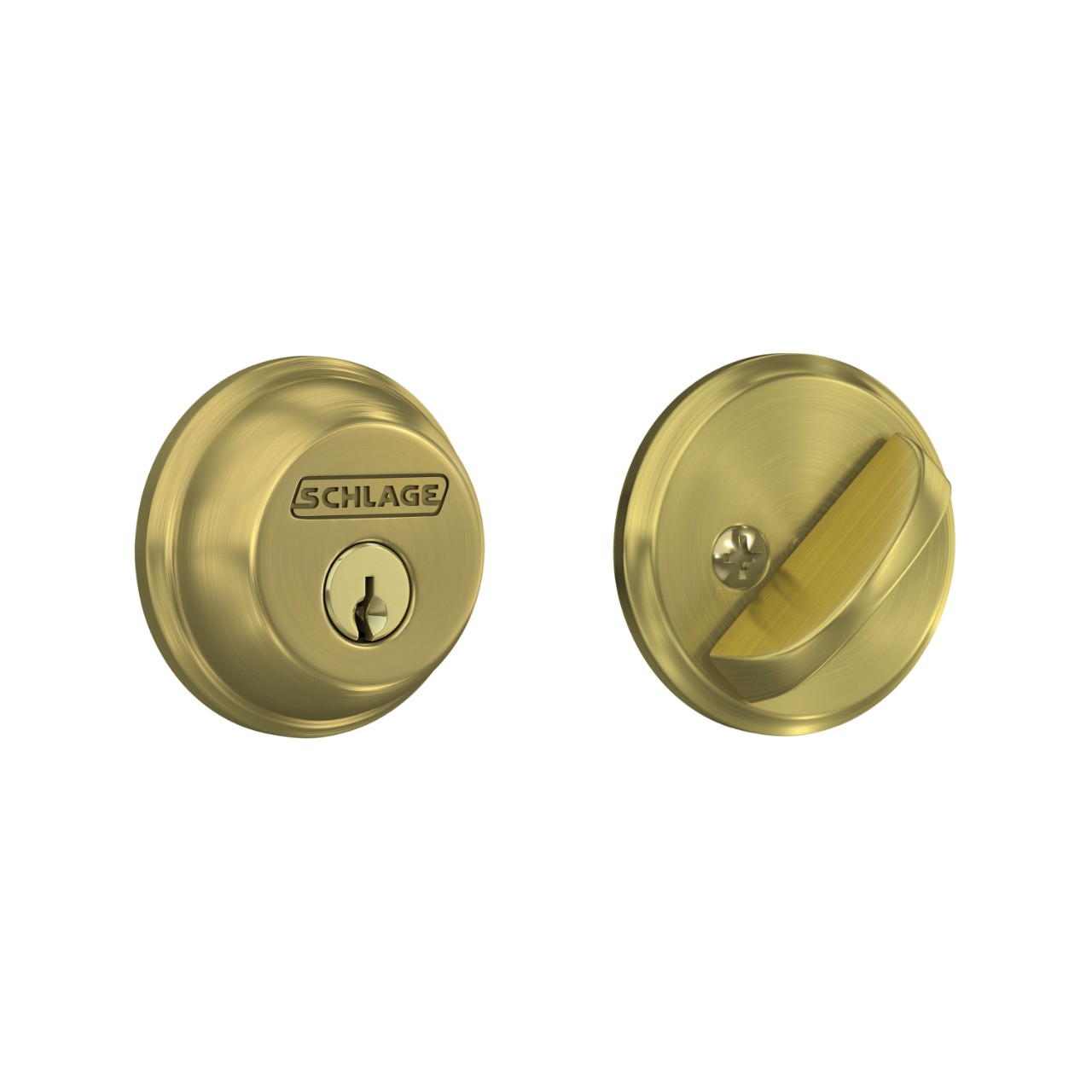

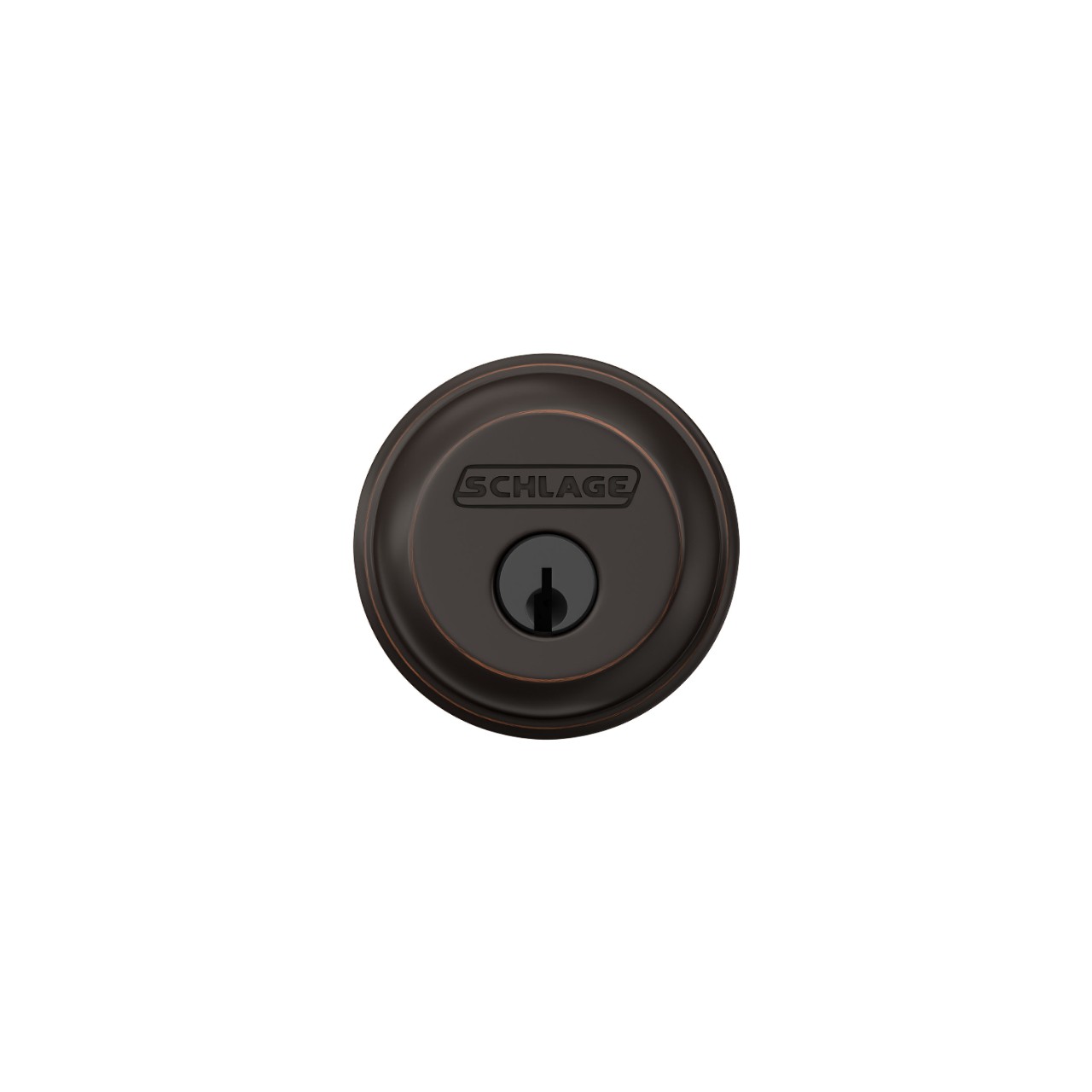

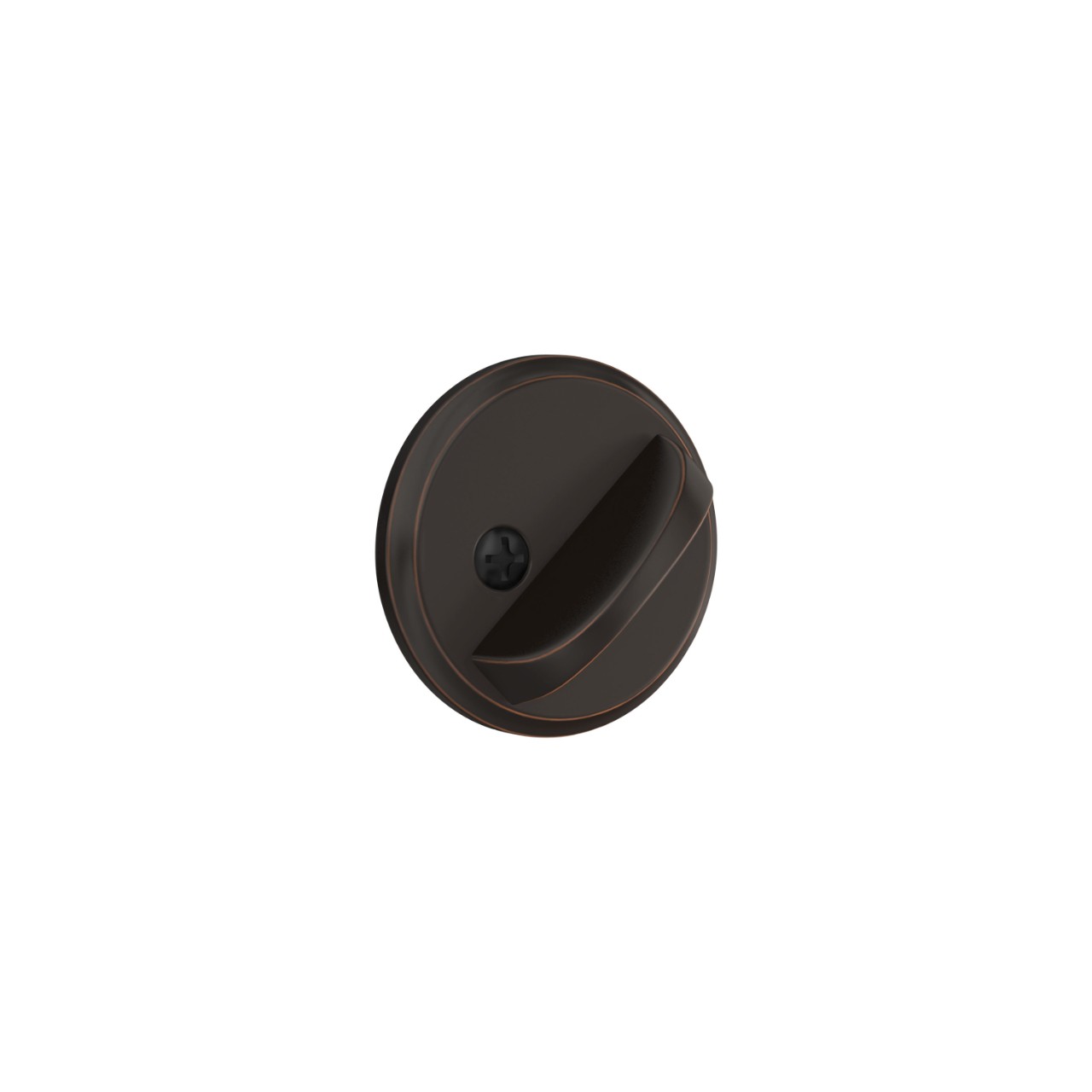

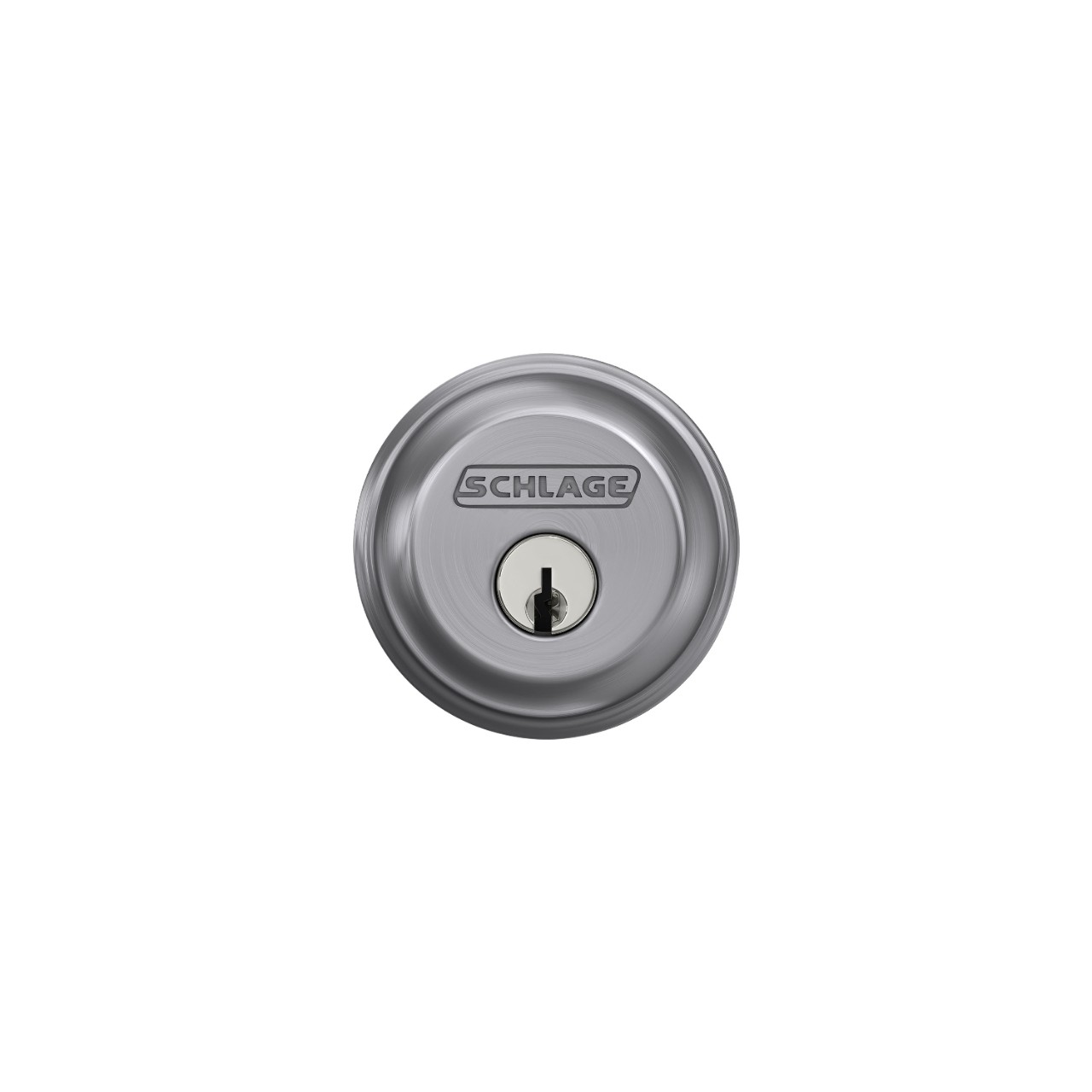

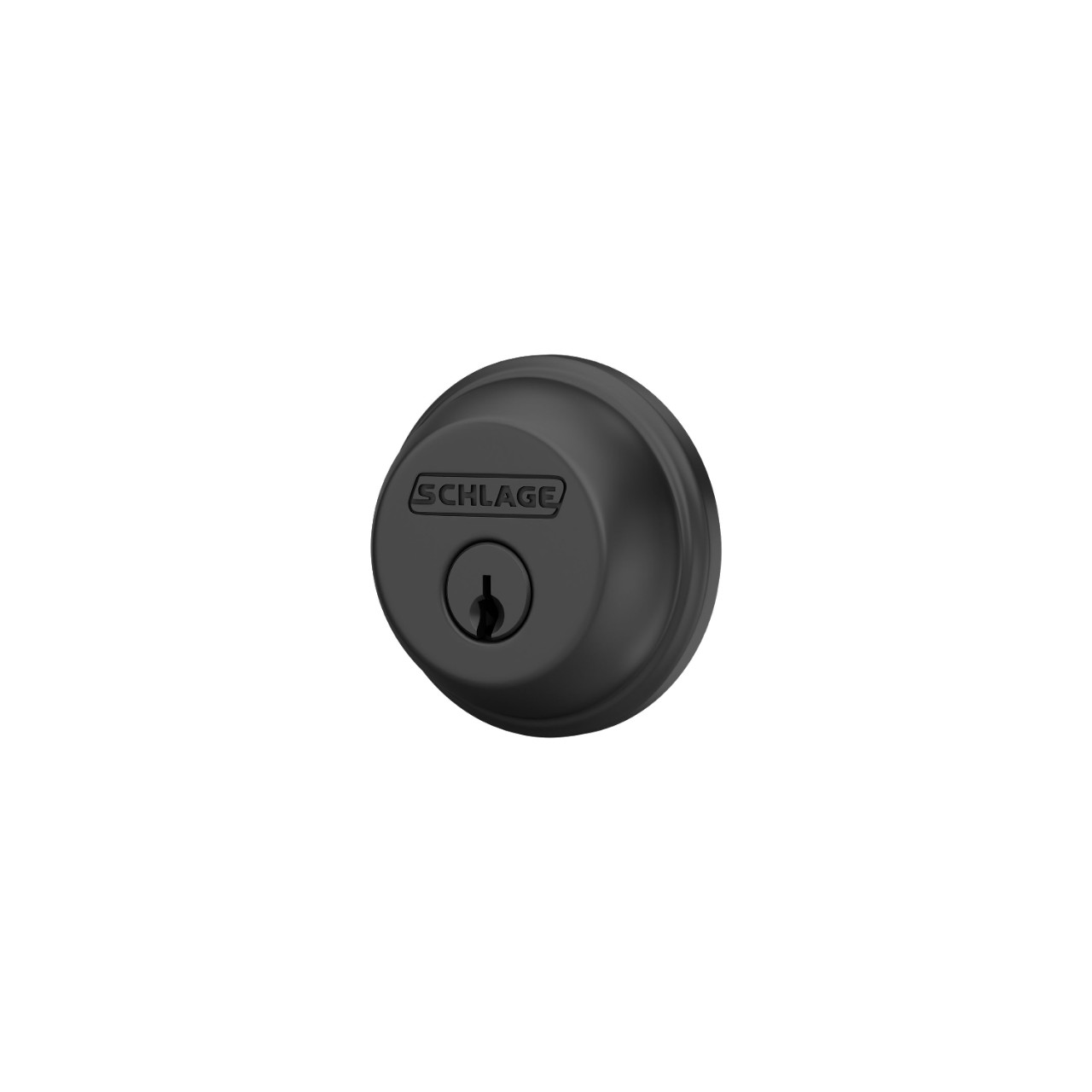

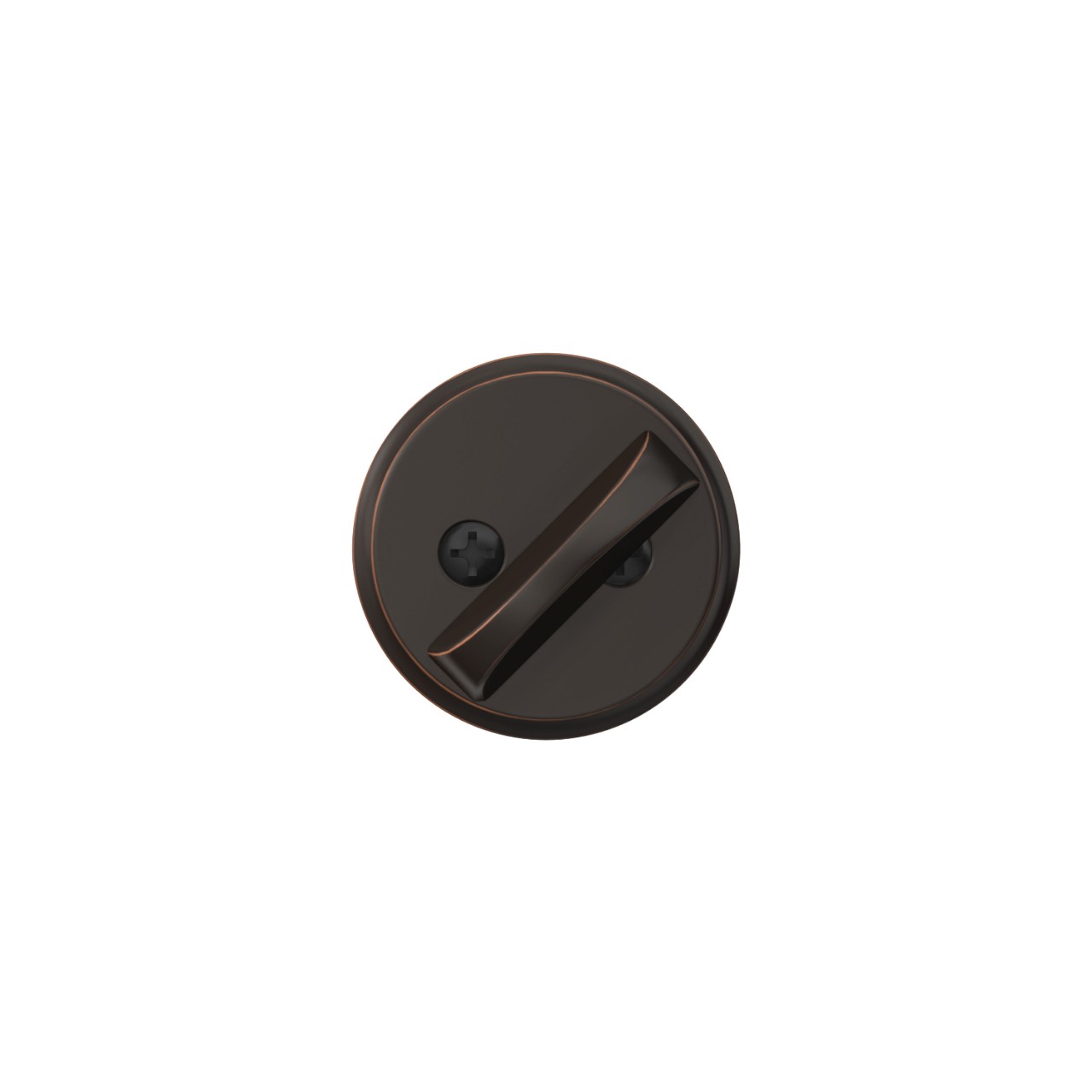

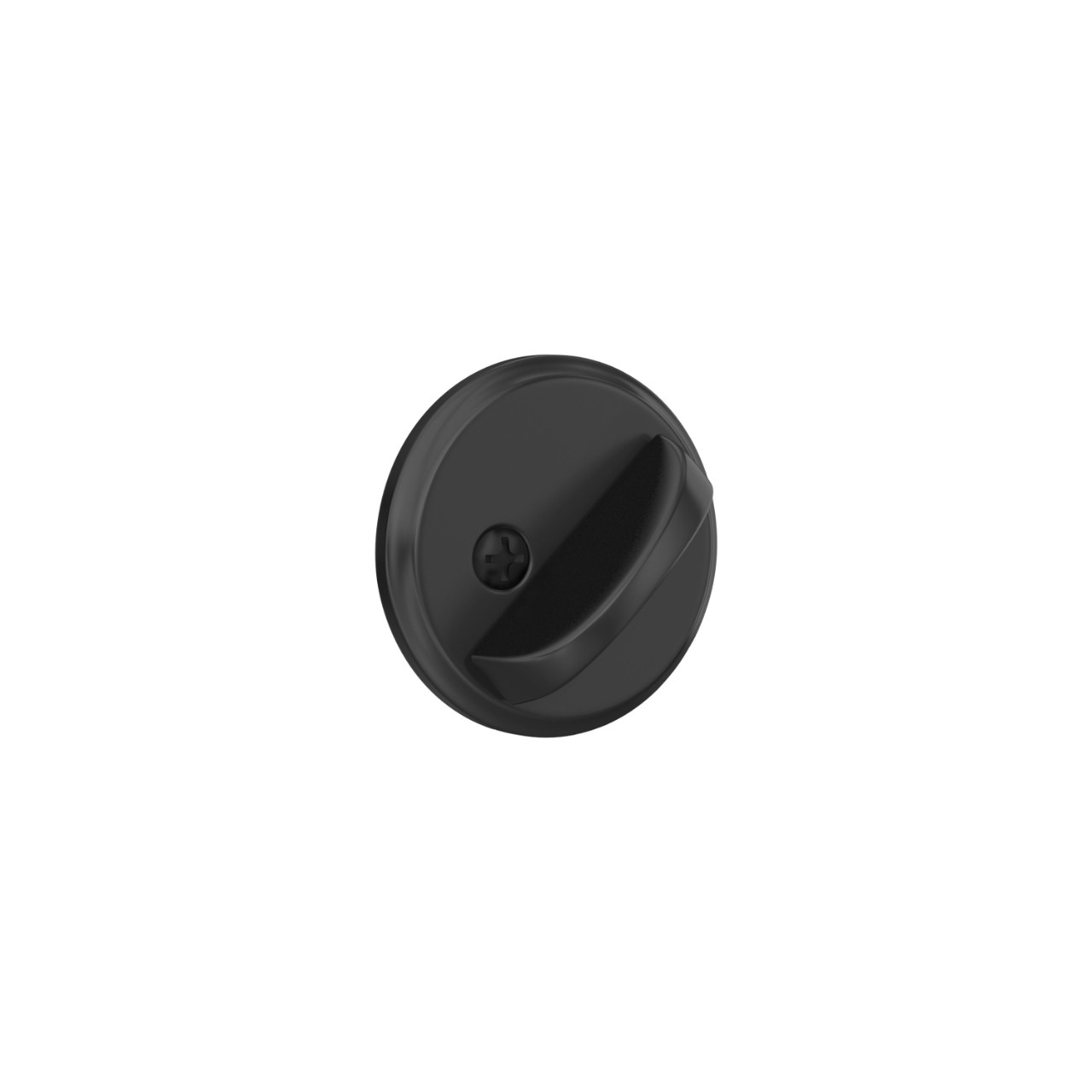

Single Cylinder Deadbolt

B60 505

Easy installation: One-person project; no extra hands needed



Biggest adjustable bolt available



Pick and bump resistant



Adjusts to fit all standard door preparations



Quality finishes for lasting beauty



Lifetime finish and mechanical guarantee



Unique Snap & Stay design



Certified Commercial Grade 1



Graded Best in Residential Security, Durability, and Finish

Learn more about grading.



Applications: Residential single- and multi-family doors



Backset: Universal deadbolts fit 2-3/8 or 2-3/4 backset



Certifications:

Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 1



Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish



Door thickness range: 1-3/8 to 1-3/4 (5mm-51mm) standard



Keying: 5-pin tumbler C keyway standard, with two brass keys. 6-pin cylinder available



UL Listed: Locks for up to three-hour fire doors available



Information E-books and Videos

Single Cylinder Deadbolt

B60 505

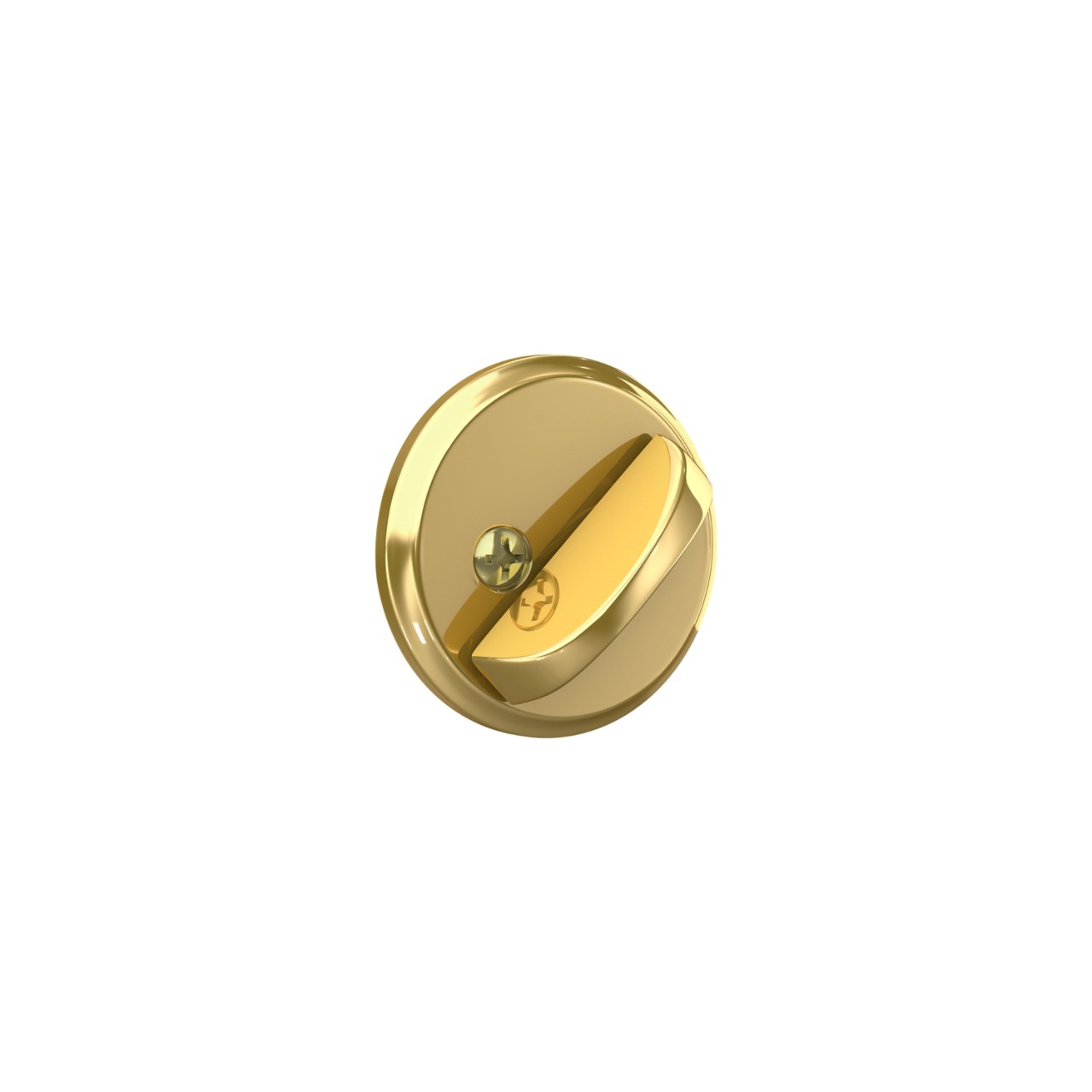

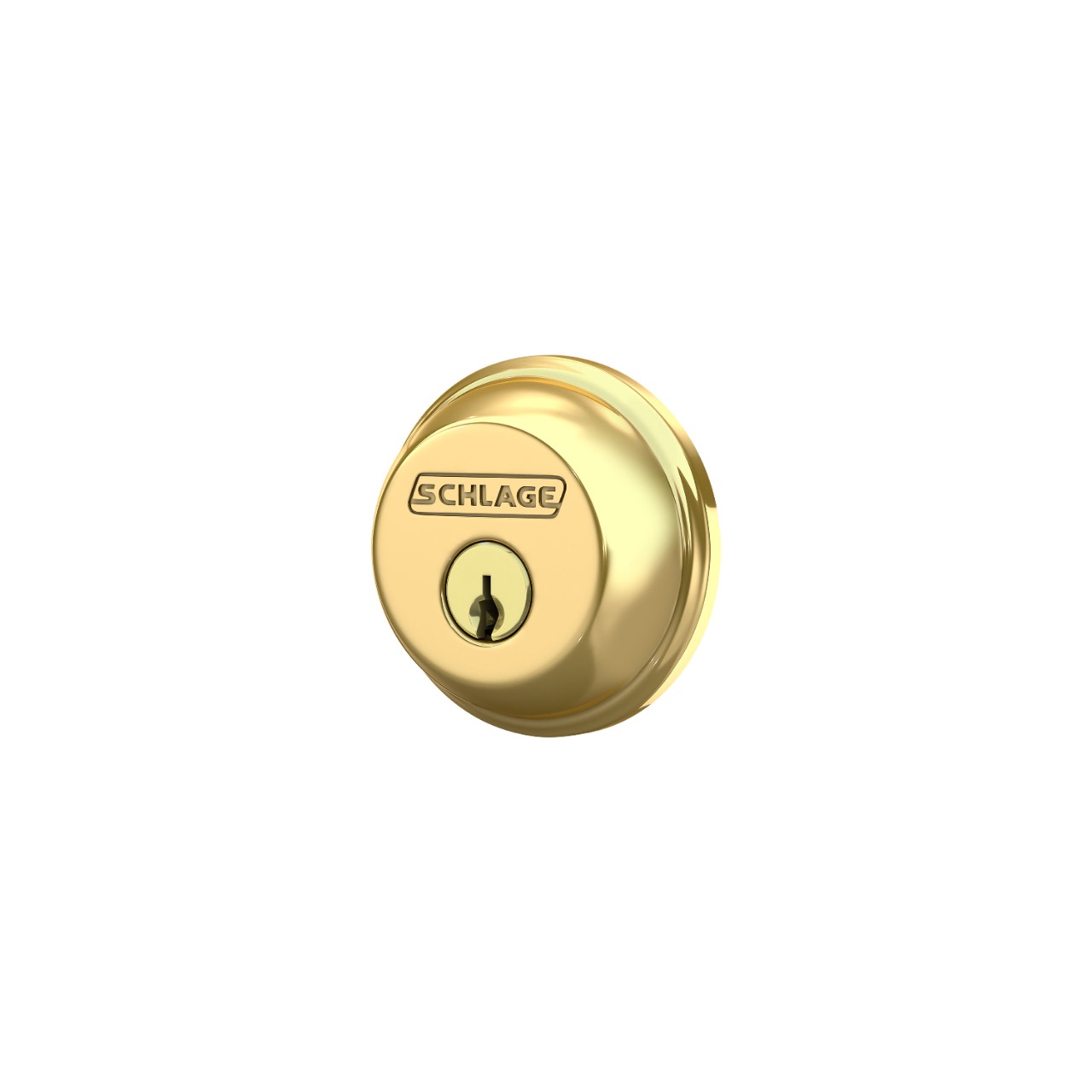

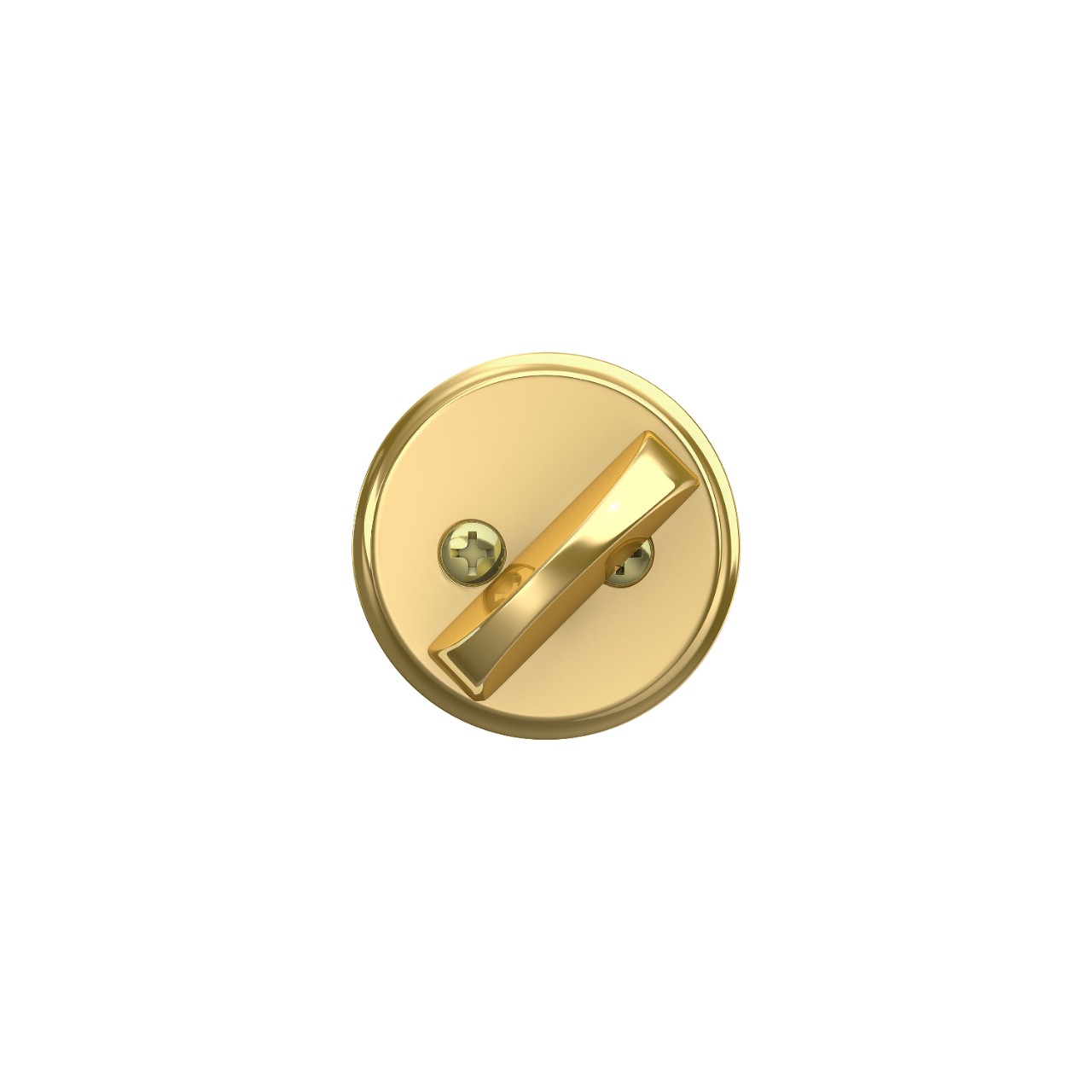

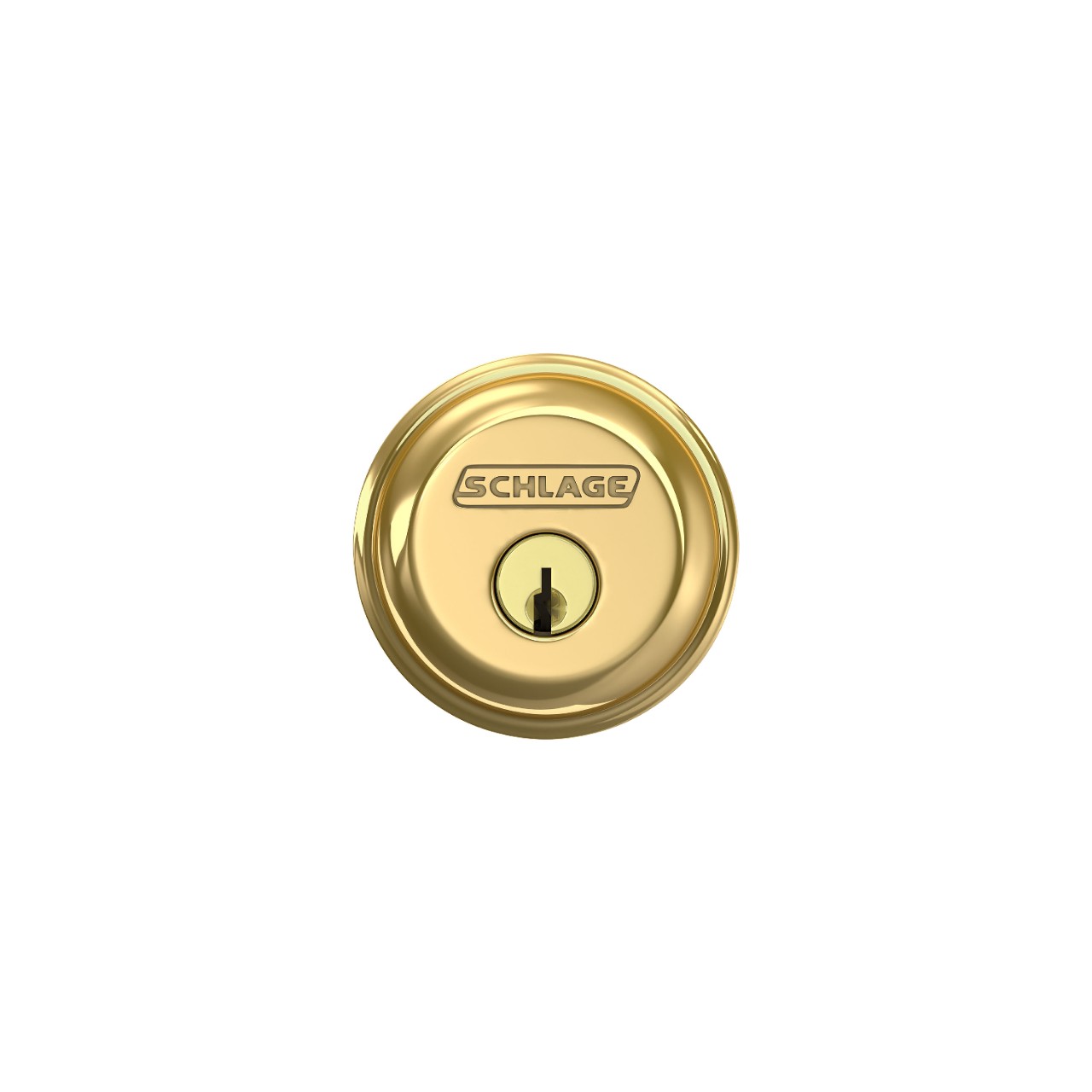

Finish:Bright Brass

Easy installation: One-person project; no extra hands needed



Biggest adjustable bolt available



Pick and bump resistant



Adjusts to fit all standard door preparations



Quality finishes for lasting beauty



Lifetime finish and mechanical guarantee



Unique Snap & Stay design



Certified Commercial Grade 1



Graded Best in Residential Security, Durability, and Finish

Learn more about grading.



Applications: Residential single- and multi-family doors



Backset: Universal deadbolts fit 2-3/8 or 2-3/4 backset



Certifications:

Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 1



Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish



Door thickness range: 1-3/8 to 1-3/4 (5mm-51mm) standard



Keying: 5-pin tumbler C keyway standard, with two brass keys. 6-pin cylinder available



UL Listed: Locks for up to three-hour fire doors available
