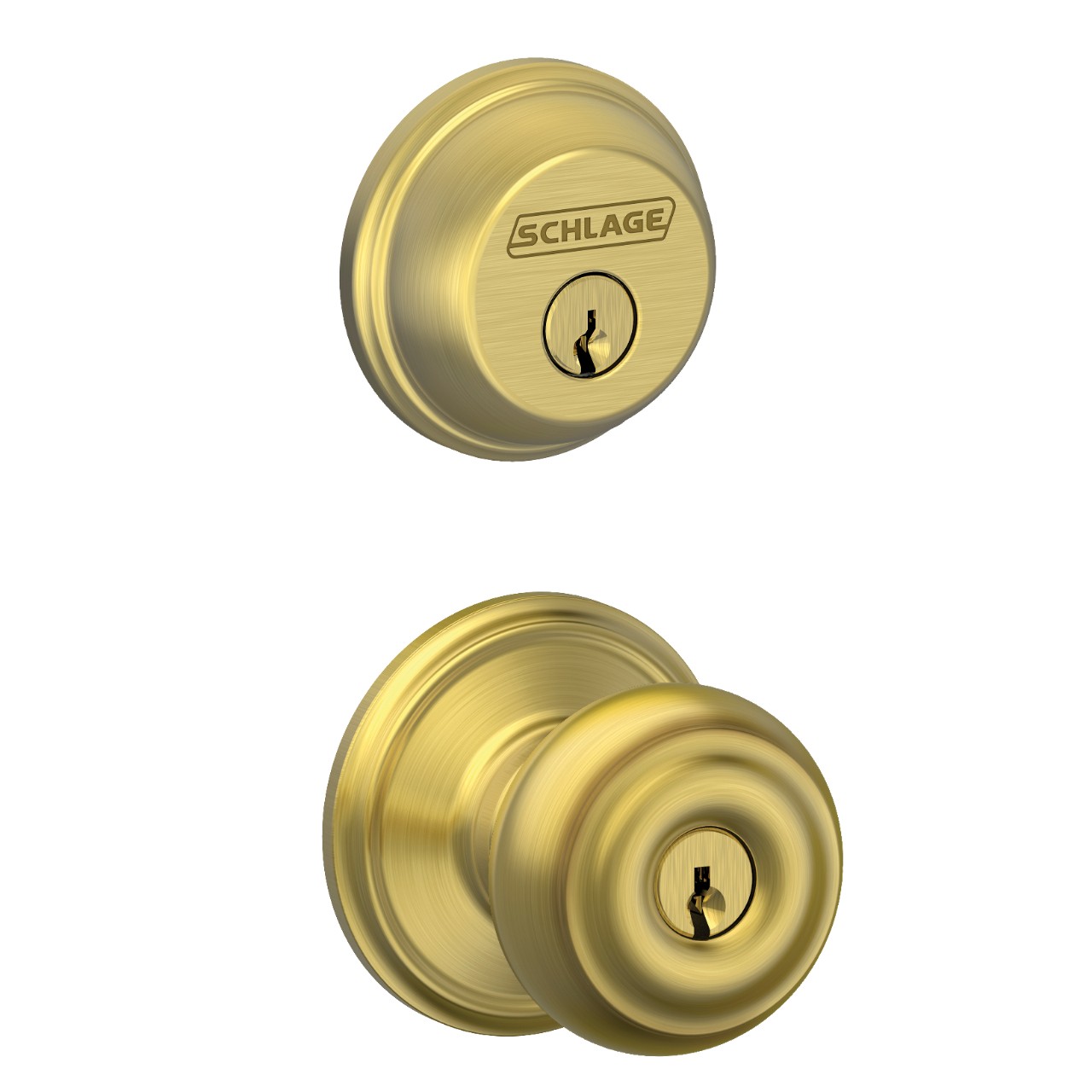

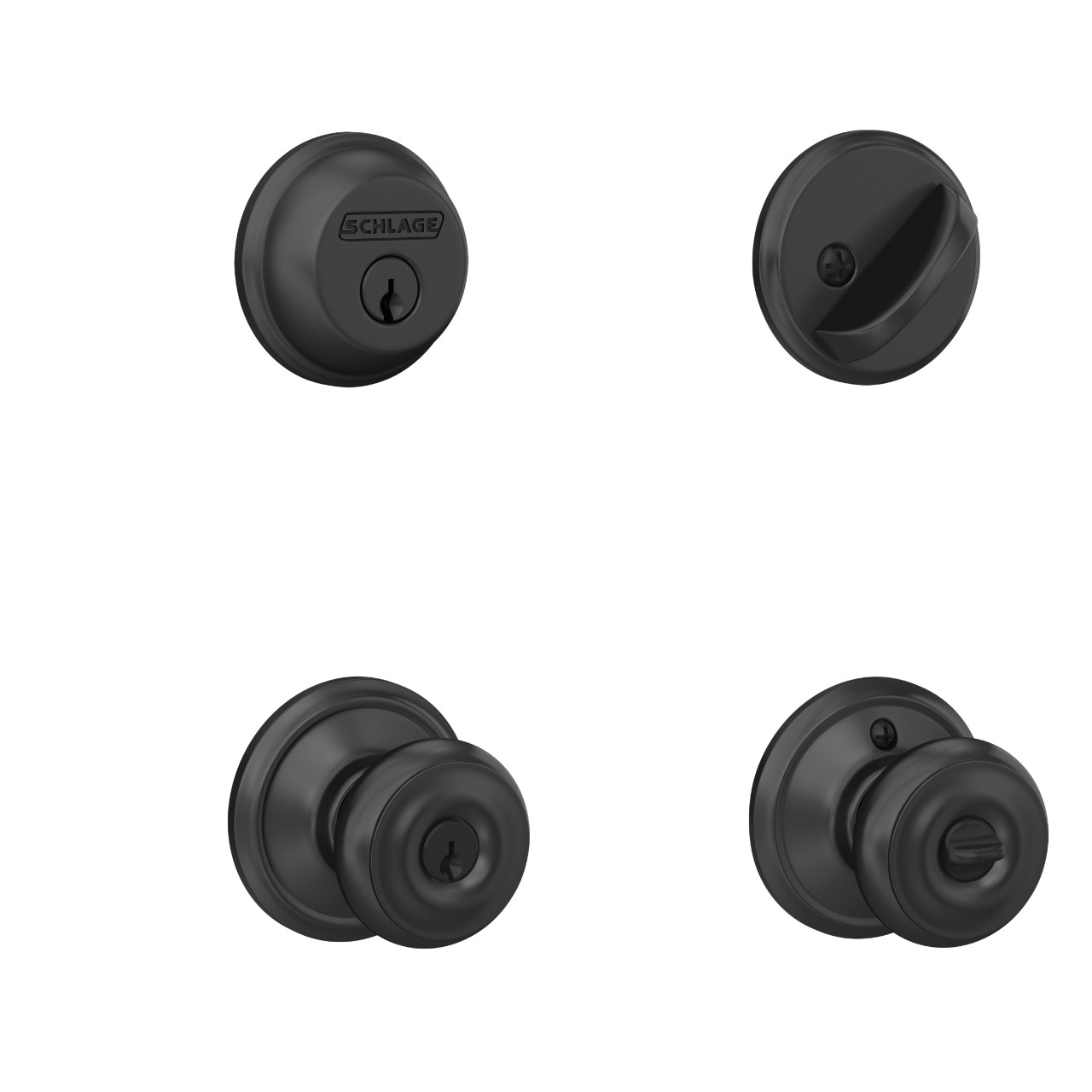

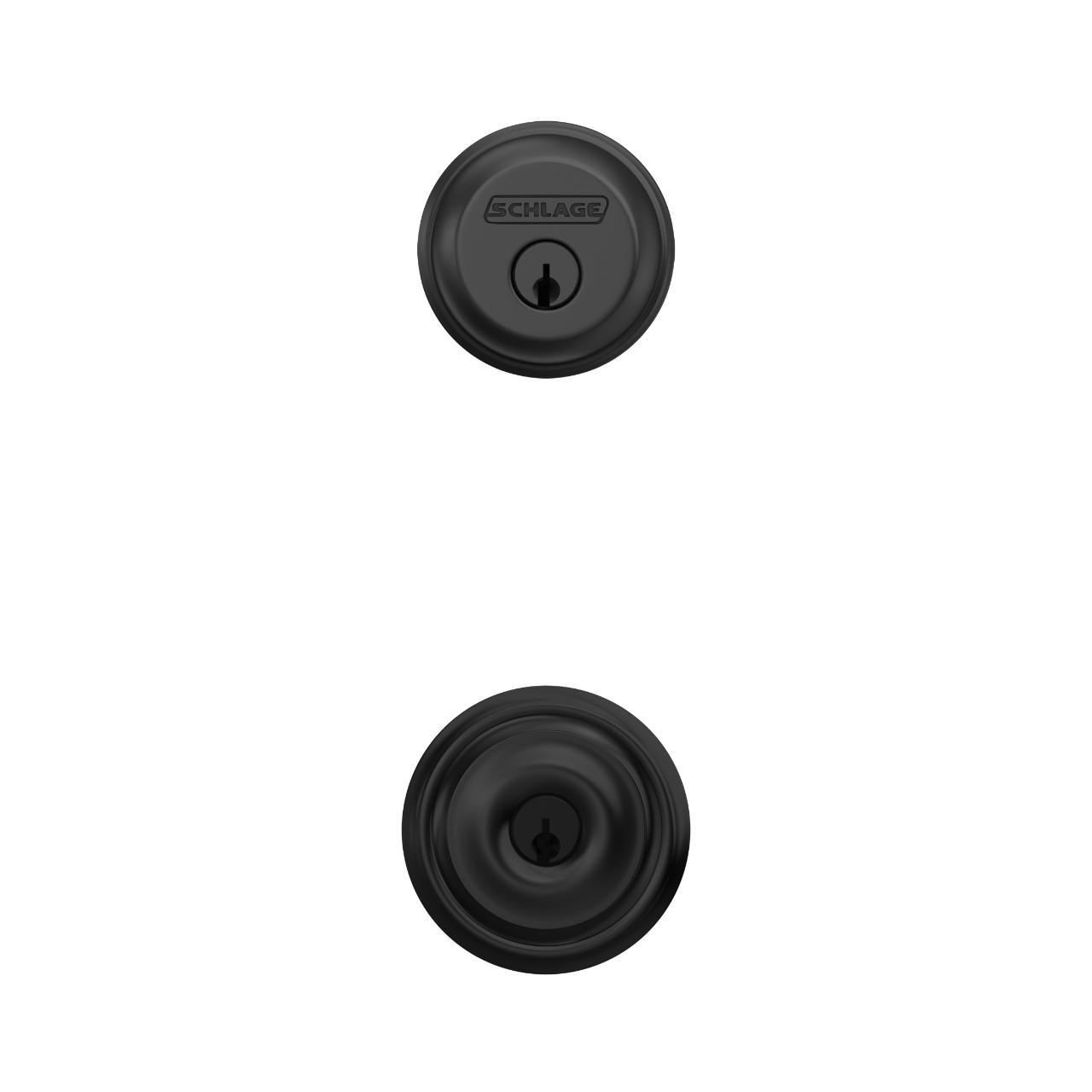

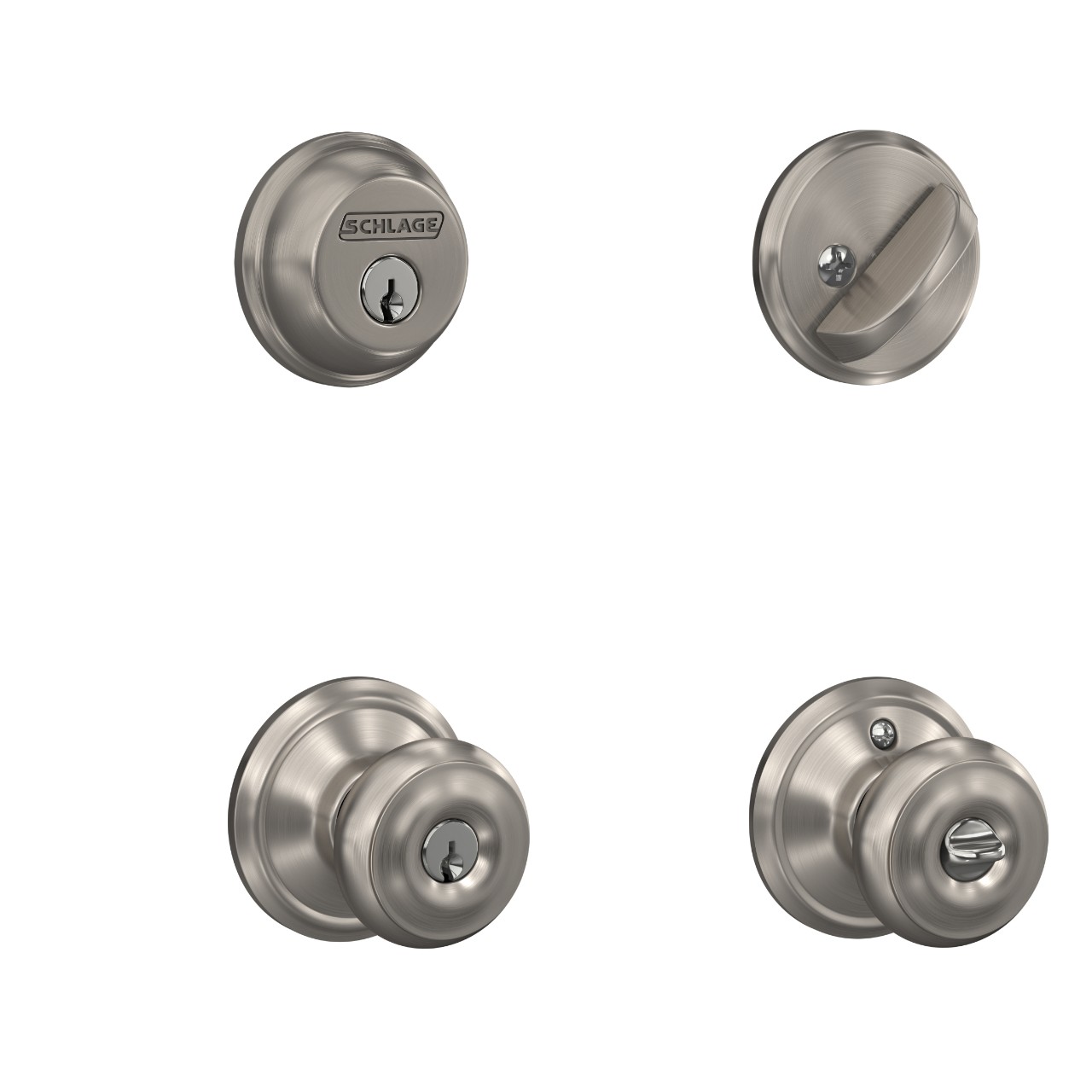

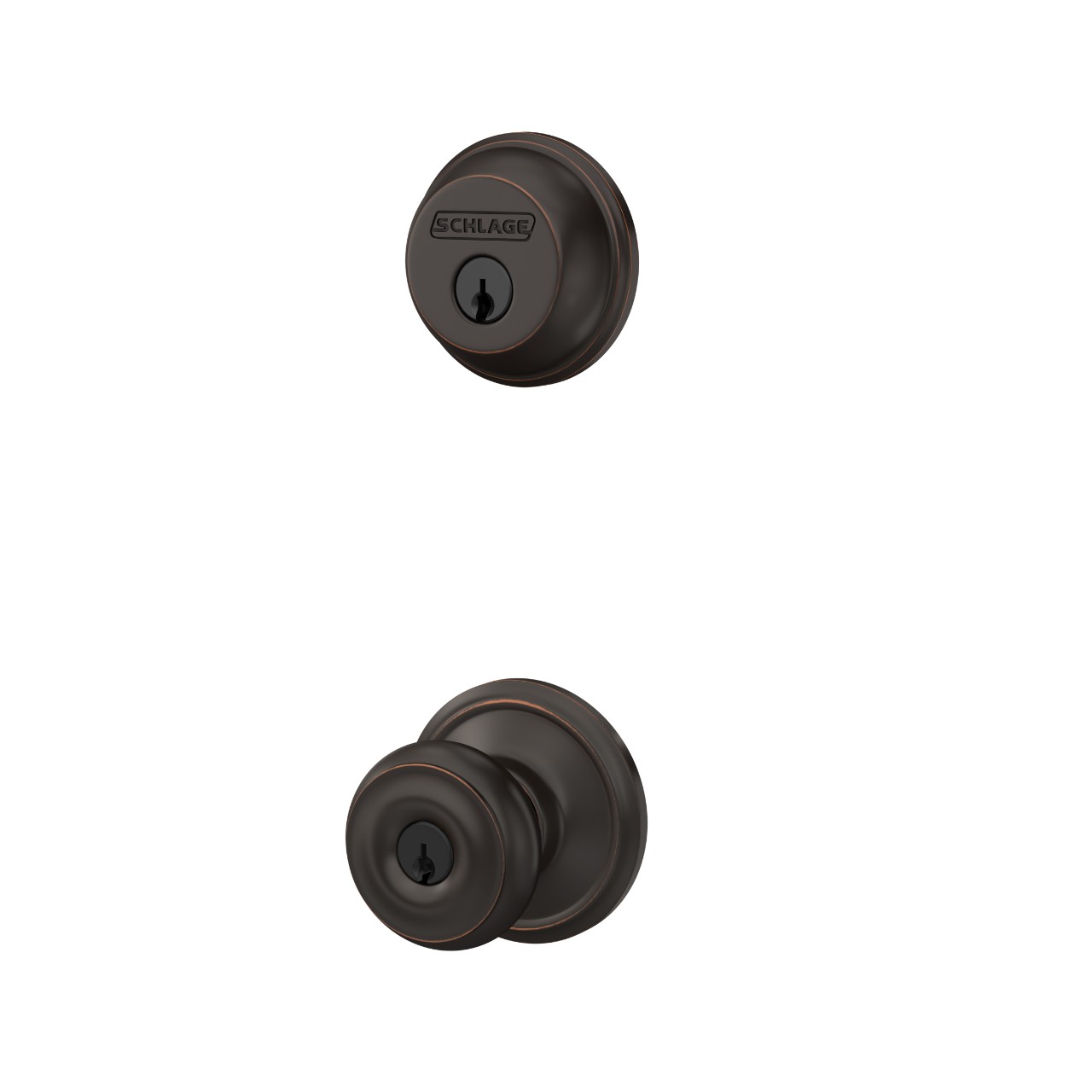

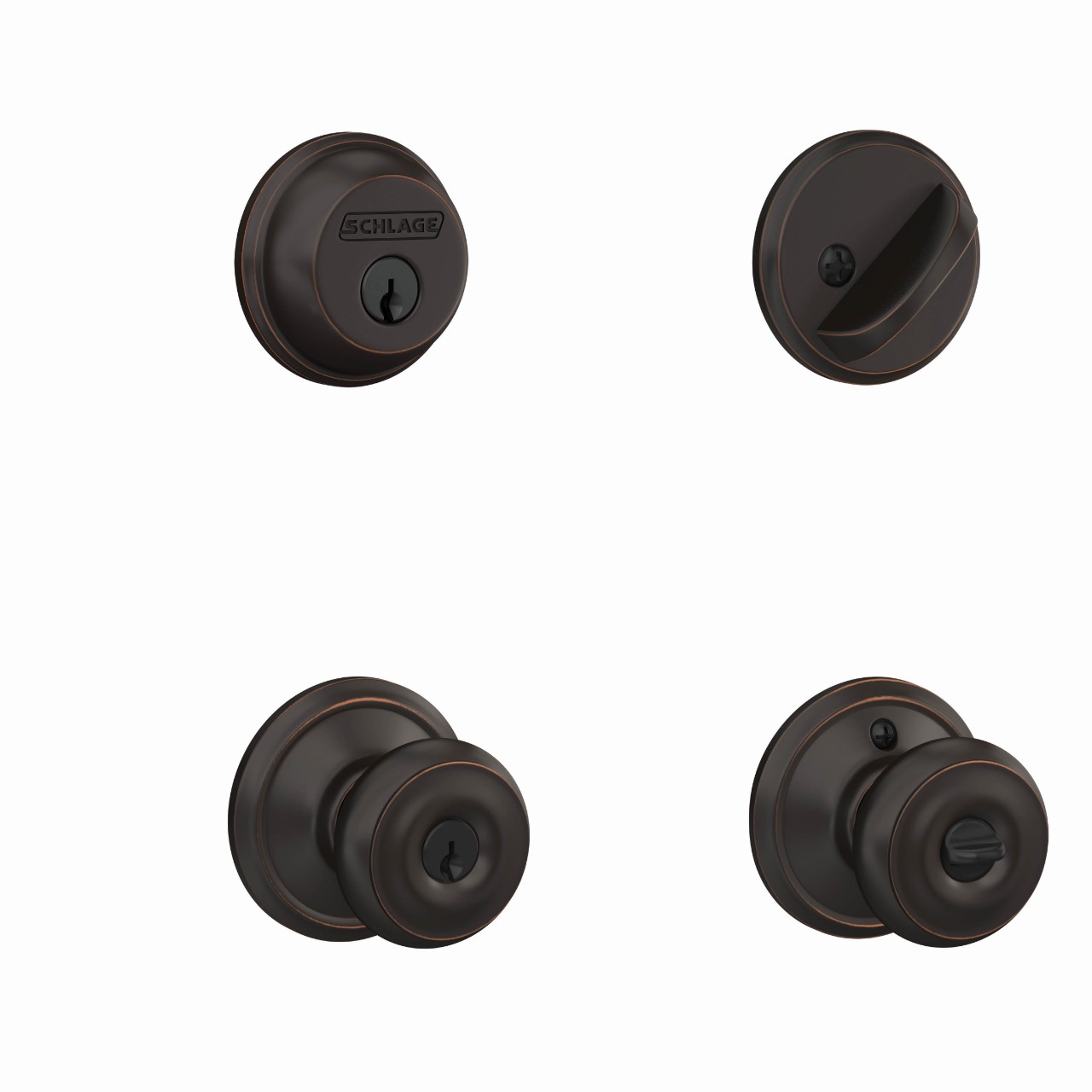

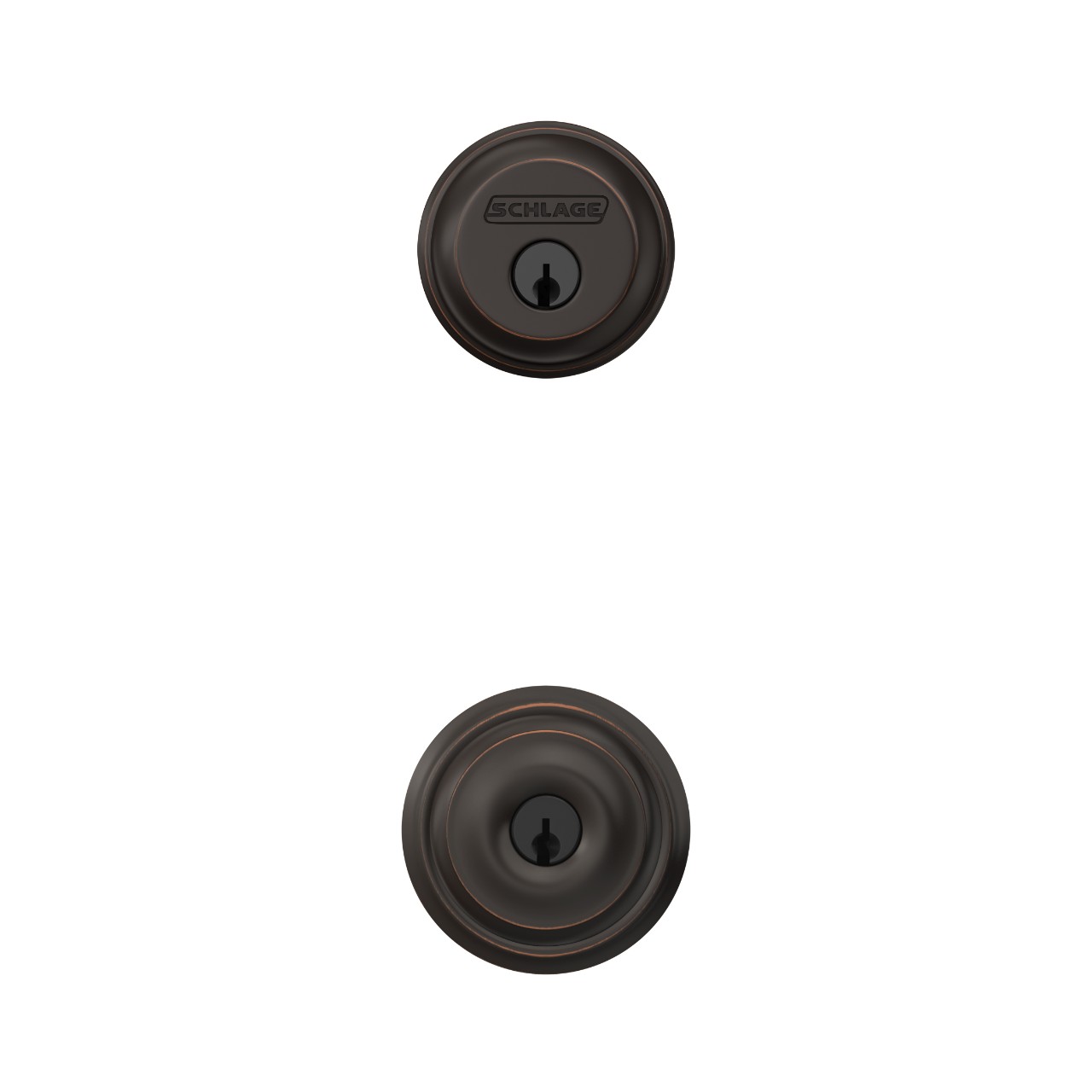

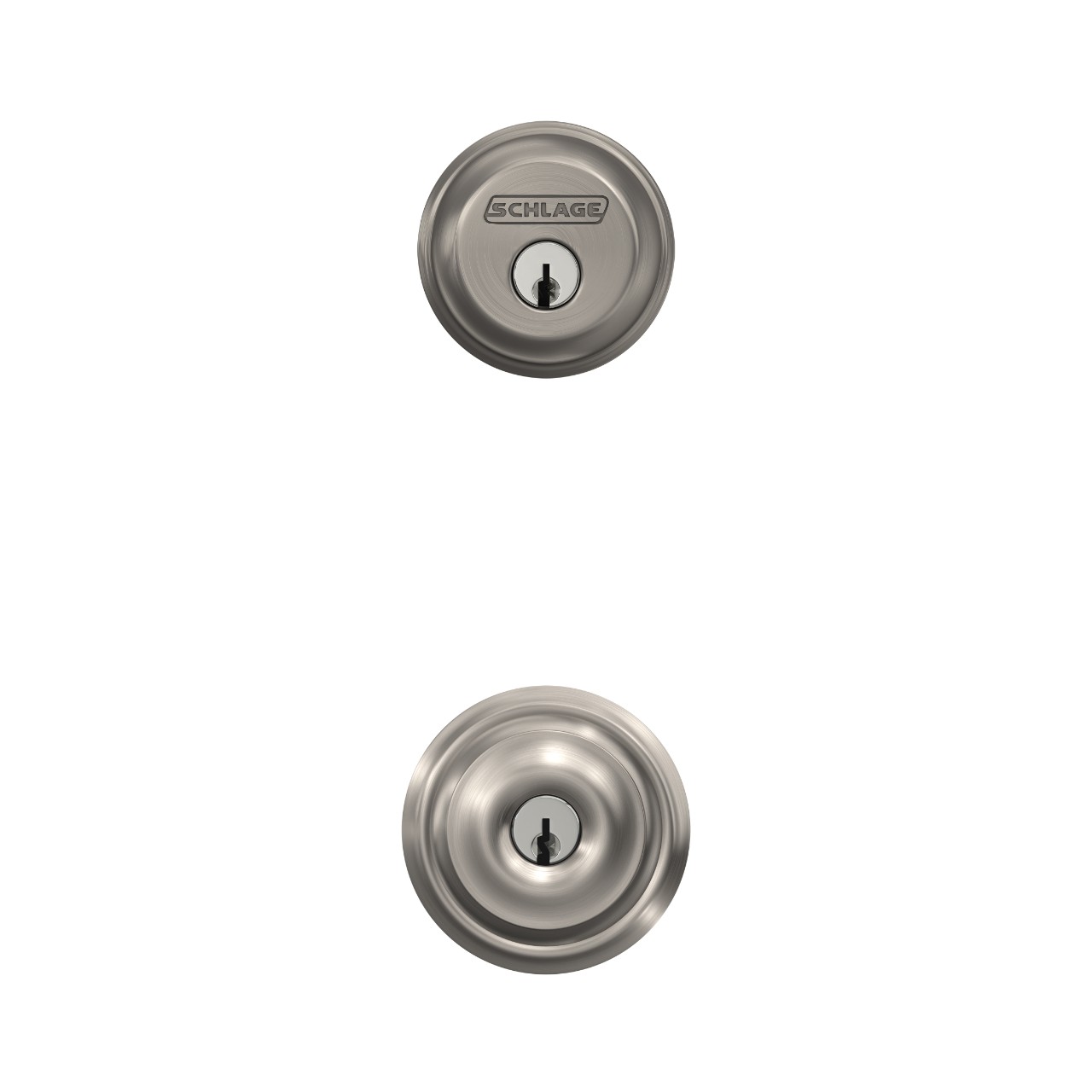

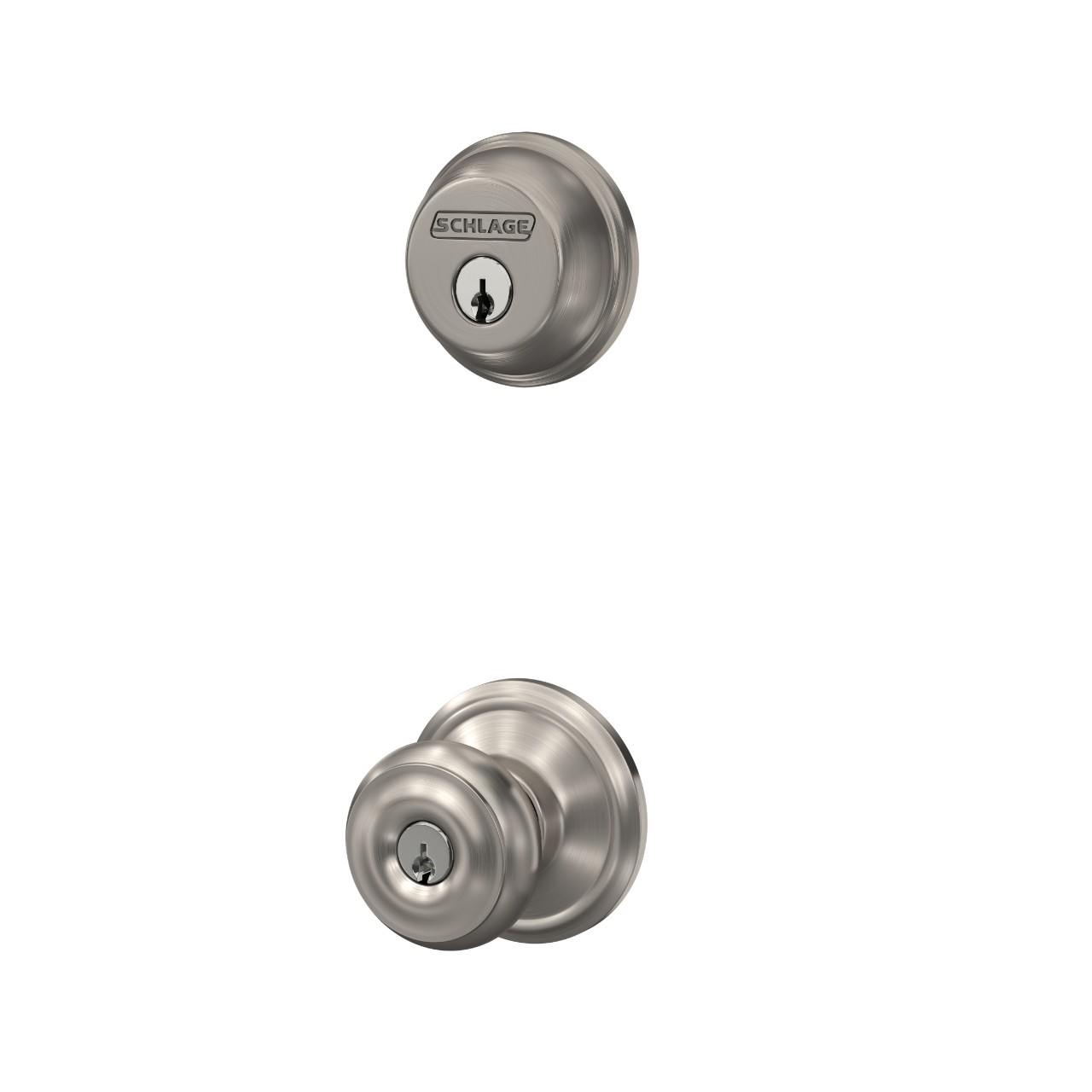

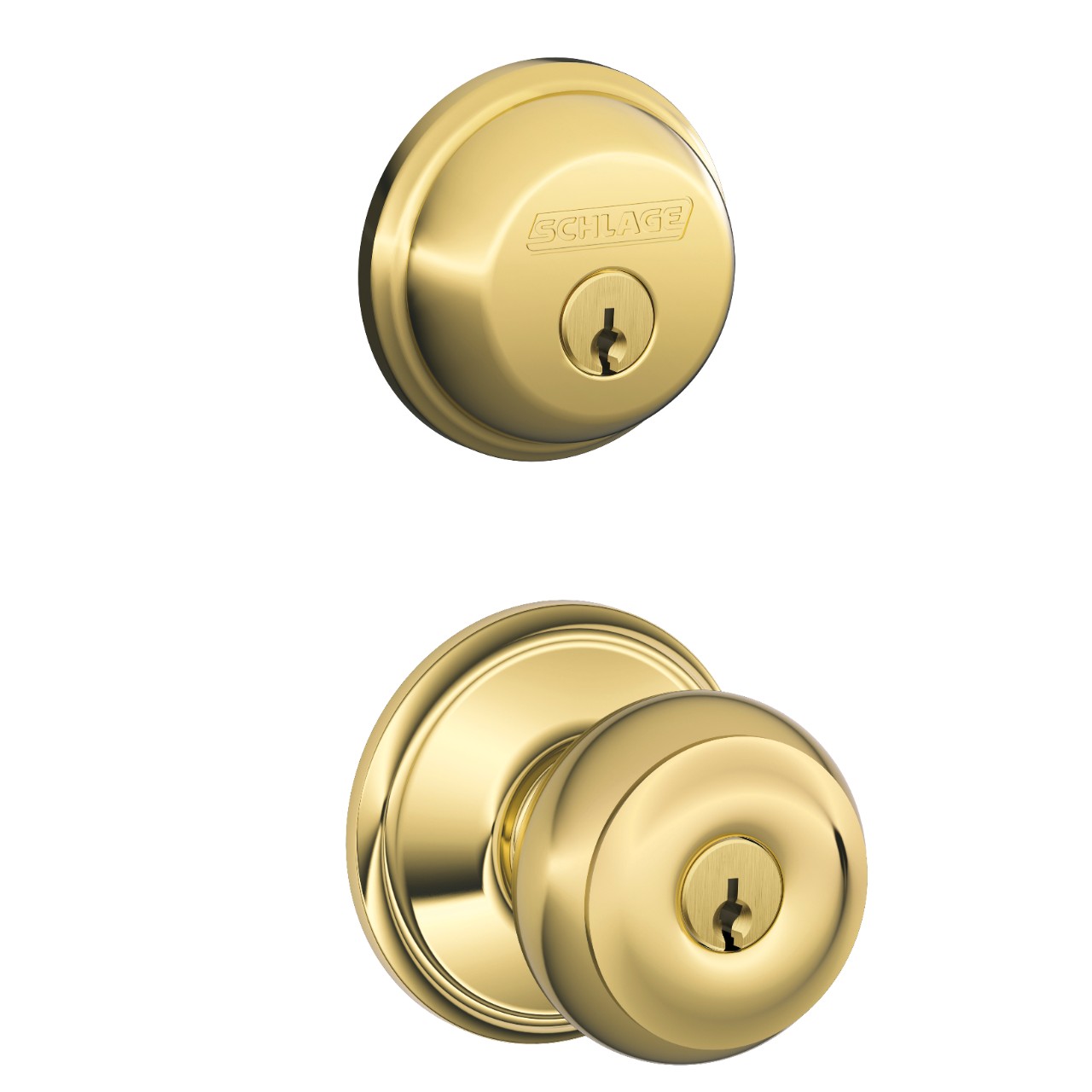

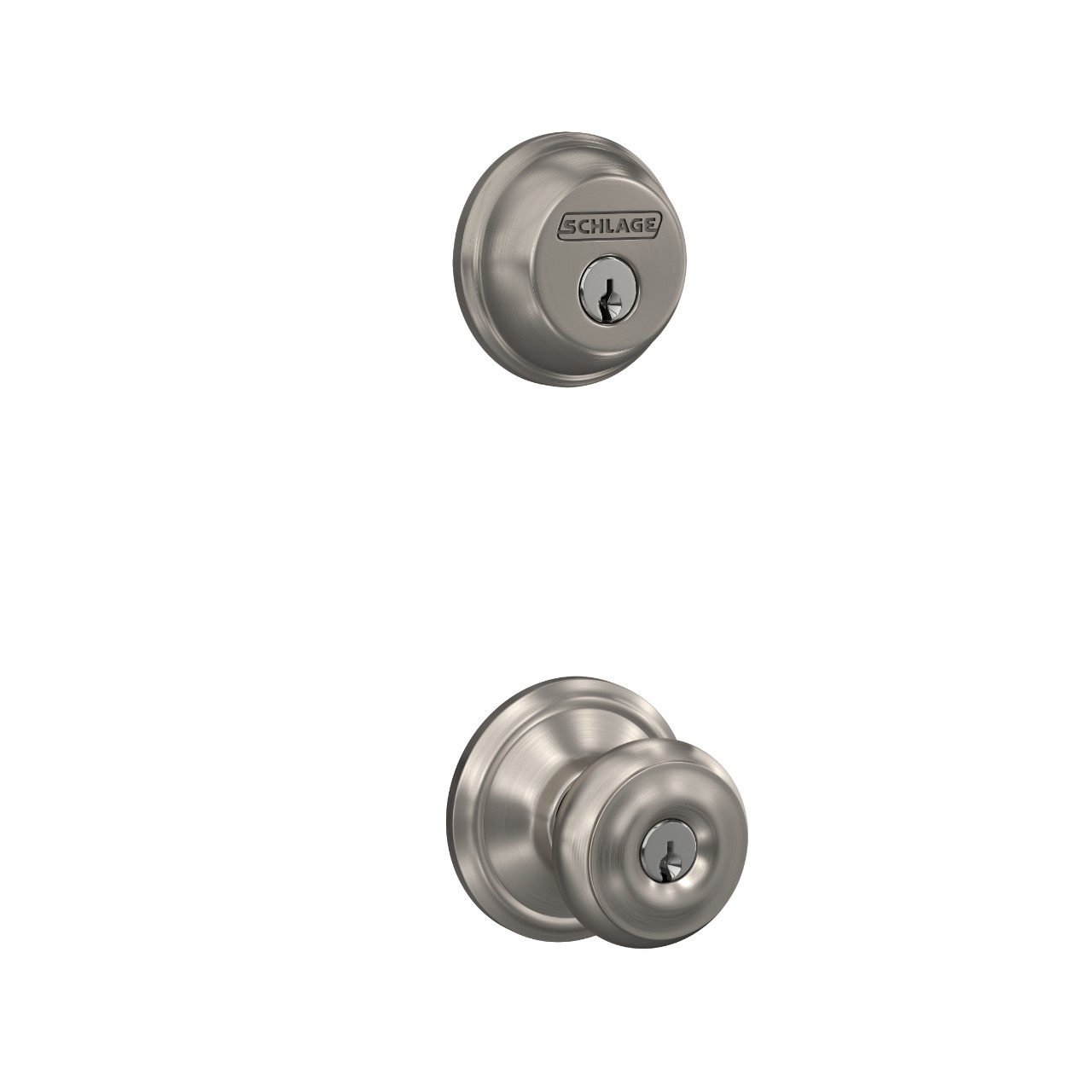

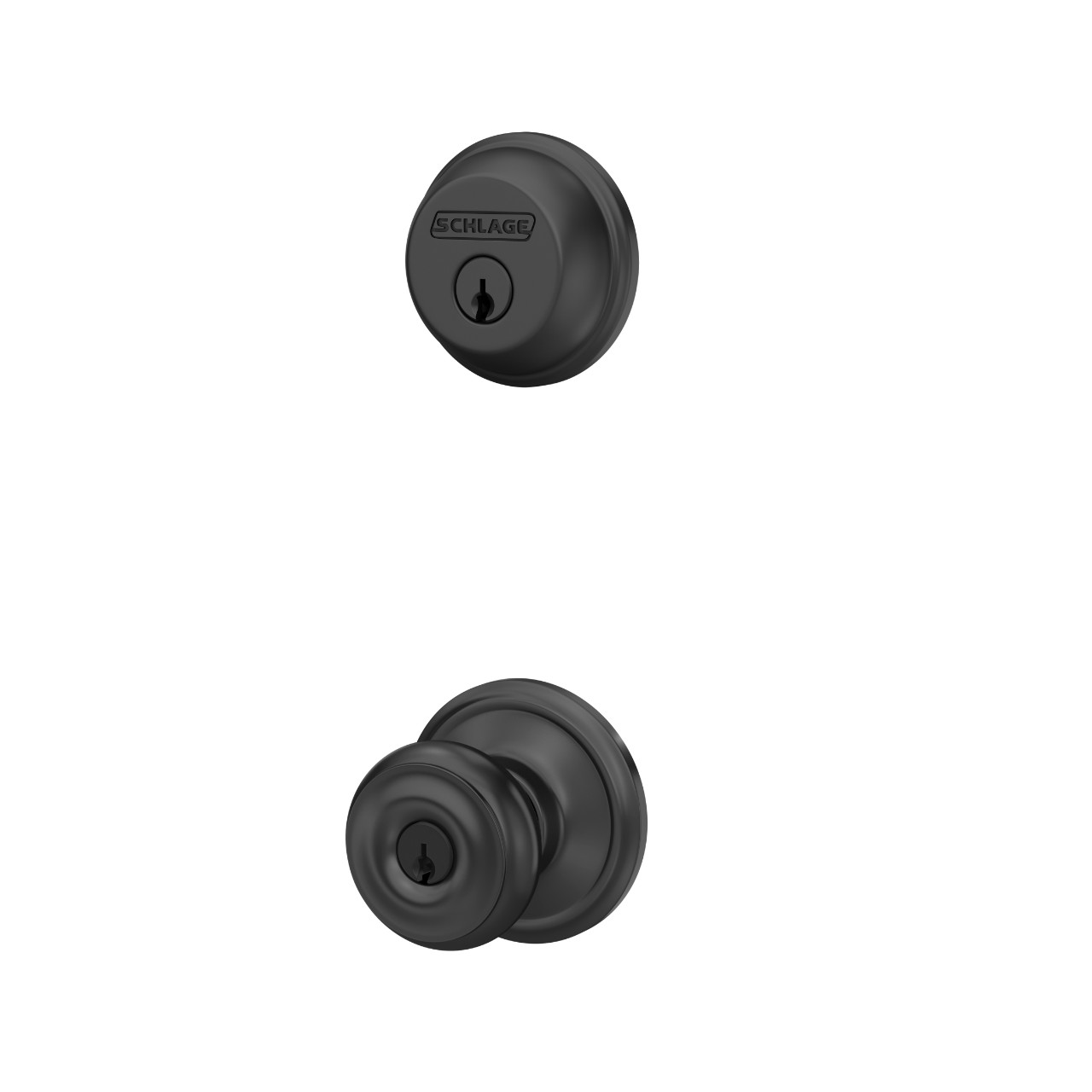

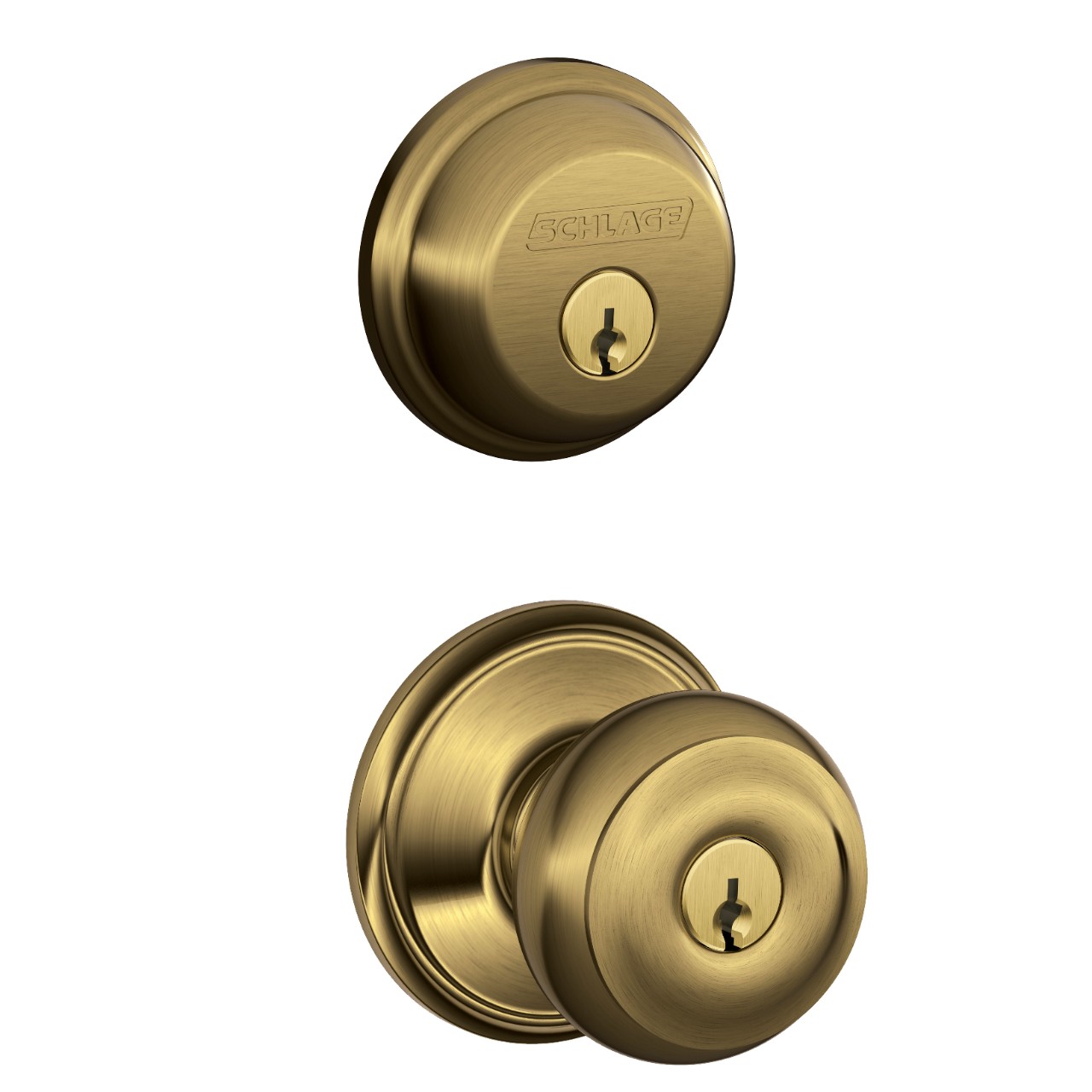

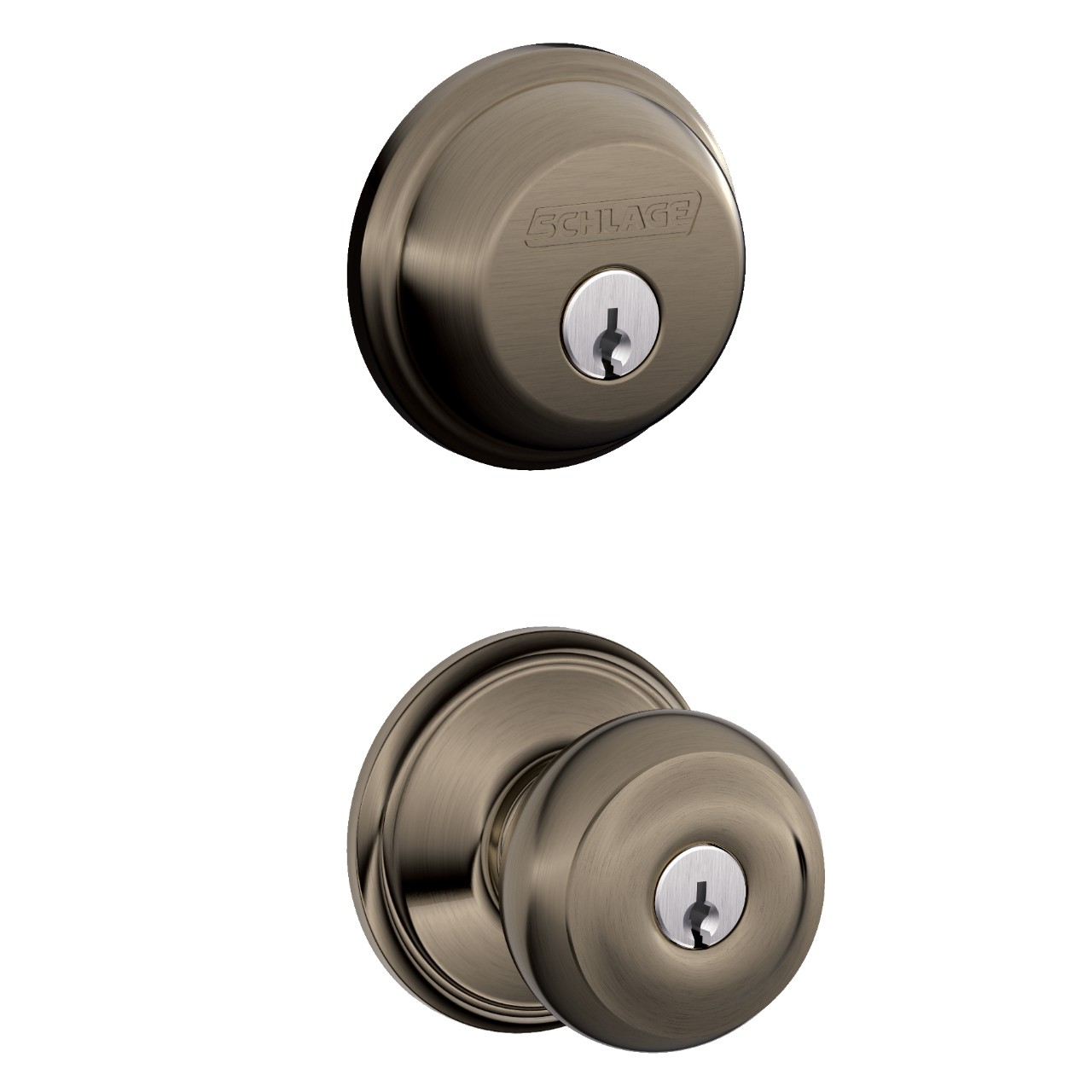

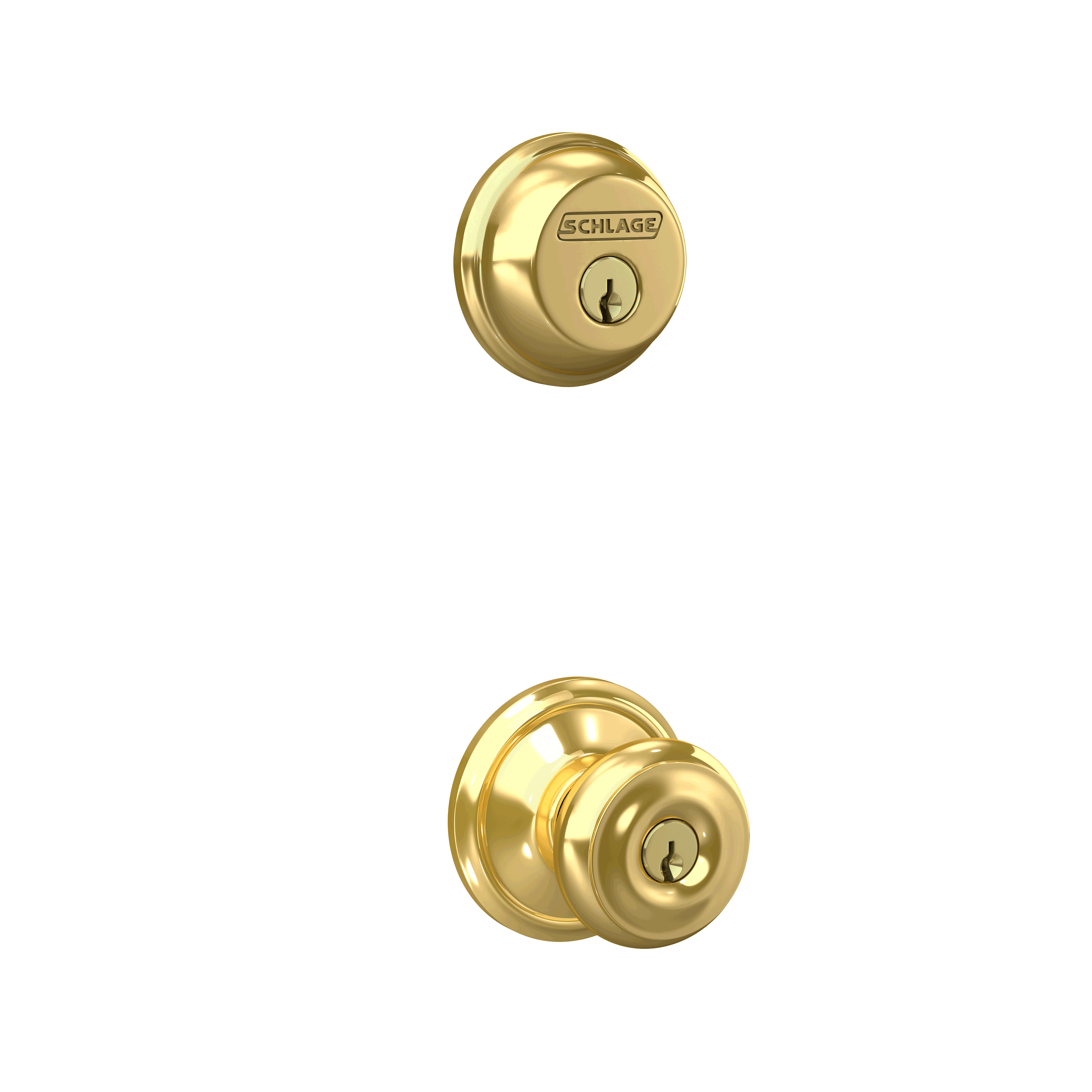

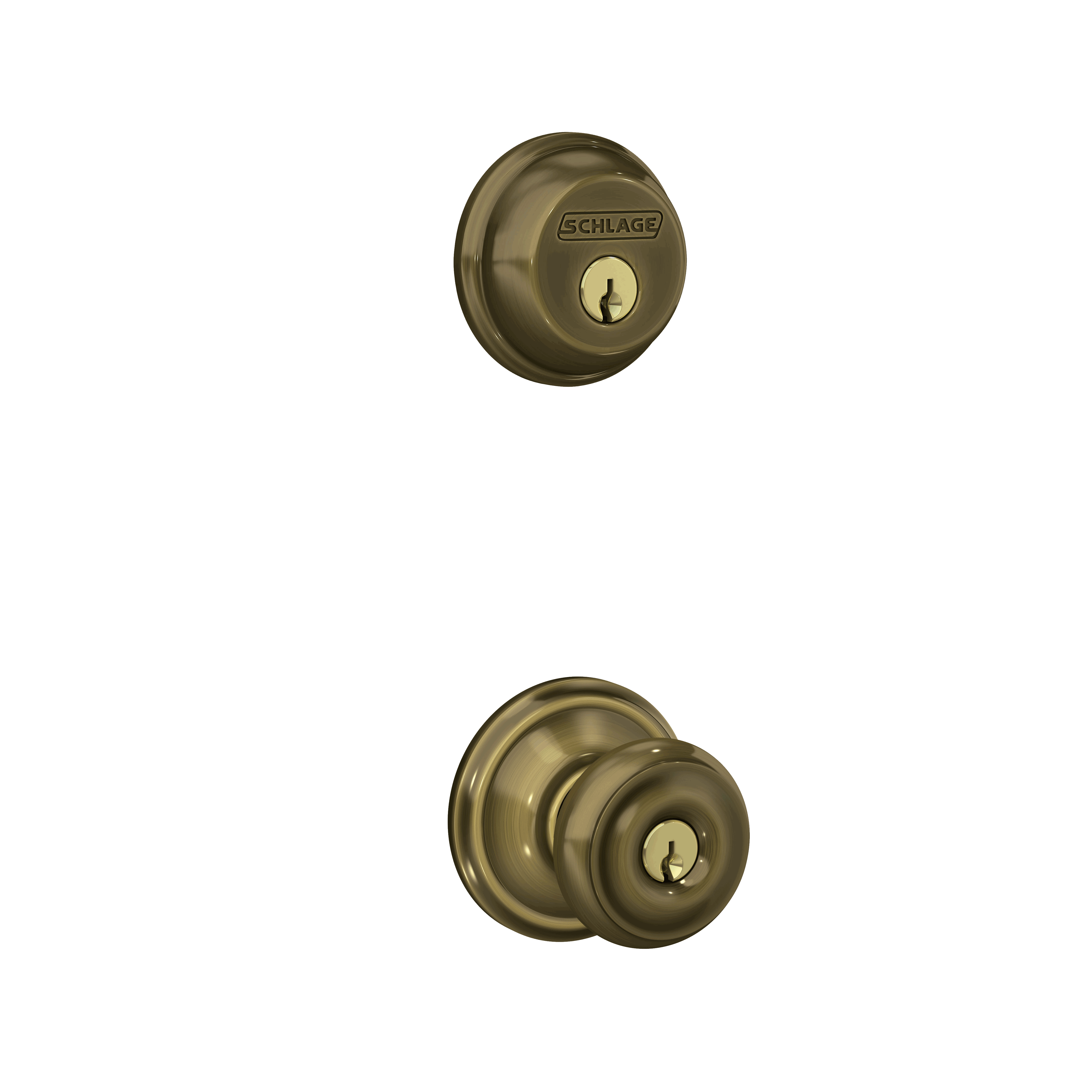

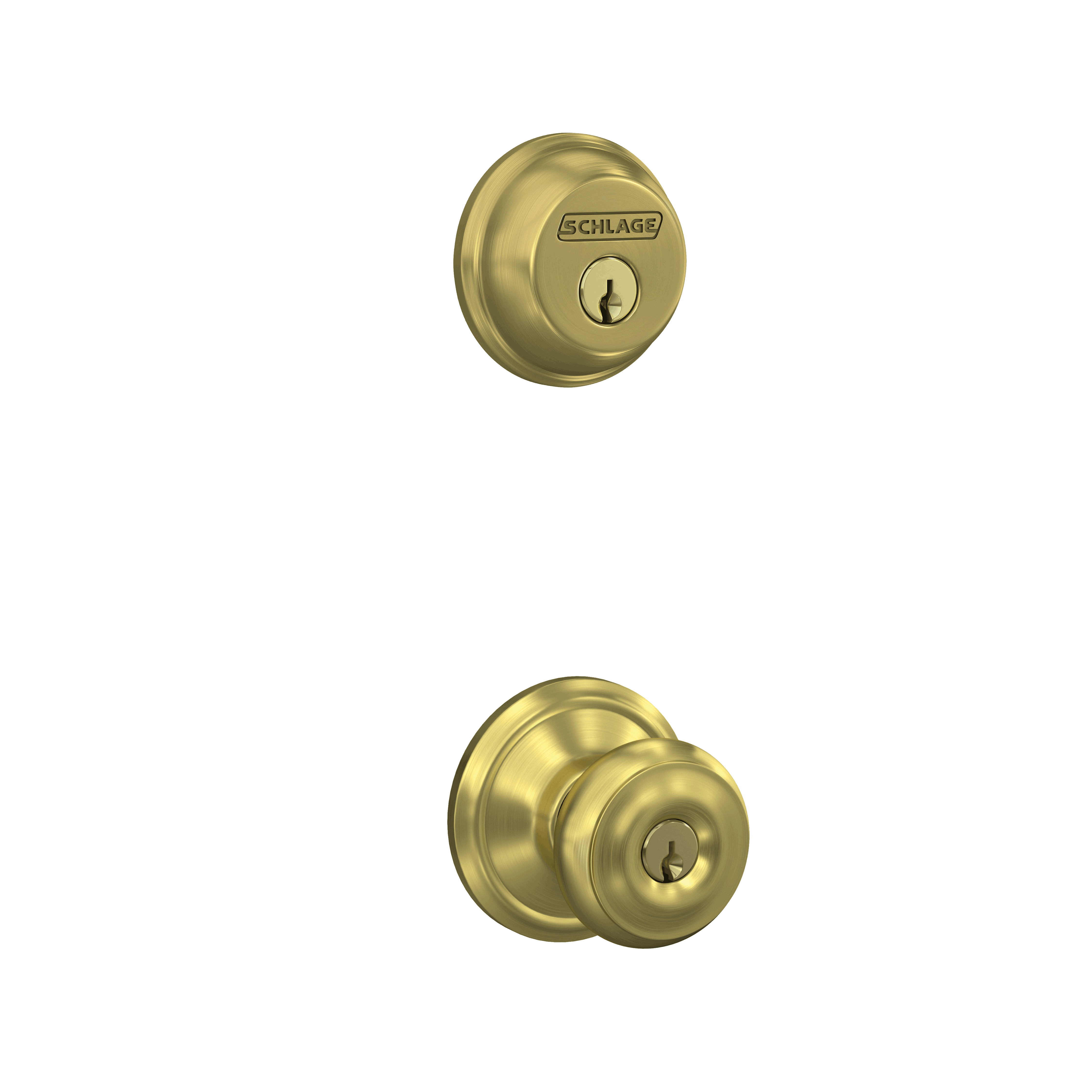

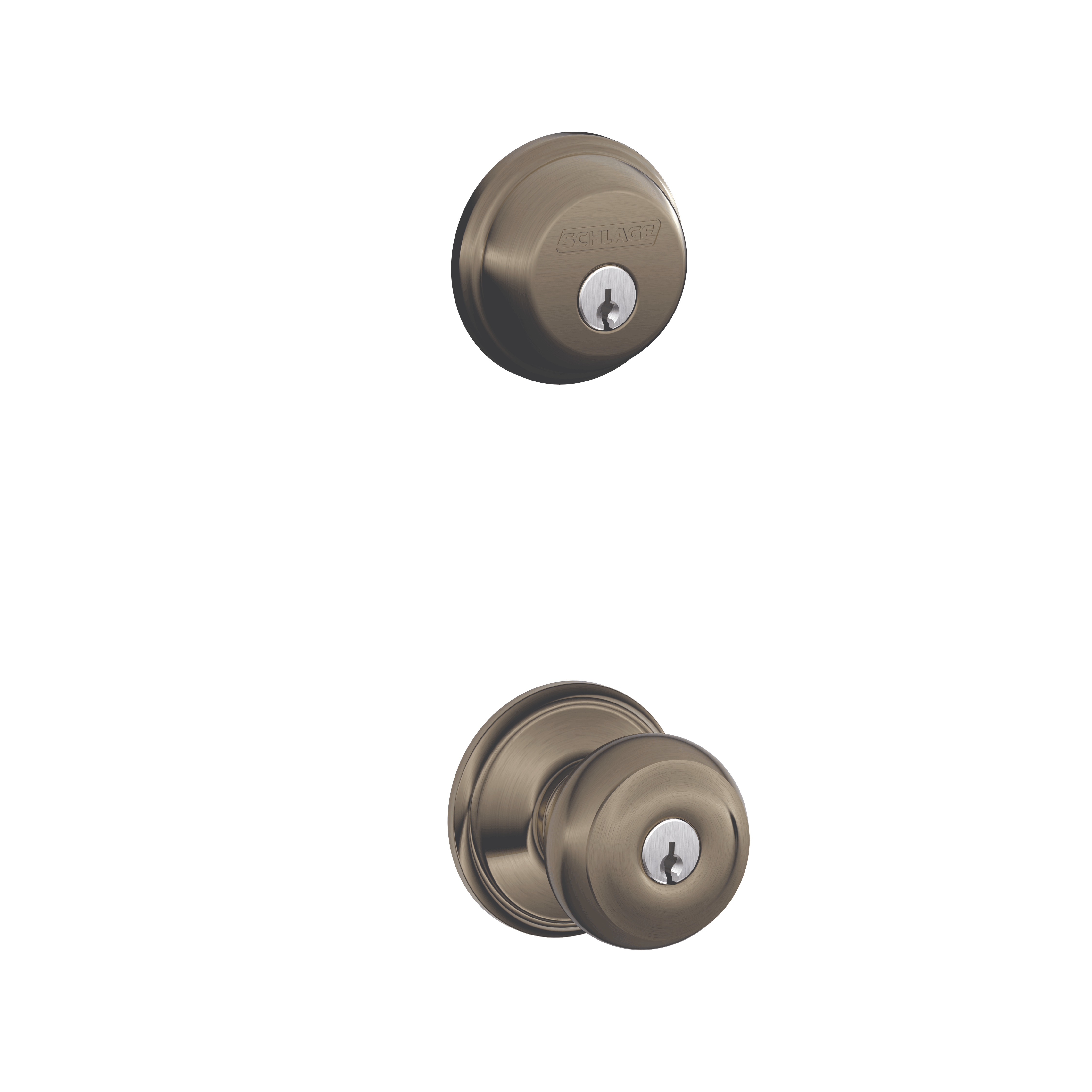

Single Cylinder Deadbolt and Georgian Knob Keyed Entry Lock

Standard |

  1. Feature
  2. Specification
  3. How-To-Center
  4. Reviews

Features

  • CERTIFIED HIGHEST SECURITY: Exceeds criteria for BHMA Grade 1 for the deadbolt and Grade 2 for the handle
  • EASY INSTALL: Self-aligning screw holes make setup easy and hassle-free; includes parts to upgrade double bore hole doors with keyed security; fits both right and left handed doors
  • IDEAL USE: Deadbolt thrown or retracted by key from outside or by inside thumbturn; perfect for use on entry doors with 2 bore holes as additional layer of security; includes lockset and 2 keys
  • A CENTURY OF TRUST: Trusted in over 40 million homes, Schlage has delivered durability and strength for over 100 years – trust your home to Schlage
  • TRUSTED WARRANTY: Schlage locks are backed by a limited lifetime mechanical and finish warranty; see Schlage warranty for full details
  • HASSLE-FREE FIT: Universal latch slides easily to fit standard doors with 2-3/8" or 2-3/4" backsets and requires no tools or manual adjustments; fits door thickness 1-3/8" to 1-3/4"; includes both radius and drive-in faceplate for flexibility
  • Learn more about grading.

Specifications

Keying5-pin tumbler C keyway standard
ADA CompliantNo
UL ListedLocks for up to three-hour fire doors available
WarrantyLimited Lifetime Mechanical and Finish Warranty
ApplicationsResidential single- and multi-family doors
Backset (in)Universal Backset Adjusts to 2-3/8" (60mm) or 2-3/4" (70mm)
Door Thickness1-3/8" (35 mm) to 1-3/4" (44 mm)
Certifications ANSI/BHMA A156.39-2015 Grade AAA in Security, Durability and Finish (knob); ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish (deadbolt)
ANSI/BHMA A156.2-2011 Grade 2 (knob), ANSI/BHMA A156.36-2010 Grade 1 (deadbolt)
