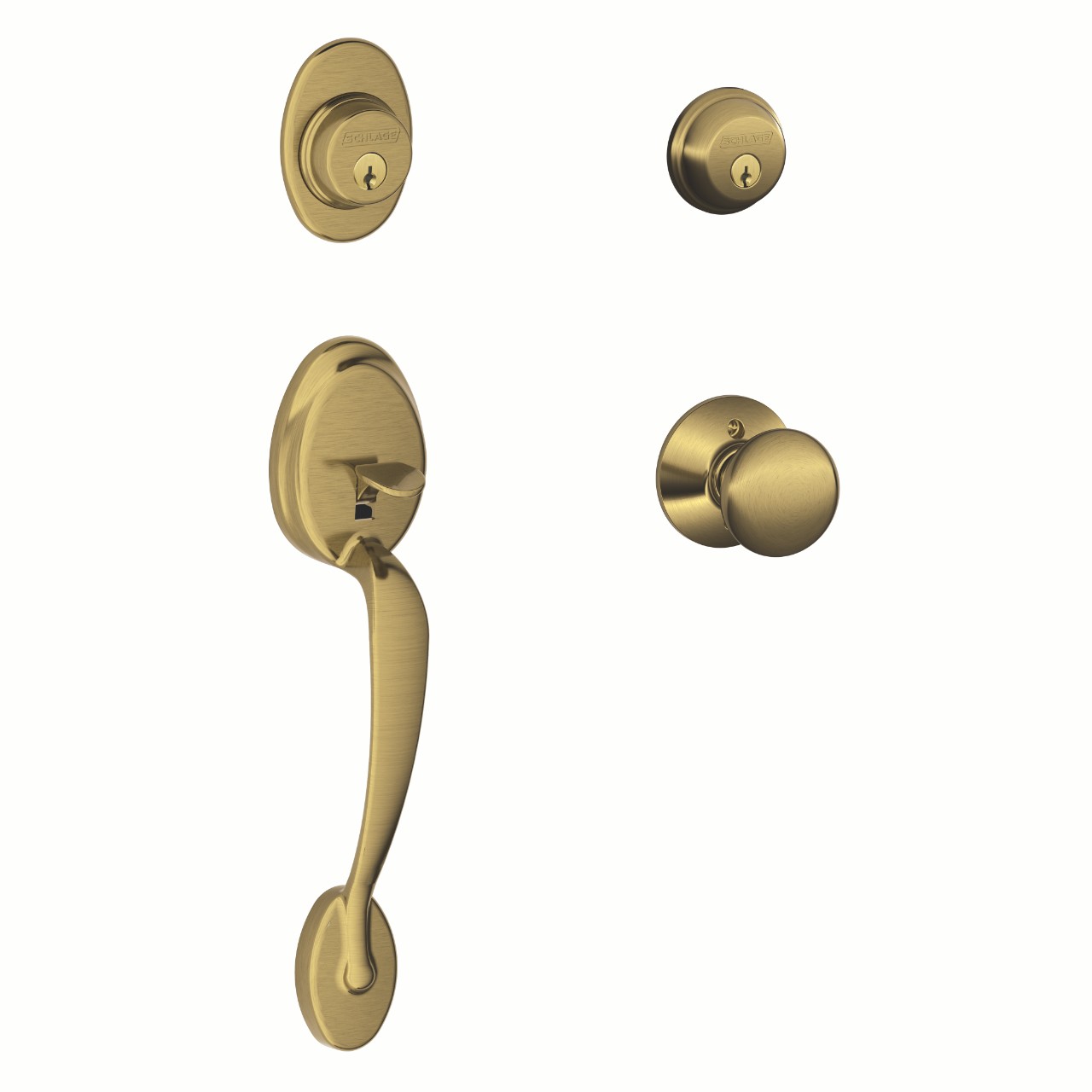

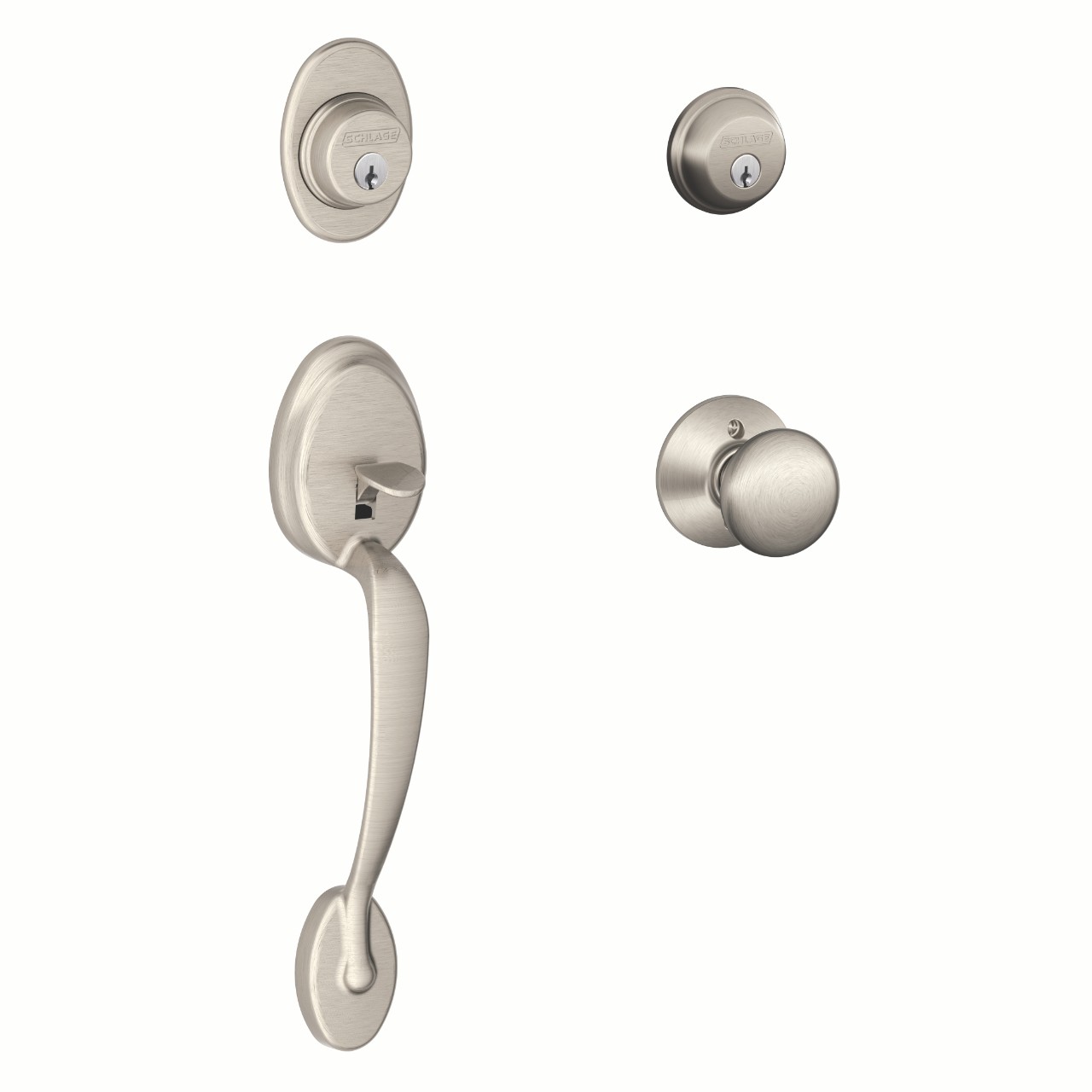

Plymouth Double Cylinder Handleset and Plymouth Knob

F62 PLY 505 PLY

Lifetime limited mechanical and finish warranty



One-Tool Installation - Installs with just a Phillips screwdriver



Patented throughbolt slides up and down so you don't have to patch/redrill your door



Certified Commercial Grade 1



Graded Best in Residential Security, Durability, and Finish

Learn more about grading.



Applications: Residential single and multi-family entrance doors.



Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.



Certifications:

Commercial Standard Certification:ANSI/BHMA A156.36-2010



Residential Standard Certification:ANSI/BHMA A156.40-2015



Door thickness range: 1-5/8" to 2" thick (41mm-51mm) standard. Thick door kit available.



Inside Trim: Levers are zinc-based plated to match finishes indicated.



Keying: FA Series handlesets are 5-pin tumbler with two keys per lock. F-Series handlesets are 6-pin tumbler with two keys per lock.



Outside Trim: Handlesets are solid forged brass; wrought brass trim rings with concealed security inserts.



Trim Rings and Security Inserts: F-Series and FA-Series handlesets are furnished with 7/8 wrought brass cylinder trim rings. The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit.



In accordance with California PROP65 -

WARNING

WARNING: Cancer & Reproductive Harm www.P65Warnings.ca.gov
