Addison Single Cylinder Handleset and Plymouth Knob

Addison Single Cylinder Handleset and Plymouth Knob

F60 ADD 609 PLY
Pinterest Houzz
Tap to enlarge

Use with 1-1/2 in. to 1-7/8 in. door (38mm-48mm)



Knob design pairs well with traditional and transitional styles like colorful vases and patterned pillows



For more than 95 years, Schlage has offered durable door hardware in a range of unique style combinations to express any personality



Latch retracted by thumbpiece from outside or by inside knob/lever



Lifetime finish and mechanical guarantee



Easy installation with Phillips screwdriver



Self-aligning screw holes make installation easy and hassle-free



Universal latches slide easily into place and require no tools or manual adjustments



Certified Commercial Grade 1



Graded Best in Residential Security, Durability, and Finish

Learn more about grading.



Applications: Residential single and multi-family entrance doors



Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.



Certifications:

Commercial Standard Certification:ANSI/BHMA A156.36 Commercial Grade 1



Residential Standard Certification:ANSI/BHMA A156.40 Residential Grade AAA



Door thickness range: Door thickness range: Door thickness range: 1-1/2 in. to 1-7/8 in. (38mm-48mm) standard. Thick door kit available for thickness up to 2-1/4in.



Inside Trim: Levers are zinc-based plated to match finishes indicated.



Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.



Outside Trim: Handlesets are solid cast zinc.



Trim Rings and Security Inserts: F-Series handlesets are furnished with 7/8" wrought brass cylinder trim rings. The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit.



Warranty: Limited Lifetime Mechanical and Finish Warranty

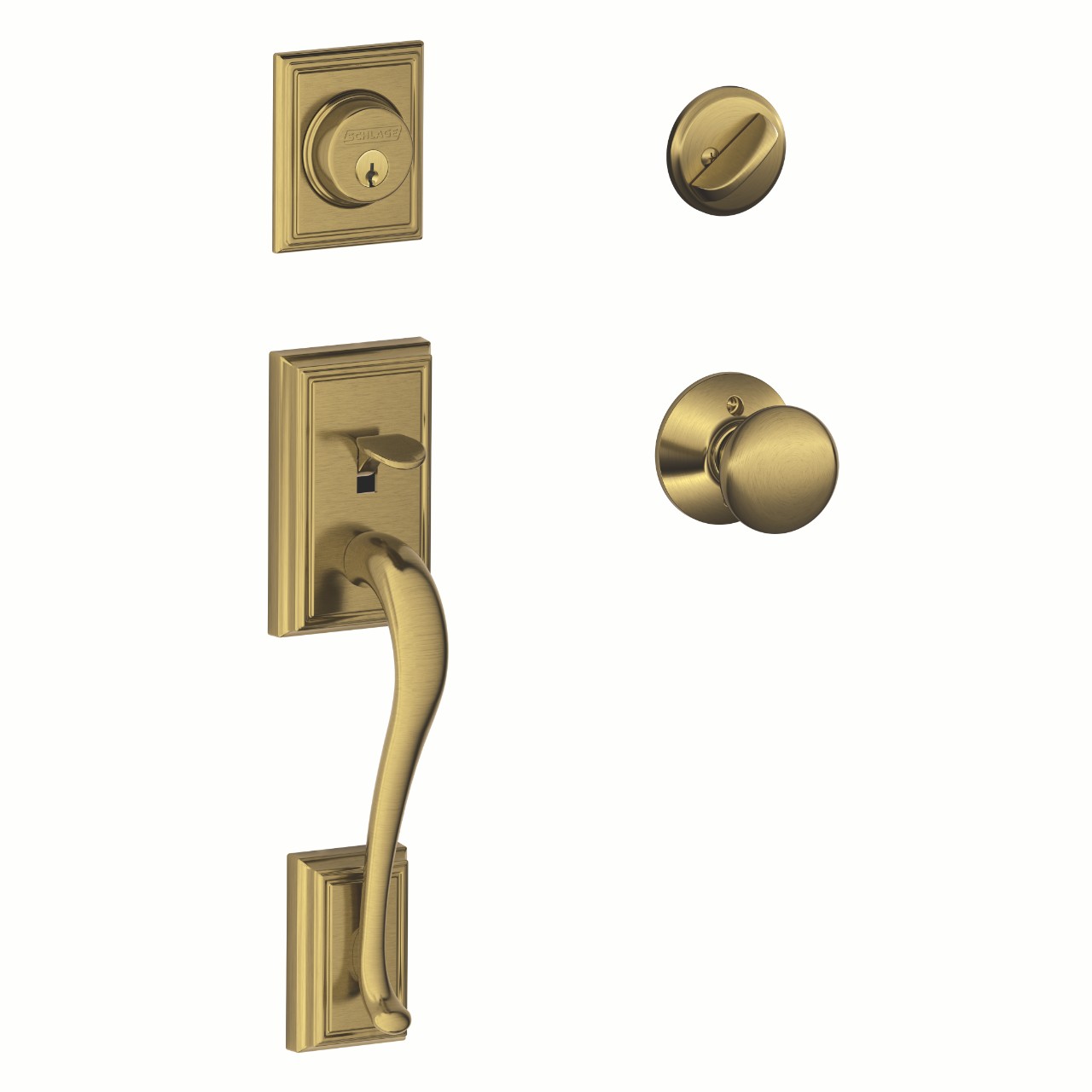

Addison Single Cylinder Handleset and Plymouth Knob

F60 ADD 609 PLY
Finish:Antique Brass

Use with 1-1/2 in. to 1-7/8 in. door (38mm-48mm)



Knob design pairs well with traditional and transitional styles like colorful vases and patterned pillows



For more than 95 years, Schlage has offered durable door hardware in a range of unique style combinations to express any personality



Latch retracted by thumbpiece from outside or by inside knob/lever



Lifetime finish and mechanical guarantee



Easy installation with Phillips screwdriver



Self-aligning screw holes make installation easy and hassle-free



Universal latches slide easily into place and require no tools or manual adjustments



Certified Commercial Grade 1



Graded Best in Residential Security, Durability, and Finish

Learn more about grading.



Applications: Residential single and multi-family entrance doors



Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets.



Certifications:

Commercial Standard Certification:ANSI/BHMA A156.36 Commercial Grade 1



Residential Standard Certification:ANSI/BHMA A156.40 Residential Grade AAA



Door thickness range: Door thickness range: Door thickness range: 1-1/2 in. to 1-7/8 in. (38mm-48mm) standard. Thick door kit available for thickness up to 2-1/4in.



Inside Trim: Levers are zinc-based plated to match finishes indicated.



Keying: F-Series handlesets are 5-pin tumbler with two keys per lock.



Outside Trim: Handlesets are solid cast zinc.



Trim Rings and Security Inserts: F-Series handlesets are furnished with 7/8" wrought brass cylinder trim rings. The cylinder trim rings are reinforced by a tapered die-cast security insert installed under the trim ring for resistance to wrenching or prying the cylinder unit.



Warranty: Limited Lifetime Mechanical and Finish Warranty
