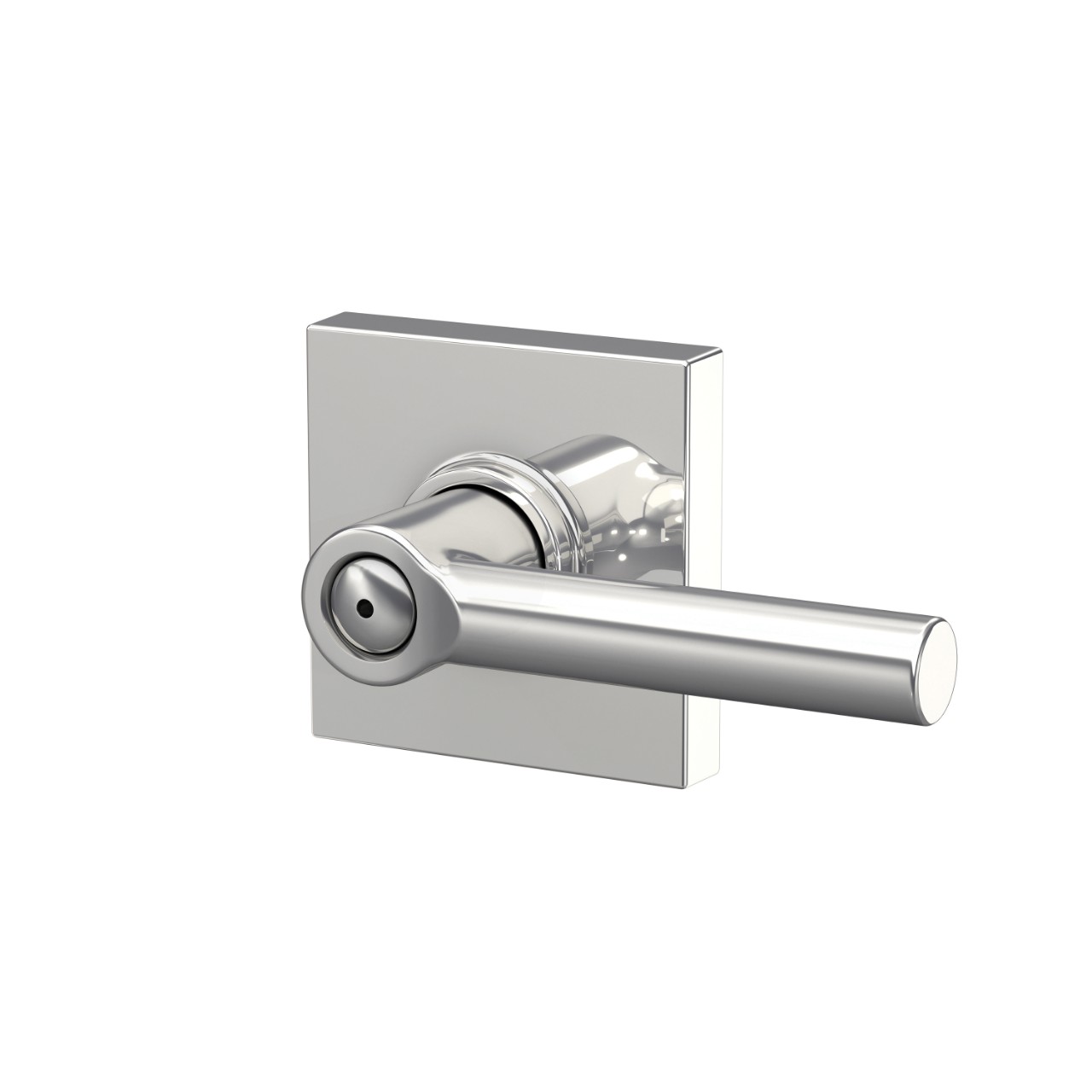

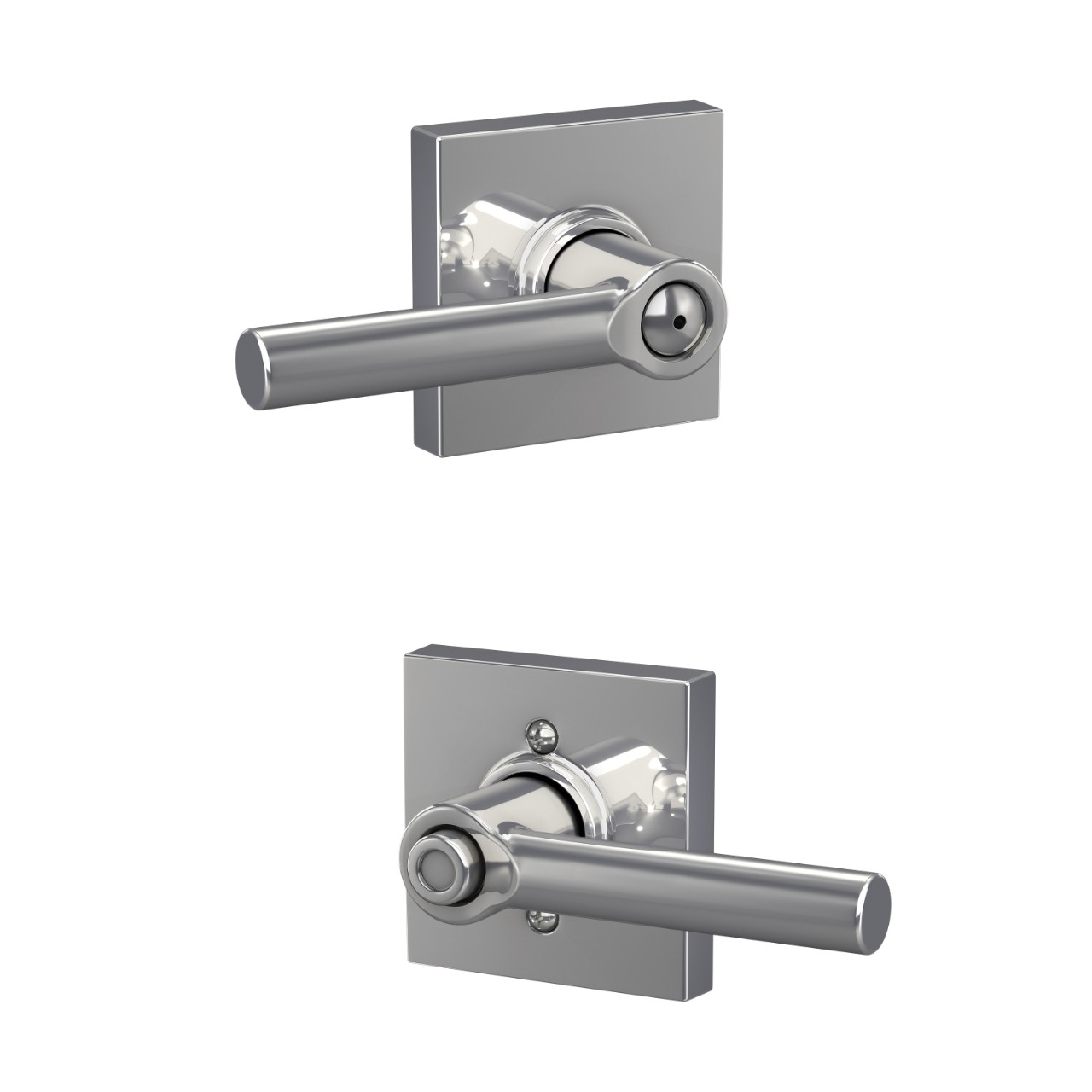

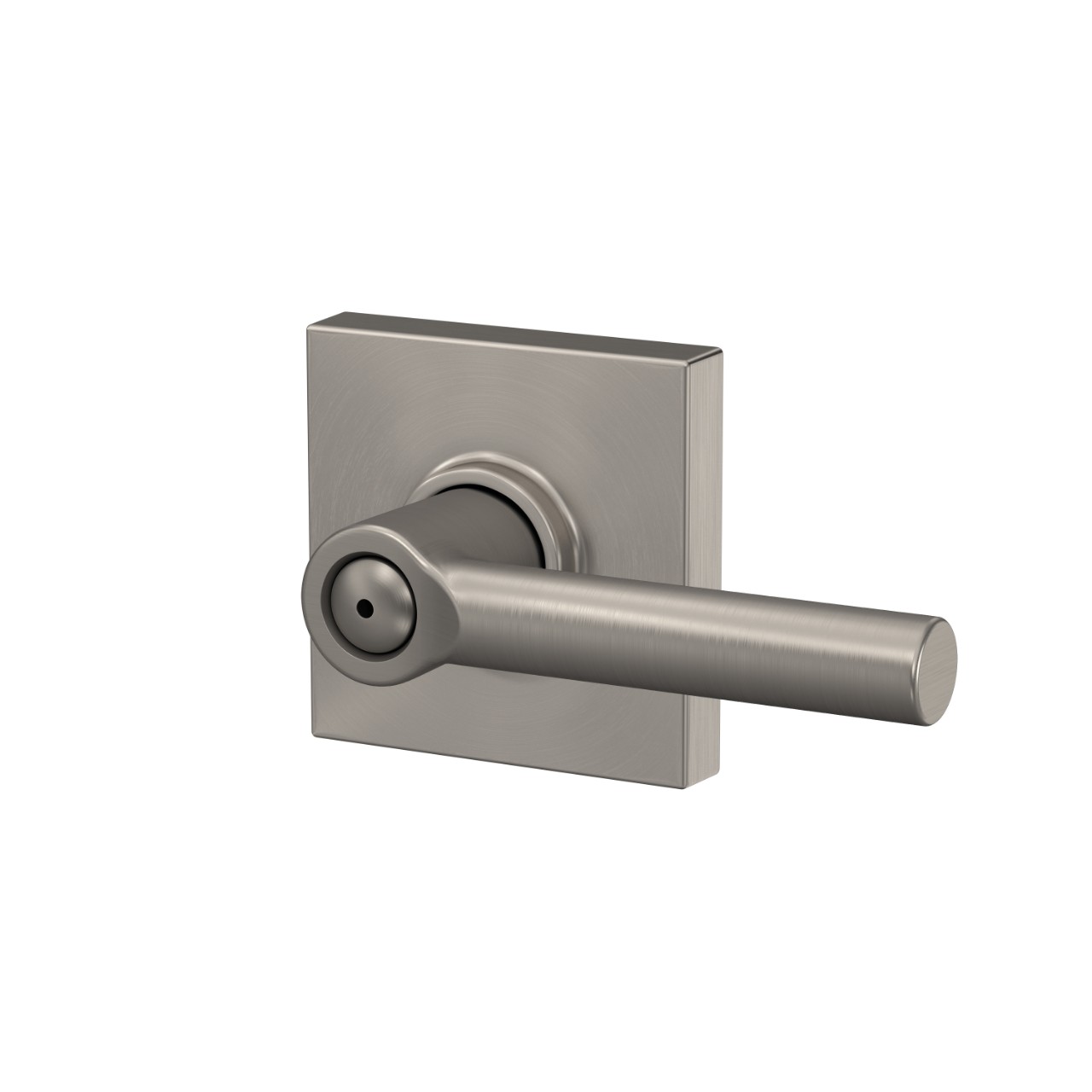

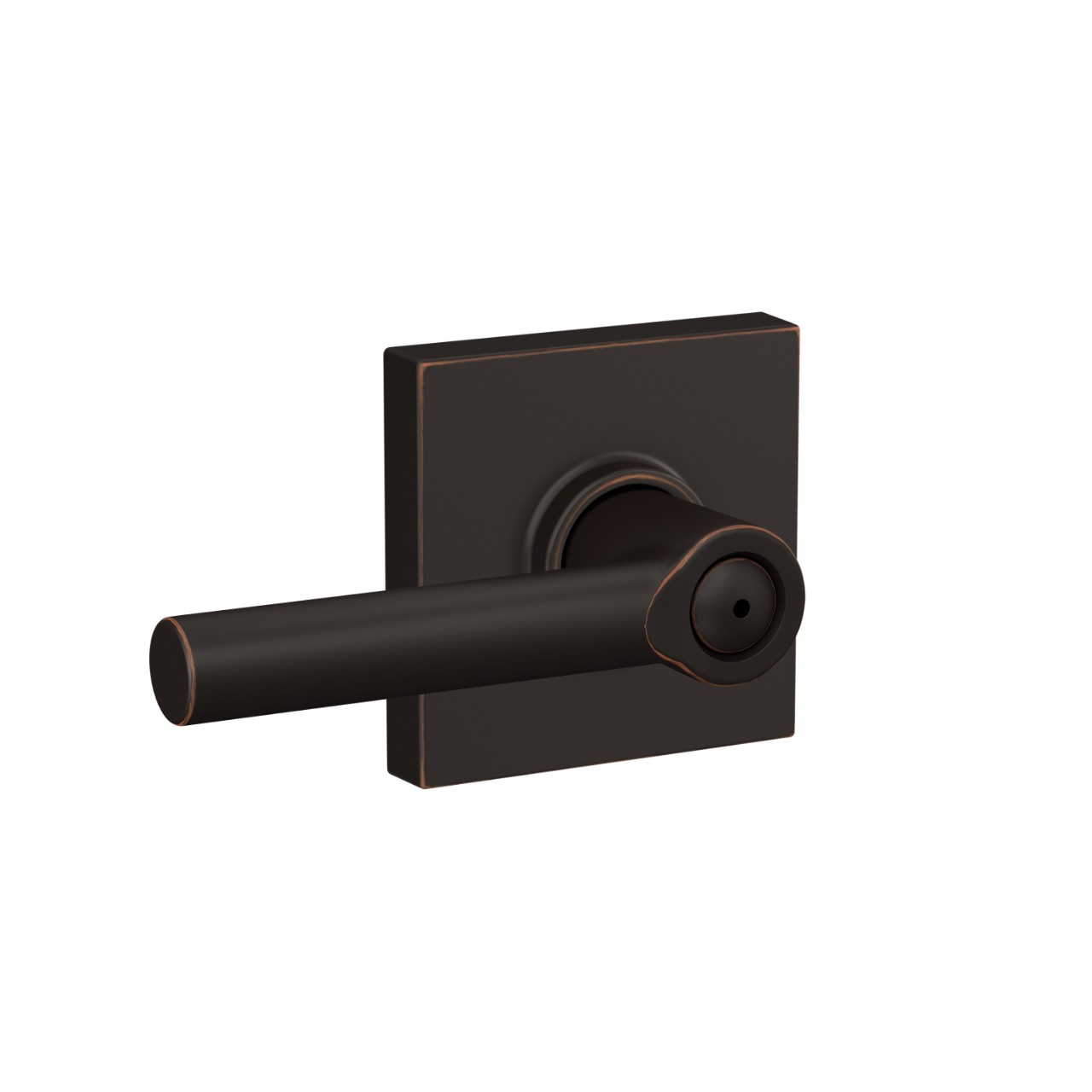

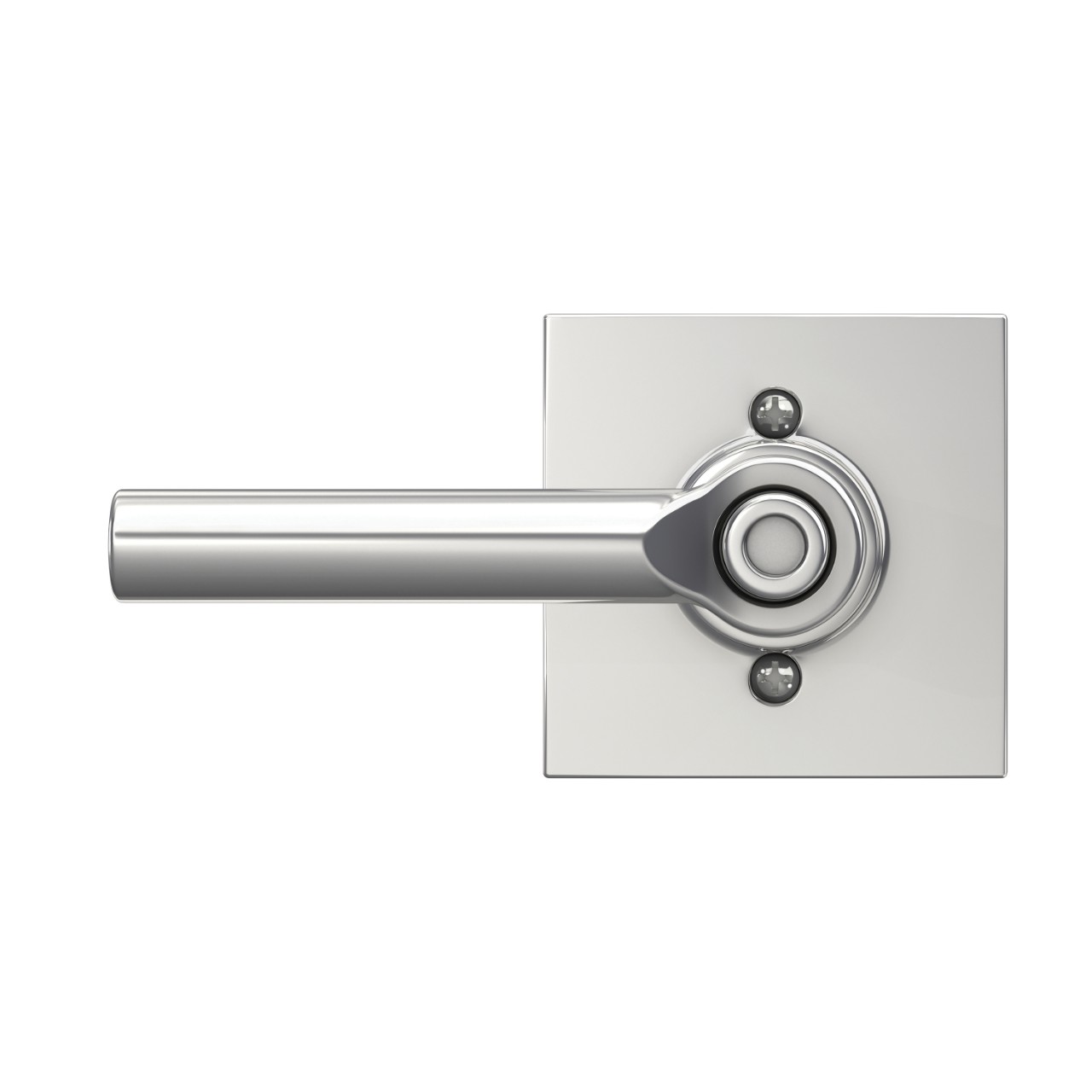

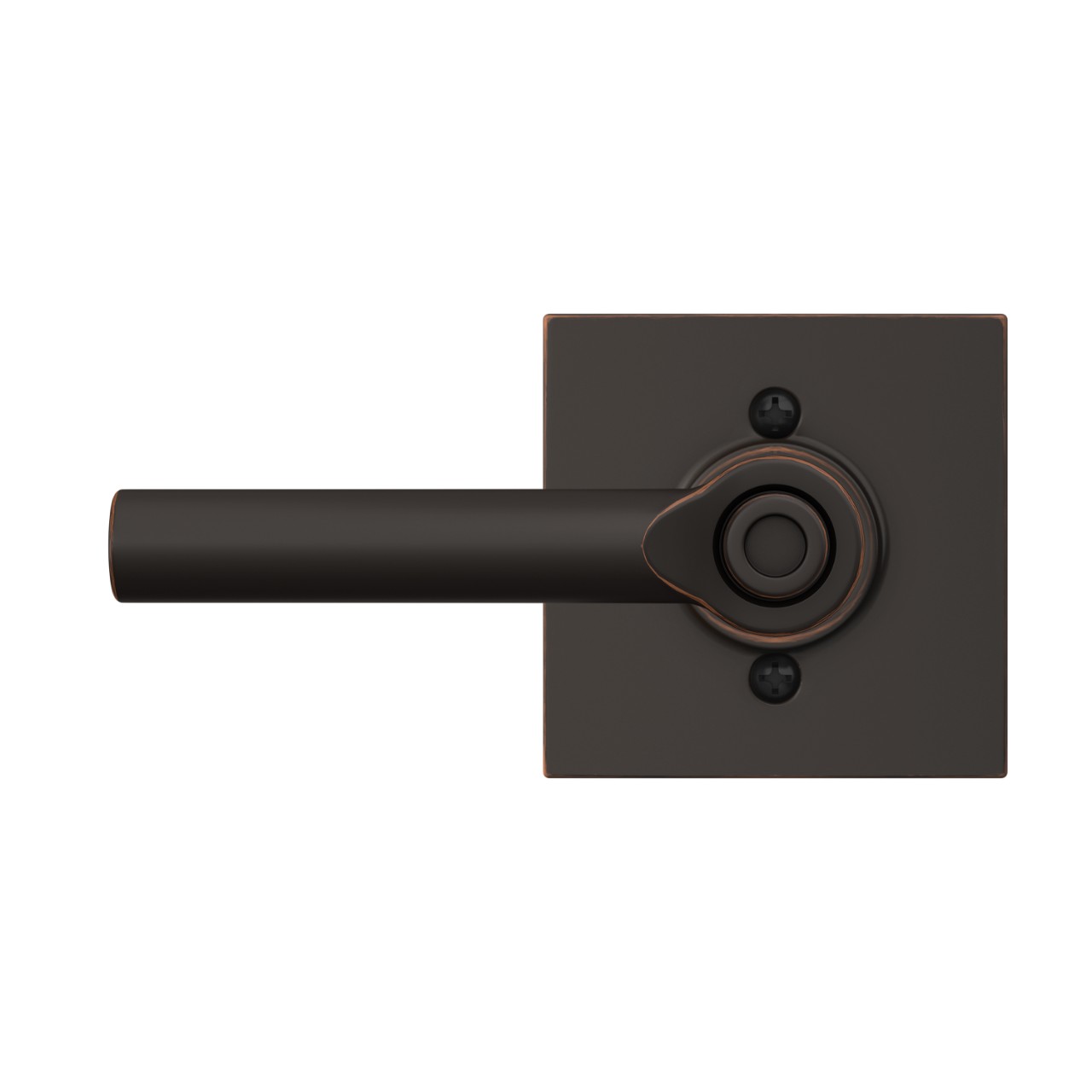

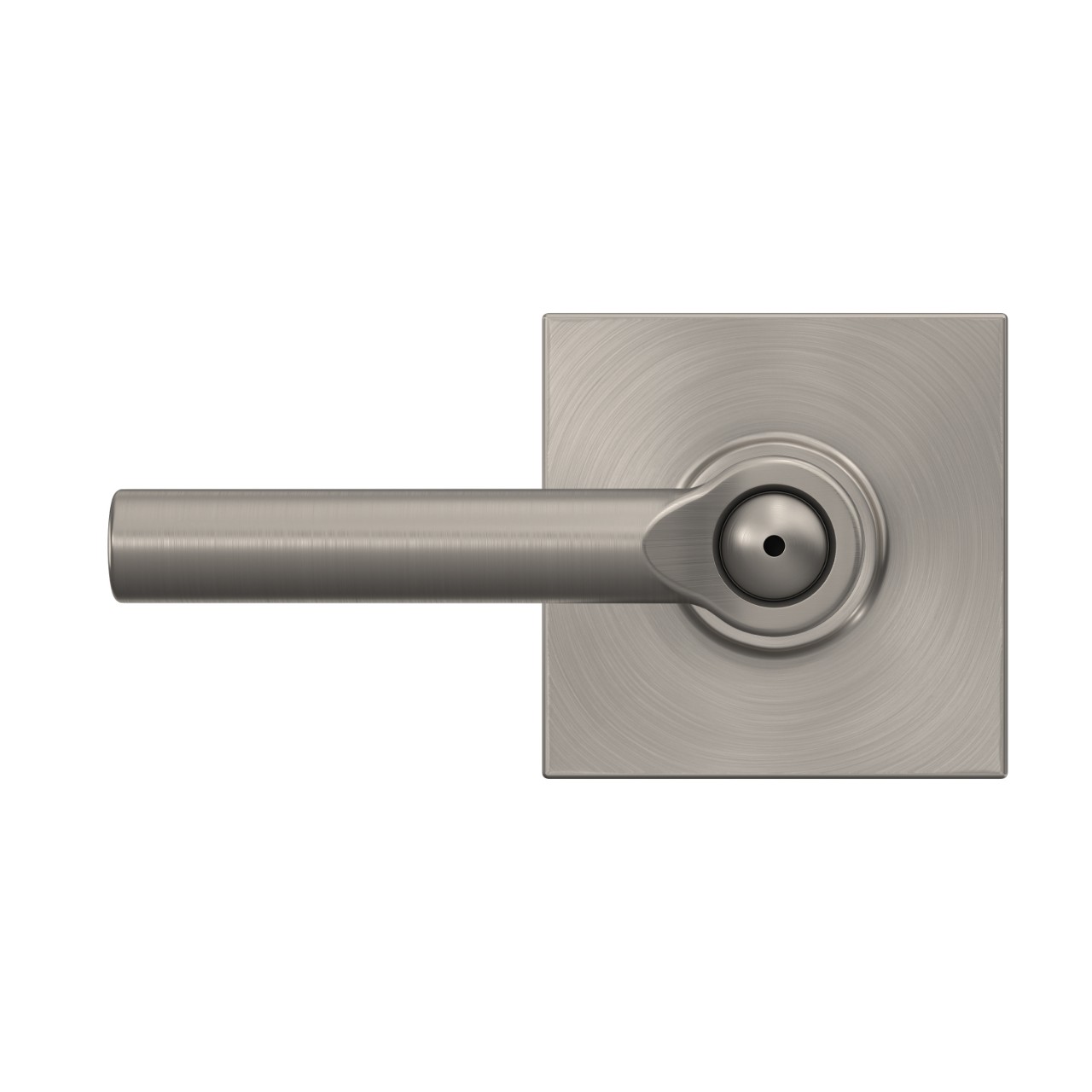

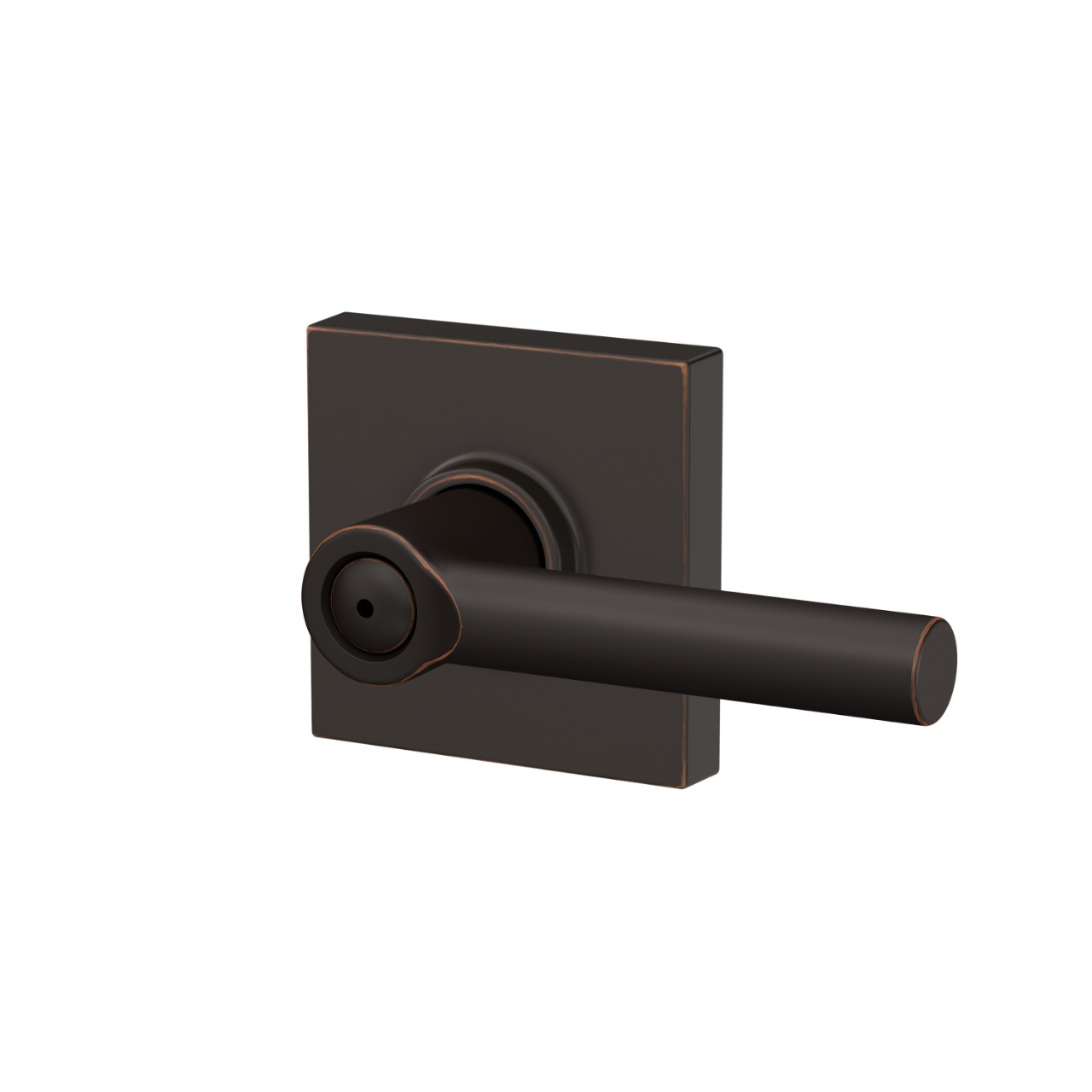

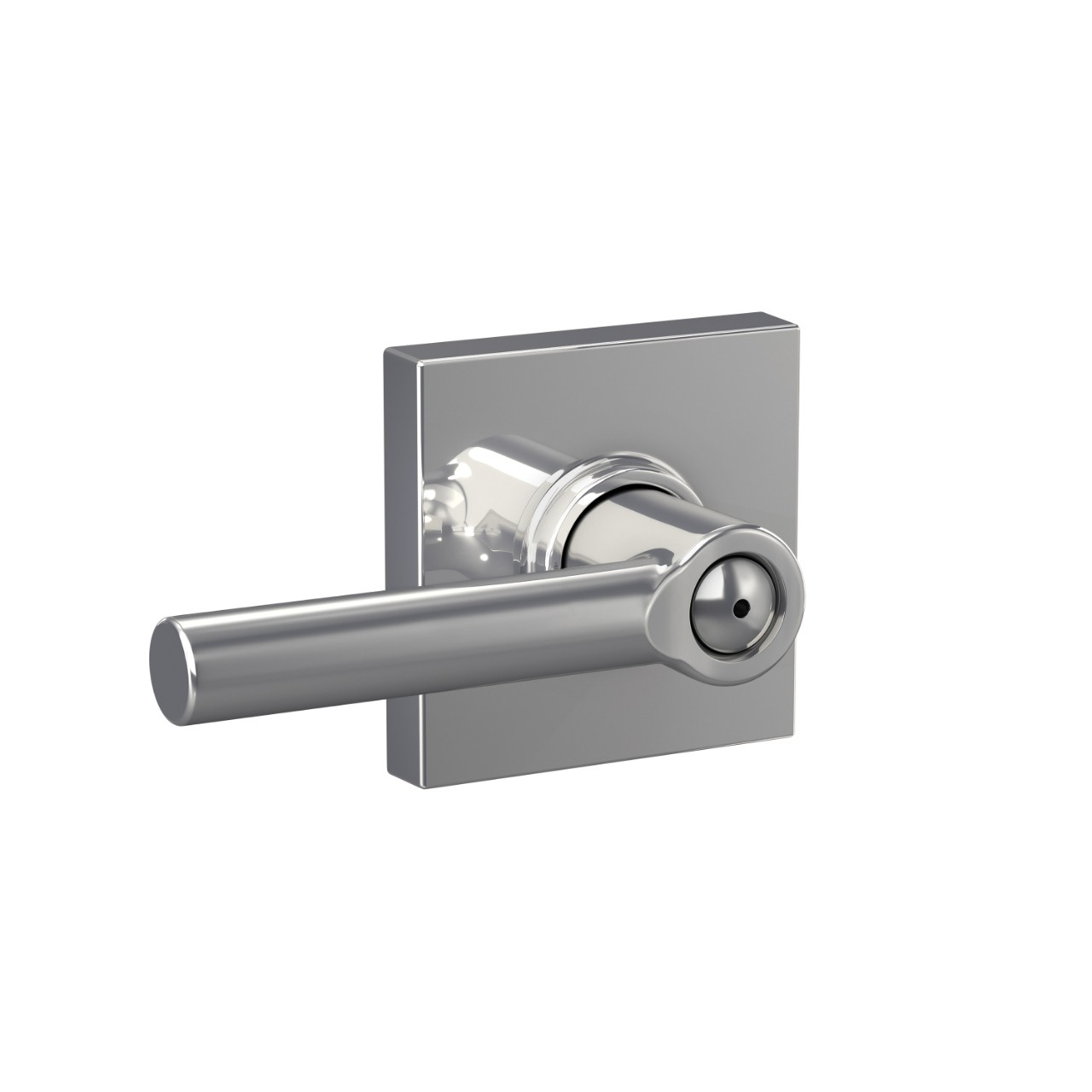

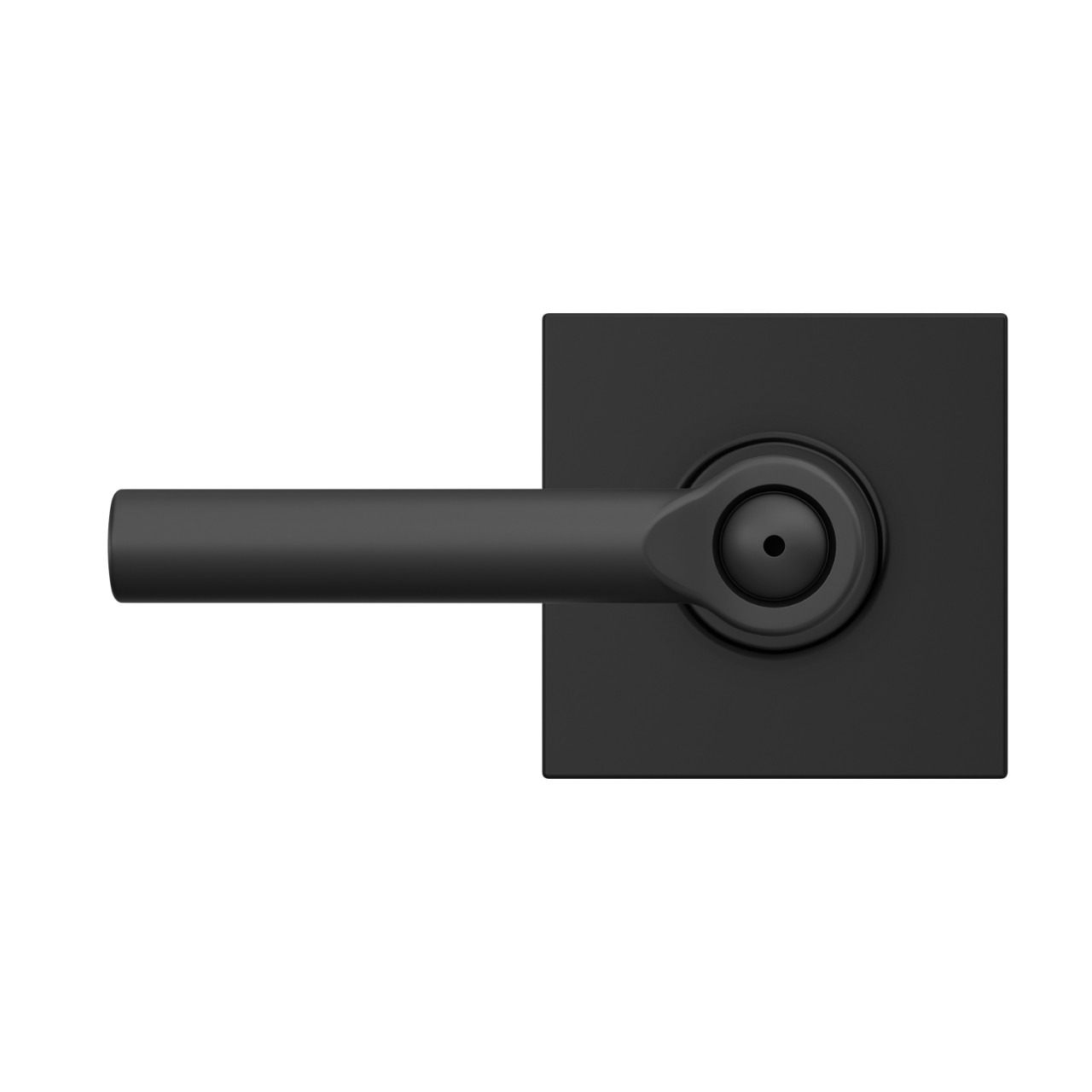

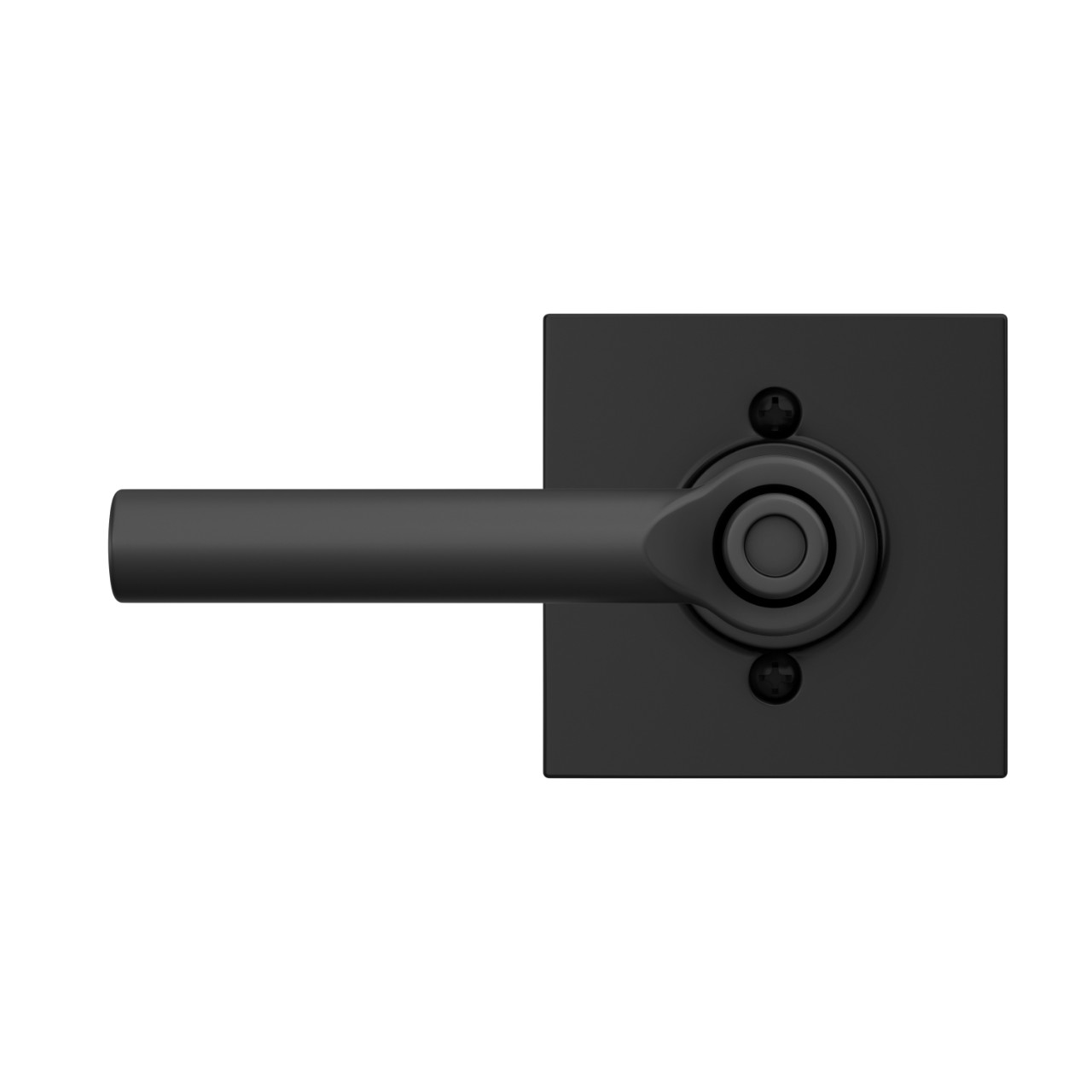

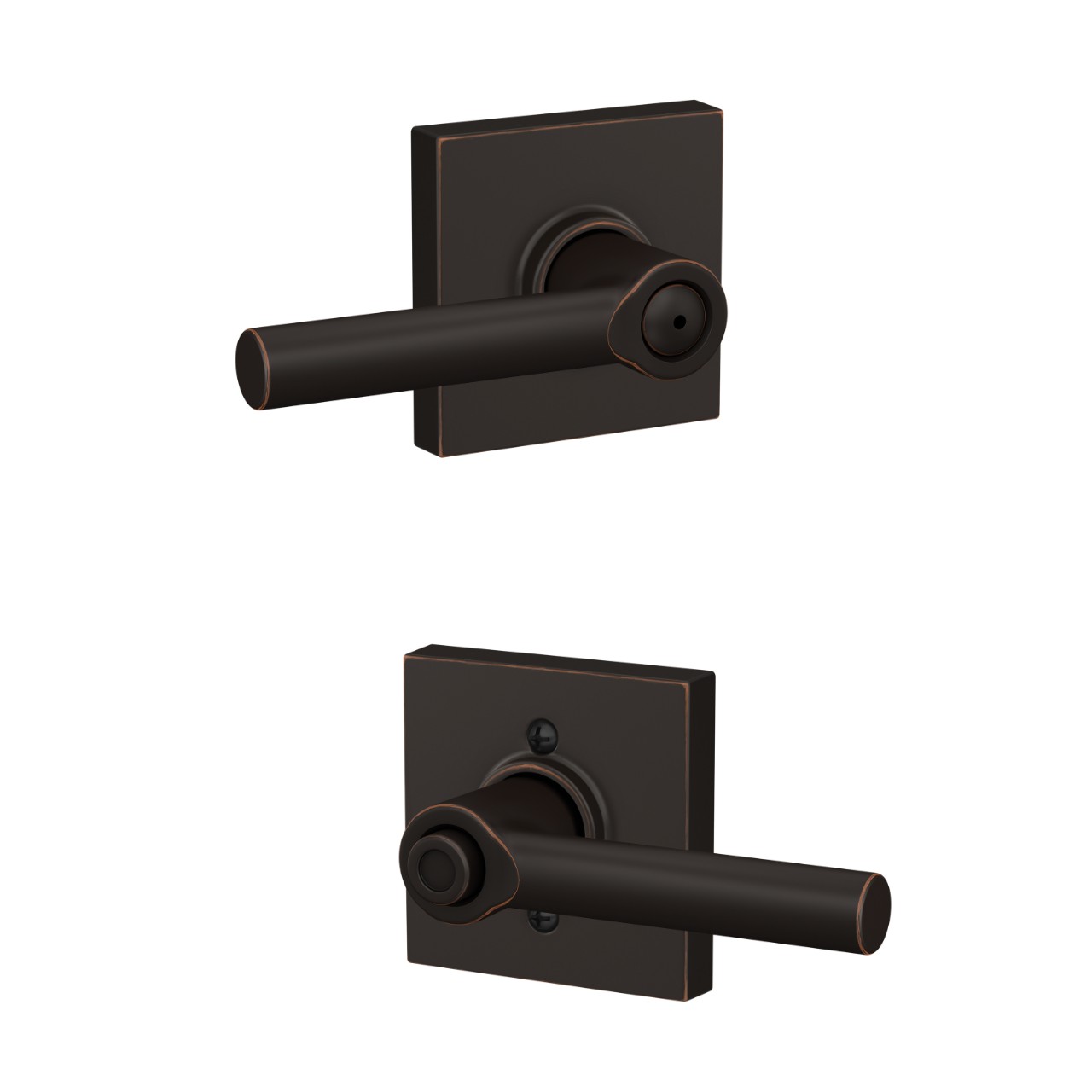

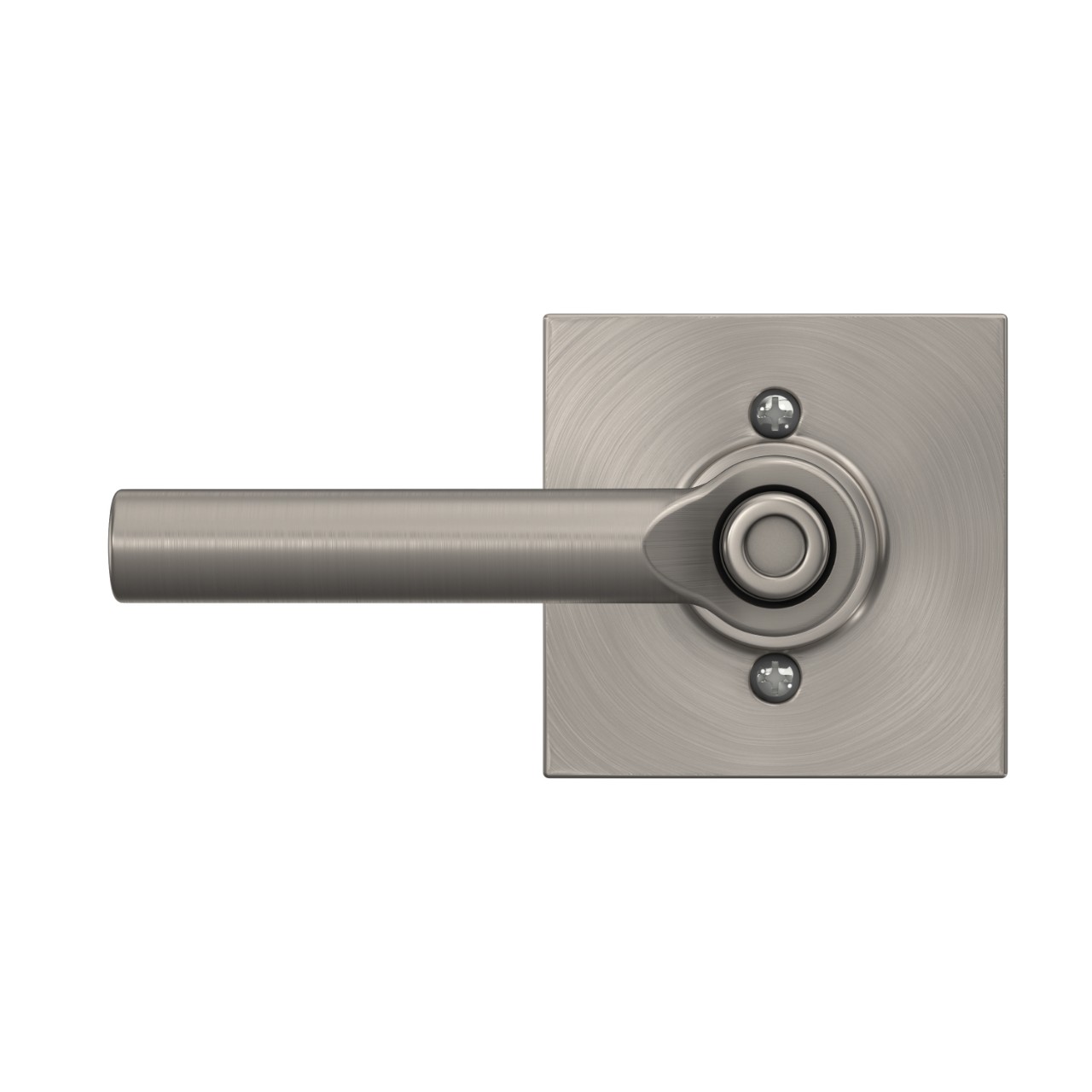

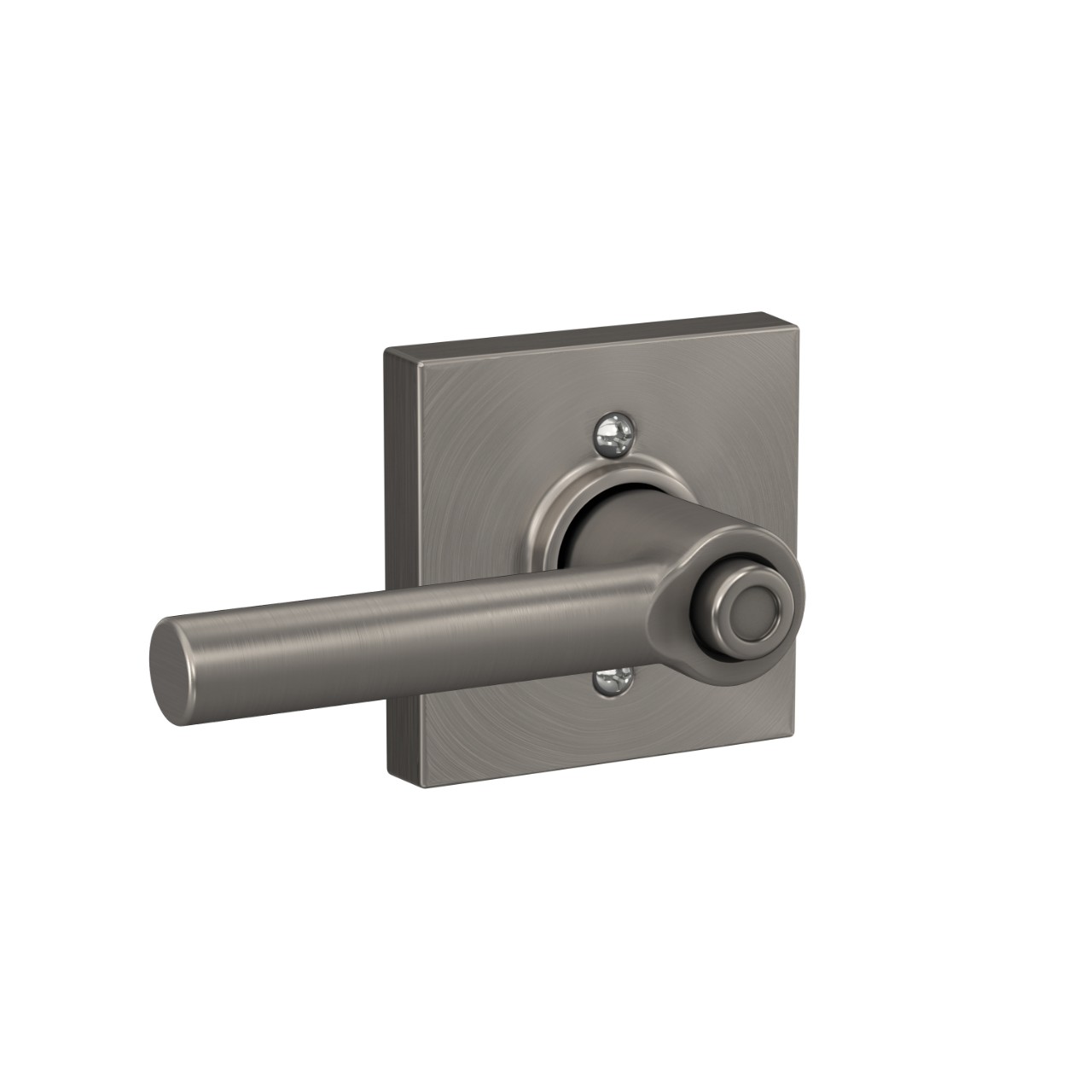

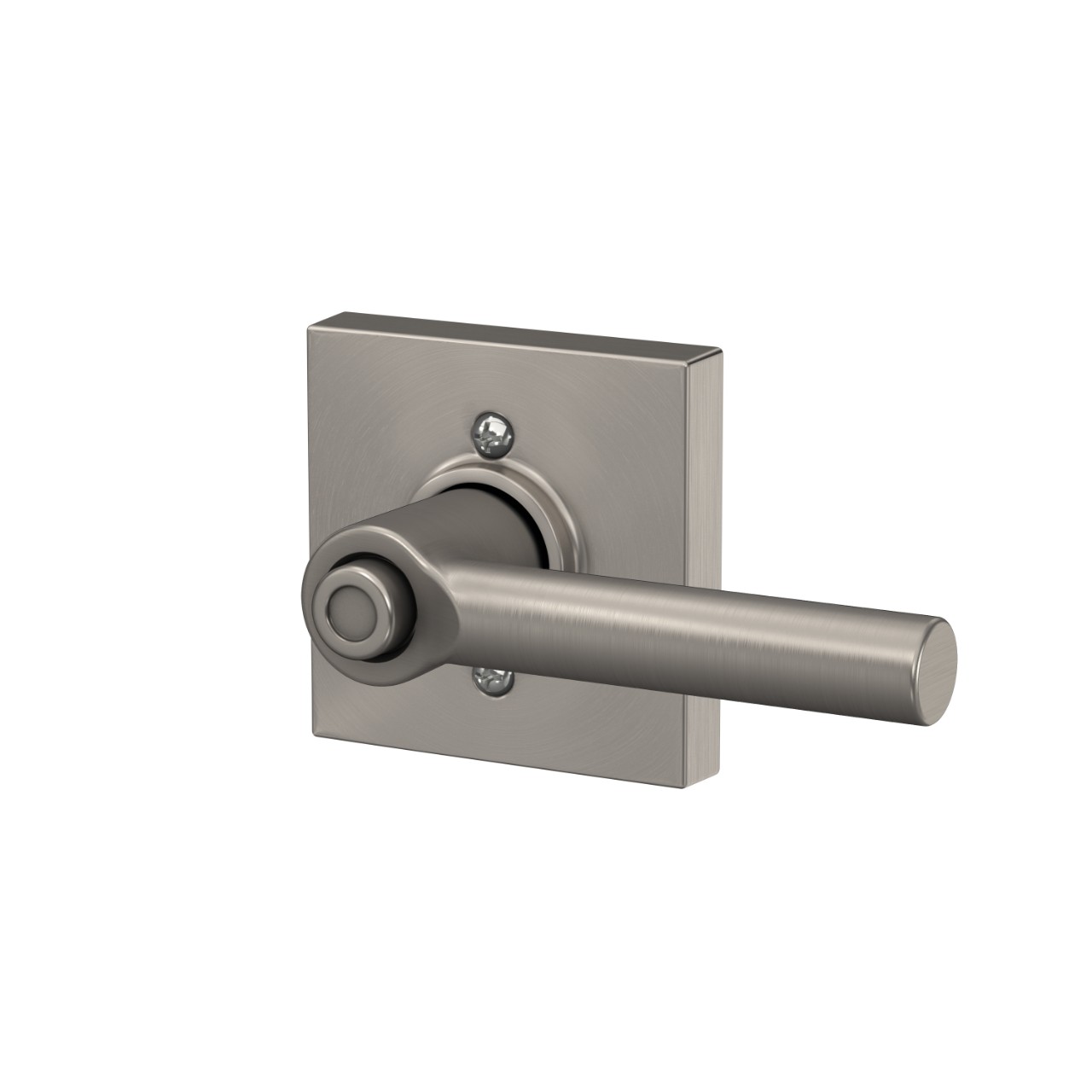

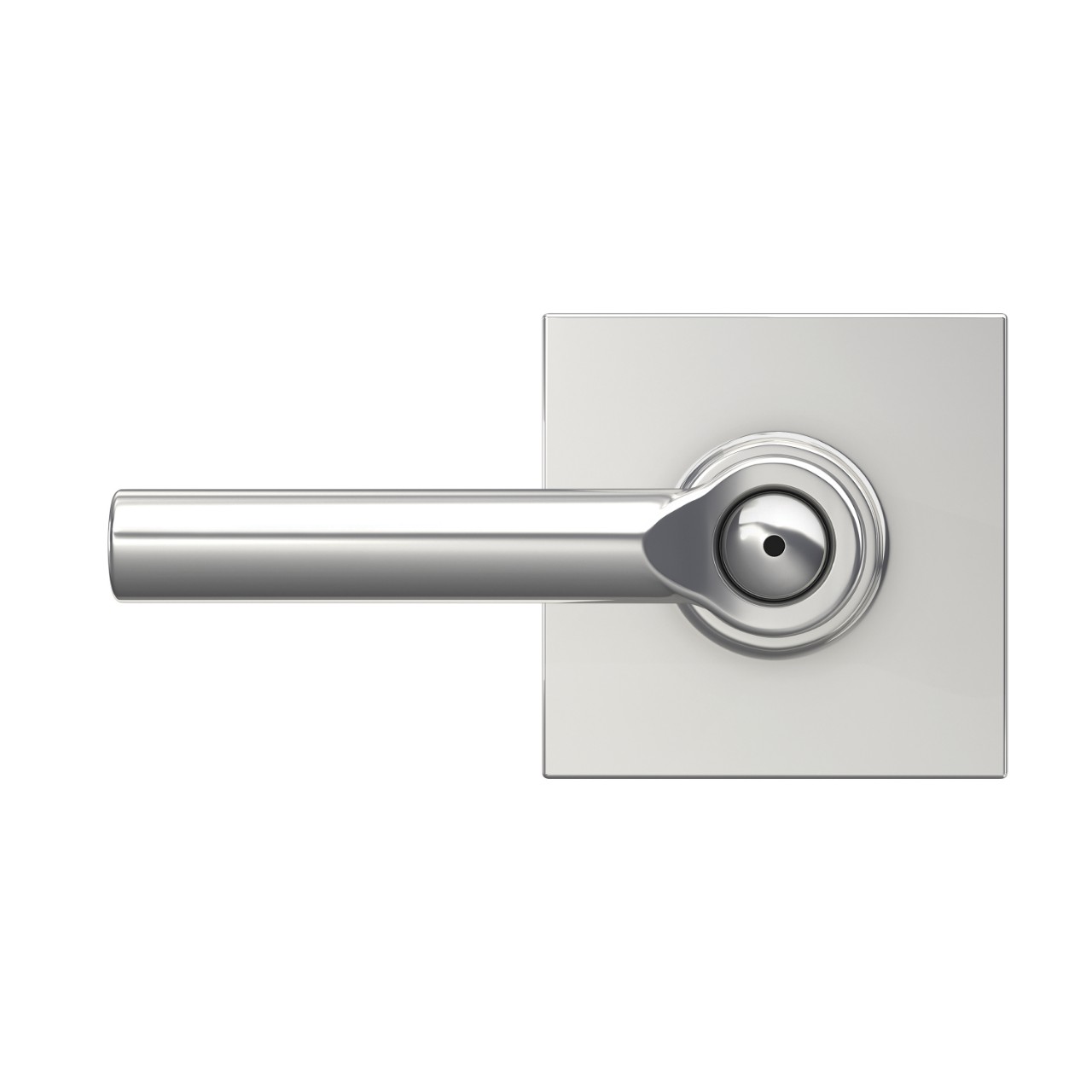

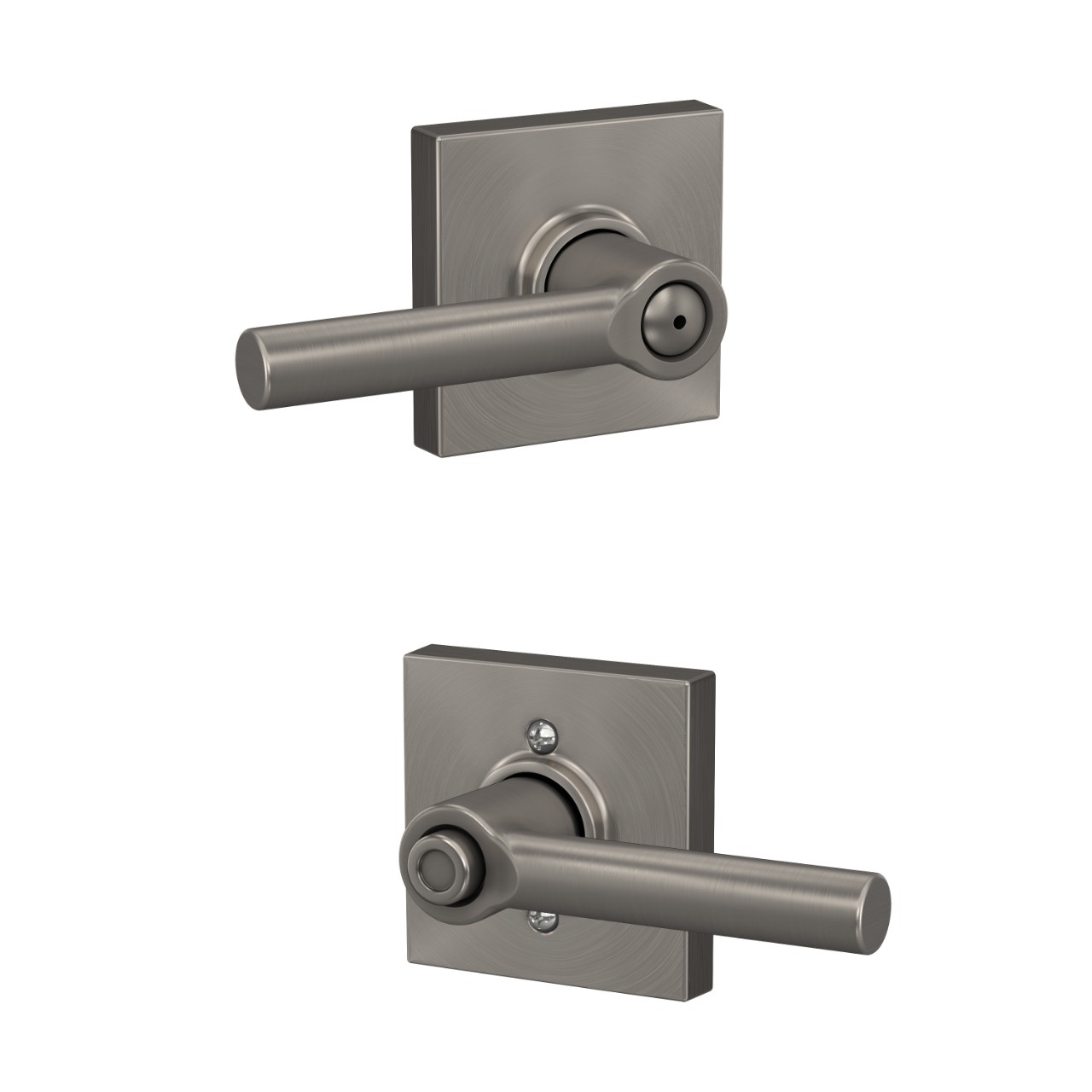

Broadway lever with Collins Trim Bed & Bath Lock

F40 BRW 619 COL

Tap to enlarge

Features

Use with 1-3/8 in. to 1-3/4 in. door

Guaranteed to fit on existing, standard pre-drilled doors

Lever design pairs well with contemporary styles and minimalist, open floor plans

For more than 95 years, Schlage has offered durable door hardware in a range of unique style combinations to express any personality

Push button, privacy function locks from the inside by pressing on the push button

Push button, privacy function automatically unlocks from the inside when the lever is rotated or from the outside in an emergency with the included pin key

Lock and finish backed by limited lifetime warranty (Oil-Rubbed Bronze exempt from finish guarantee)

Easy installation with Phillips screwdriver

Self-aligning screw holes make installation easy and hassle-free

Universal latches slide easily into place and require no tools or manual adjustments

Certified Commercial Grade 2

Graded Best in Residential Security, Durability, and Finish

Learn more about grading.

Specifications

ADA Compliant: Yes

Applications: Residential single- and multi-family doors

Backset: Universal Backset Adjusts to 2-3/8" (60mm) or 2-3/4" (70mm)

Certifications:

Commercial Standard Certification:ANSI/BHMA Commercial Grade 2

Residential Standard Certification:ANSI/BHMA Residential Grade AAA

Door thickness range: 1-3/8" to 1-3/4" (35mm to 44 mm)

Latch: Dual Option Latch includes spring latch with 1" x 2-1/4" round corner and drive in faceplates

Strike: Round corner, full lip strike 1-5/8" x 2-1/4"

Warranty: Limited Lifetime Mechanical and Finish Warranty (Oil-Rubbed Bronze exempt from finish guarantee)

How-To Center

Installation Instructions

1.3 MB

Door Prep Template

13.2 MB
