Features

  • SMART HOME READY: Easily links with Alexa and Google Home for voice control and to pair with smart home devices for automated routines, including video doorbells and smart lights
  • APP MANAGEMENT: Lock and unlock from anywhere, manage up to 250 access codes for keyless entry, view lock history, receive customizable notifications and easily manage multiple locks at once - all when paired to the Schlage Home app and connected to a secure WiFi network
  • CONTROL AWAY FROM HOME: With built-in WiFi, you can easily and securely connect your Schlage Arrive Deadbolt to your home WiFi network with the Schlage Home app to have confidence that your lock is secure when you’re away from home
  • WARRANTY: Limited lifetime mechanical and finish warranty and 3-year electronics warranty, see Schlage warranty for full details

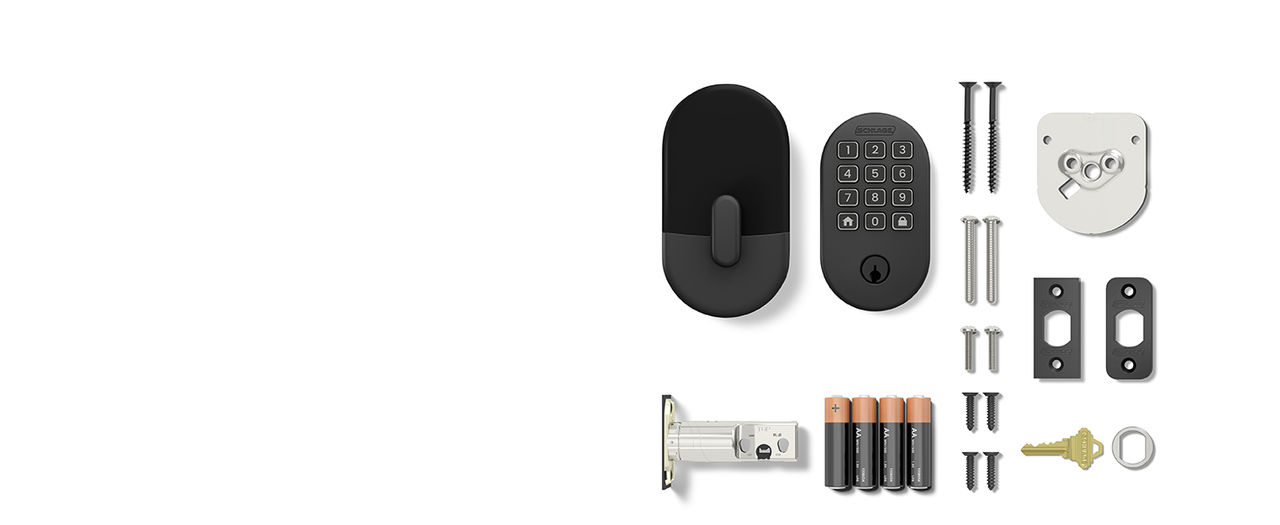

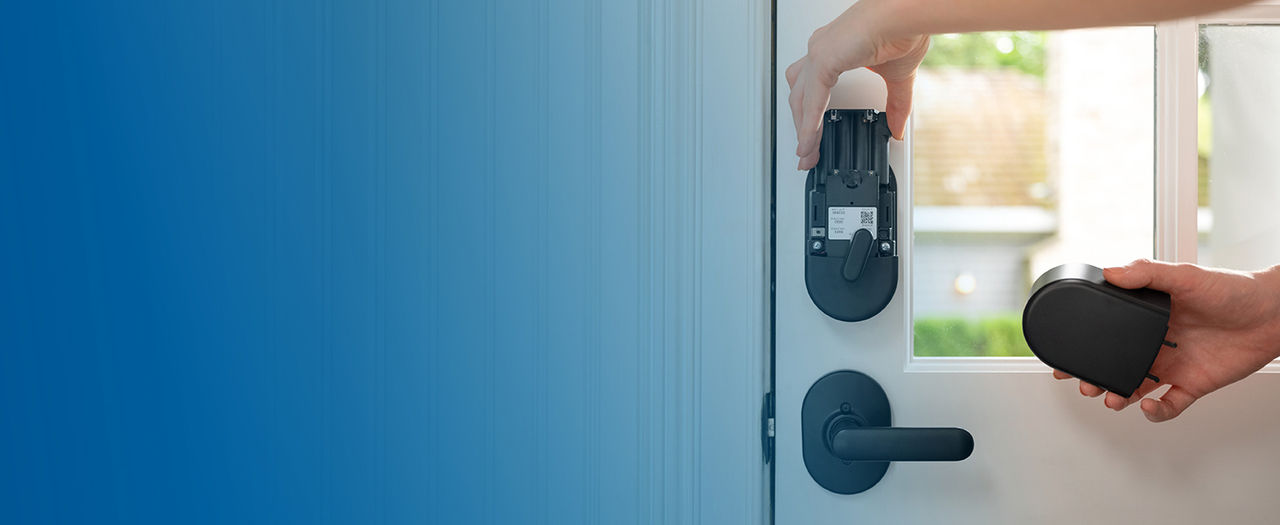

  • BATTERY-OPERATED: Uses four AA batteries-included; up to six months of battery life with typical use; low-battery indicator on lock keypad and in Schlage Home app provides advance notice; one physical backup key included

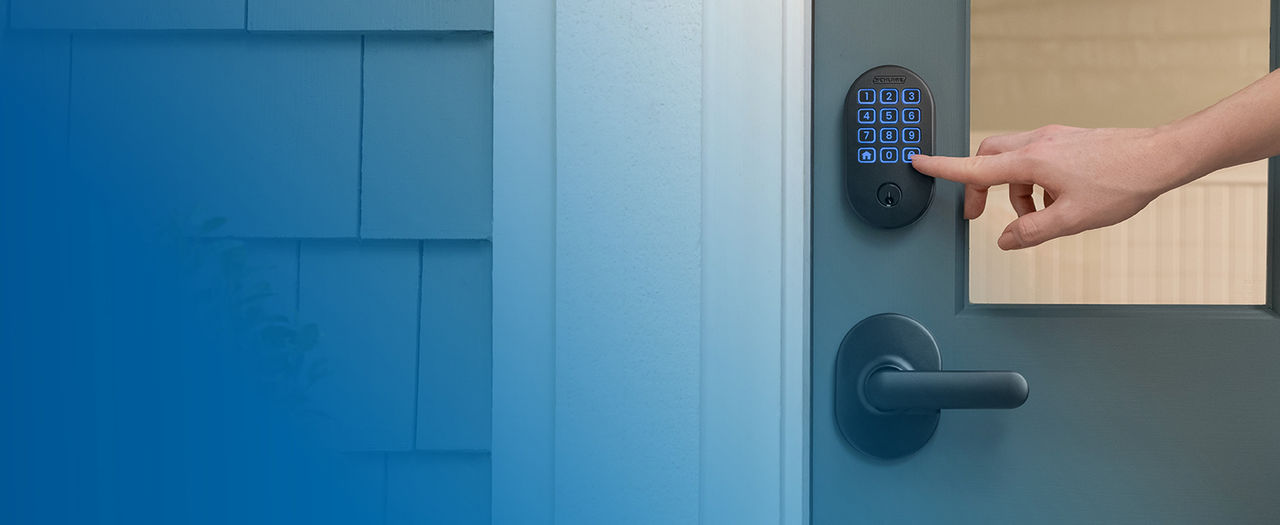

  • LOCK UP WITH EASE: Auto-lock conveniently relocks the door for you and has a variety of time delay options to choose from or can be turned off completely; One-touch locking from the exterior push-button keypad makes locking up when leaving easy

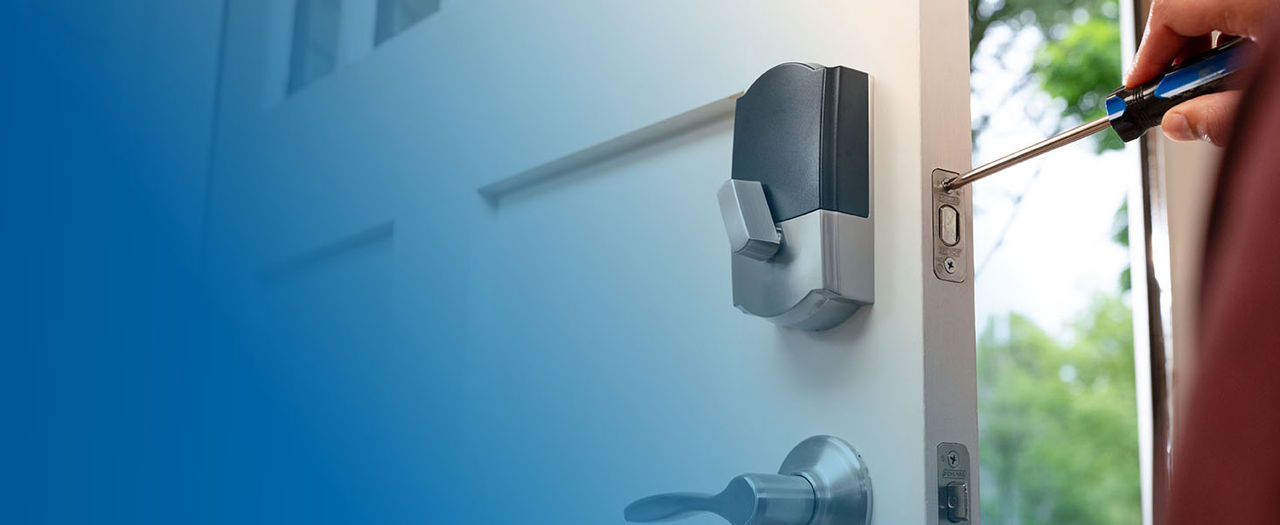

  • EASY INSTALL: Install in minutes with just a screwdriver, no hardwiring required; interactive digital instructions walk you through step by step; fits standard doors with 1-3/8 in to 2 in door thickness and 2-3/8 in or 2-3/4 in backset

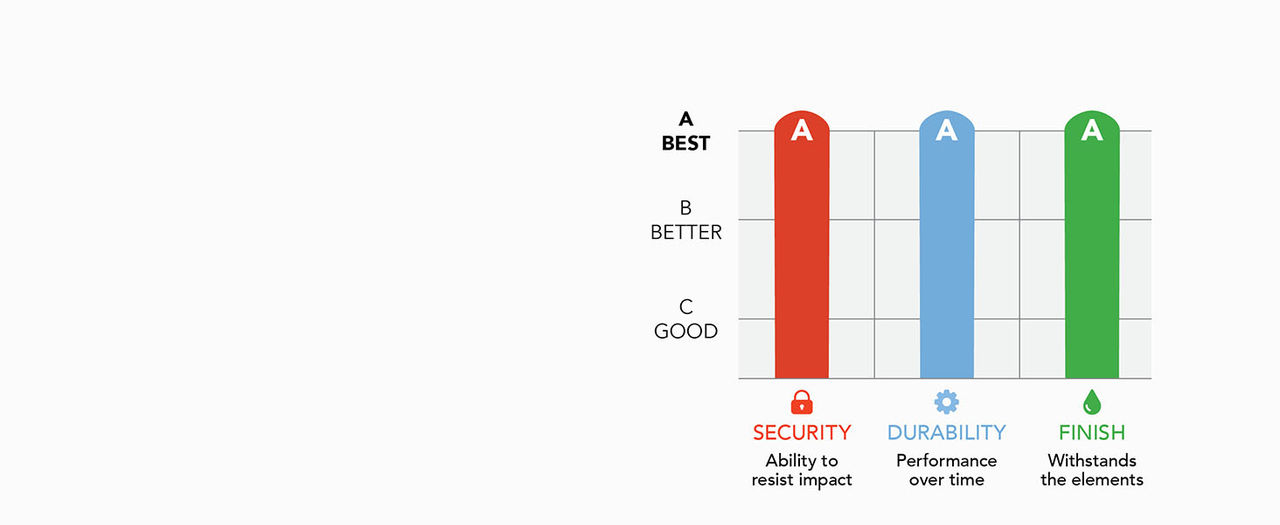

  • TRUSTED SECURITY: Secure, encrypted connection backed by 100 years of global security experts at Schlage; fingerprint-resistant push-button keypad ; certified highest residential Security, Durability and Finish rating by BHMA industry experts

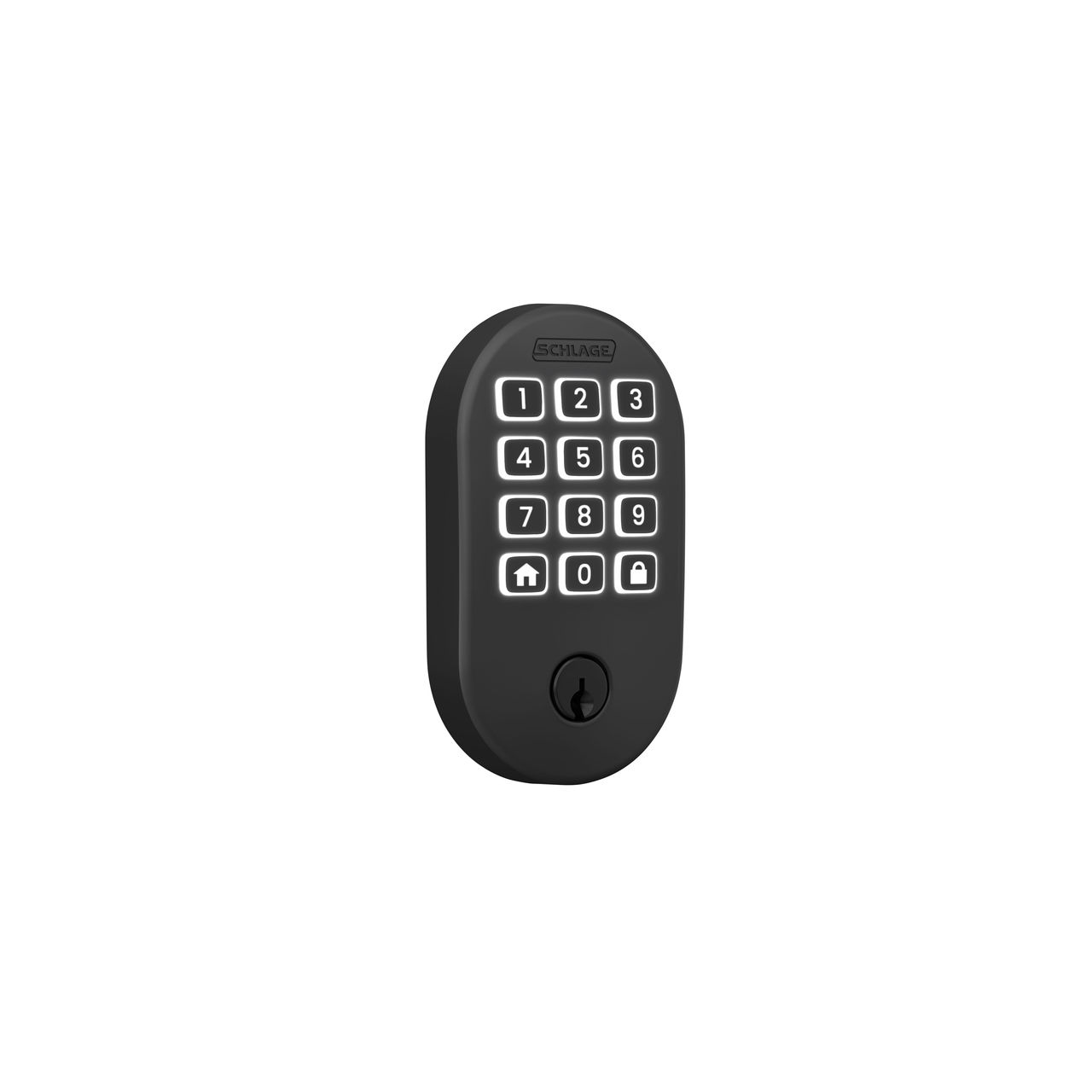

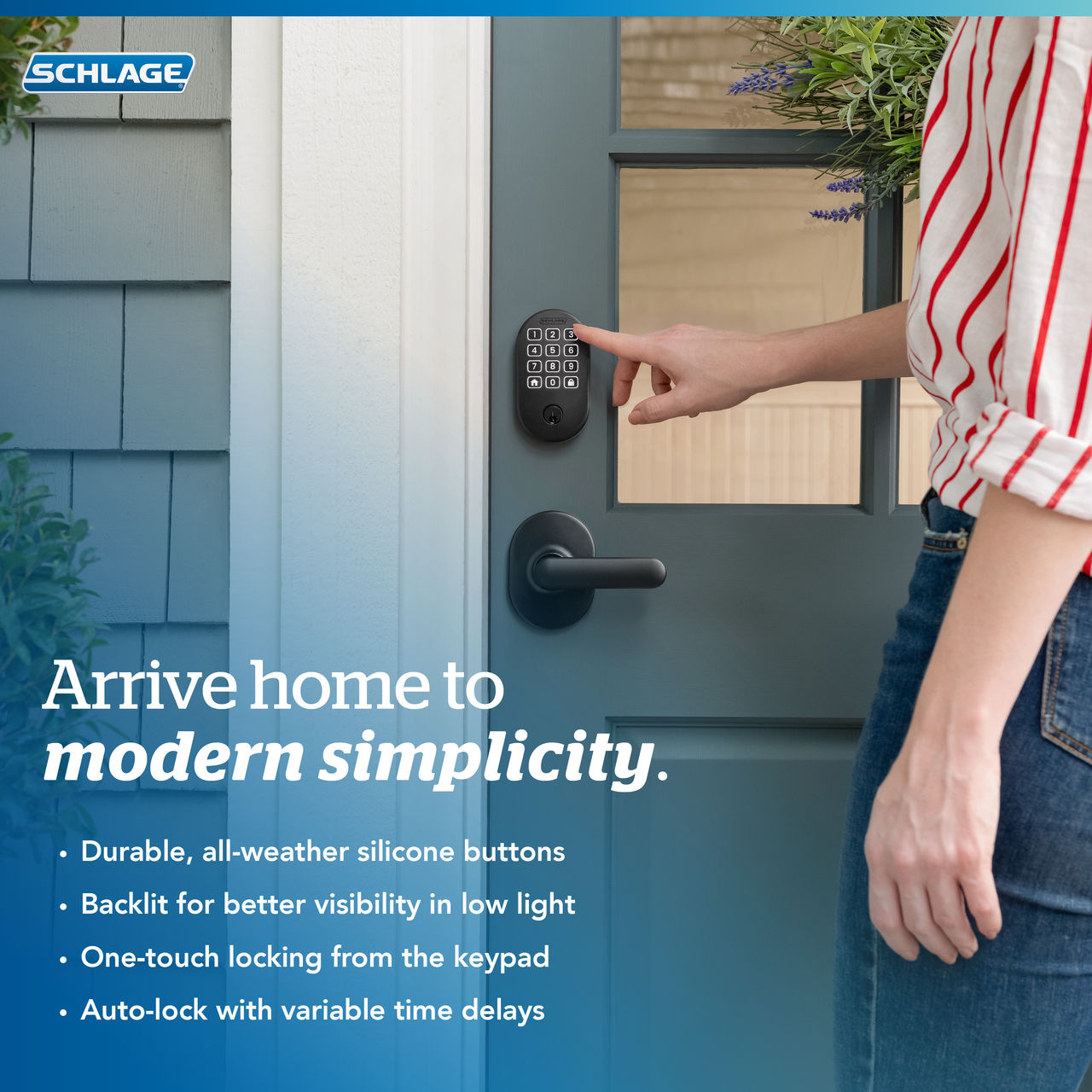

  • PUSH-BUTTON KEYPAD: Durable, all-weather silicone buttons are backlit for visibility in low light – physical buttons make access code entry easy
  • Learn more about grading.

Specifications

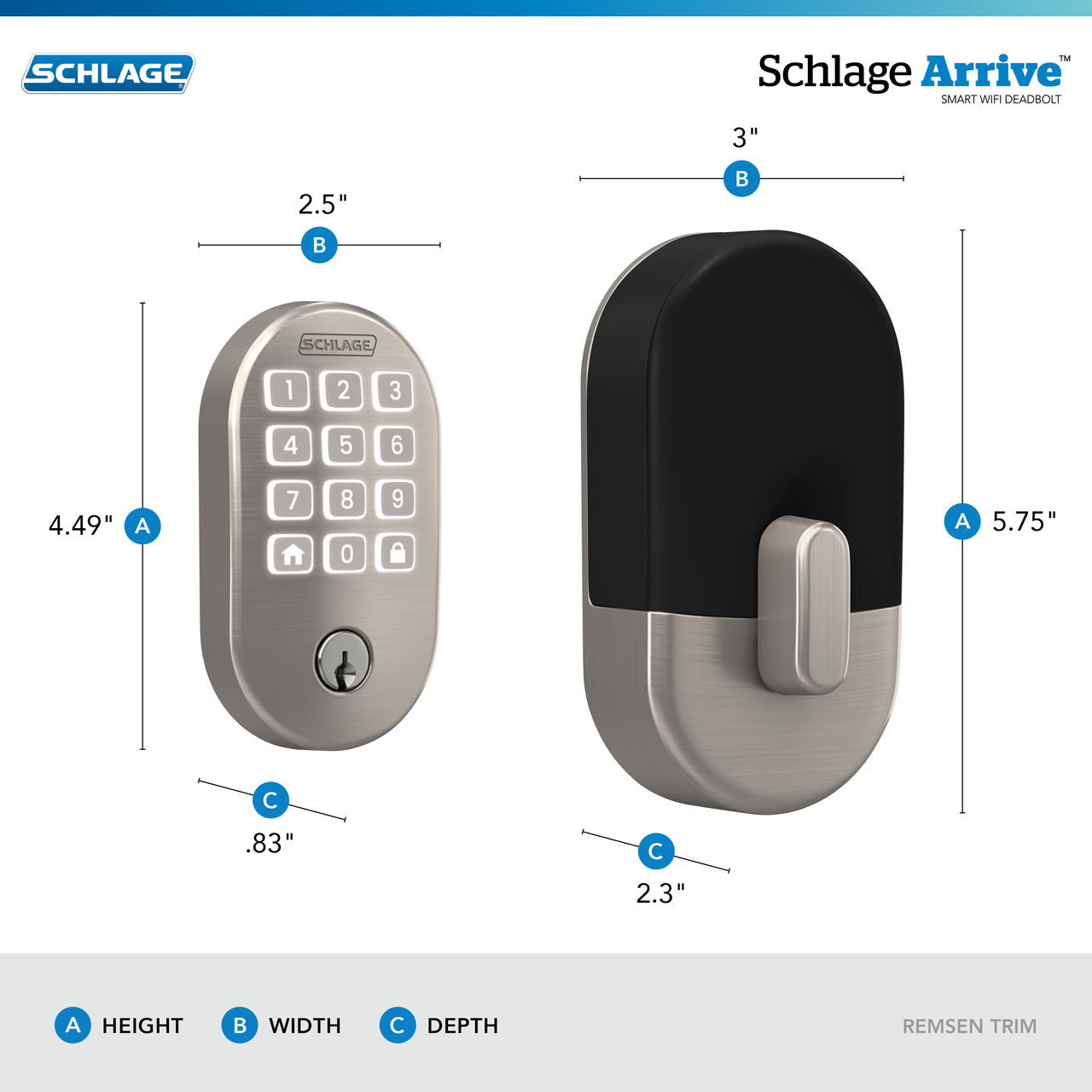

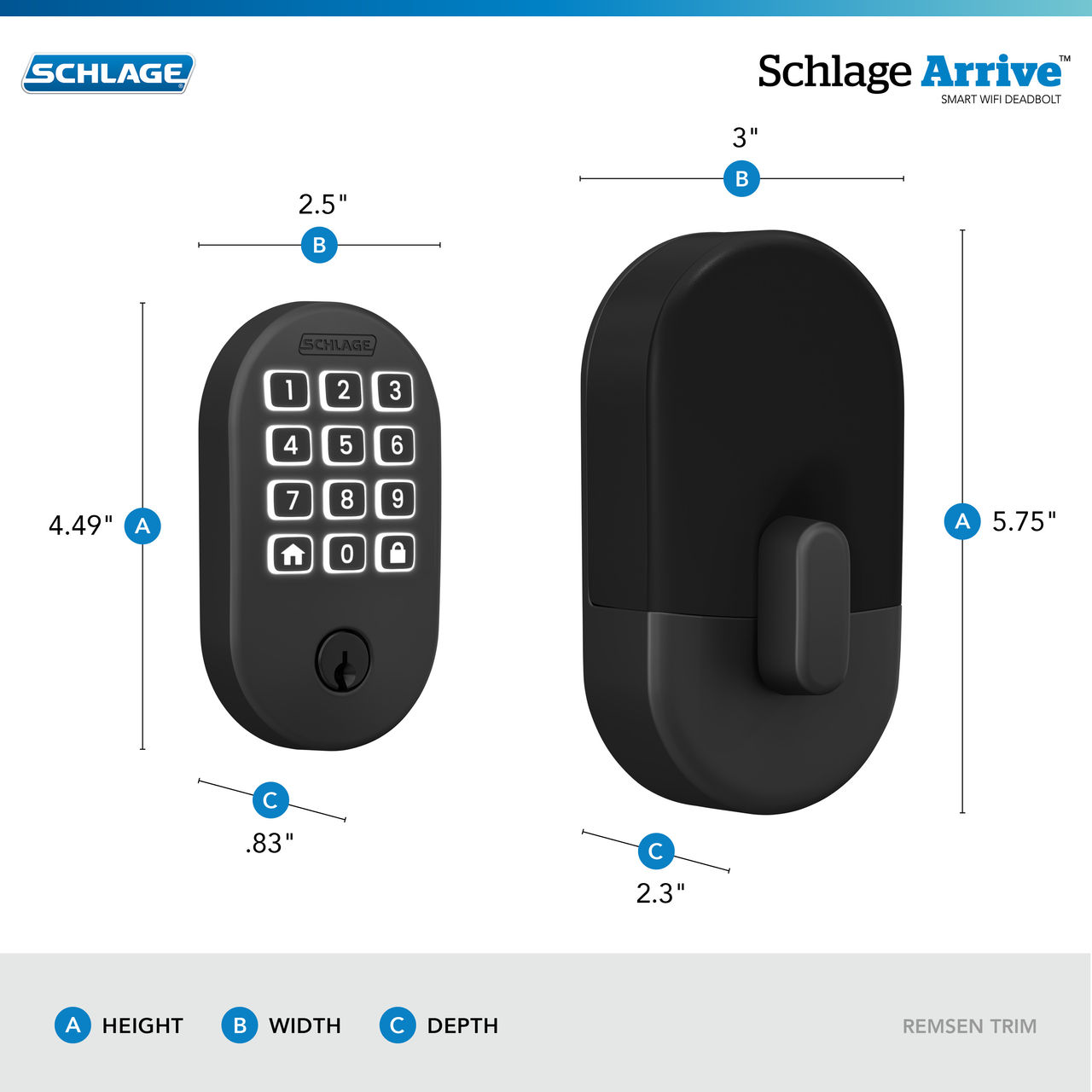

Interior Dimensions3" x 5.55" x 2.3"
Keying5-pin tumbler, C Keyway, 1 key included
CodesPre-set, unique 6-digit programming code, two pre-set unique 4-digit access codes, 250 code capacity
UL ListedUL10C - 20 Min Fire Door
Battery Cell TypeUses 4 AA alkaline batteries
WarrantyLimited 3-Year Electronics Warranty and Limited Lifetime Mechanical and Finish Warranty
ApplicationsResidential single family doors
Operating TemperaturesOperating Temperatures: Outside escutcheon: -31F to 150.8F / -35C to 66C, Inside escutcheon: 14F to 122F / -10C to 49C
Exterior Dimensions2.5" x 4.49" x 0.83"

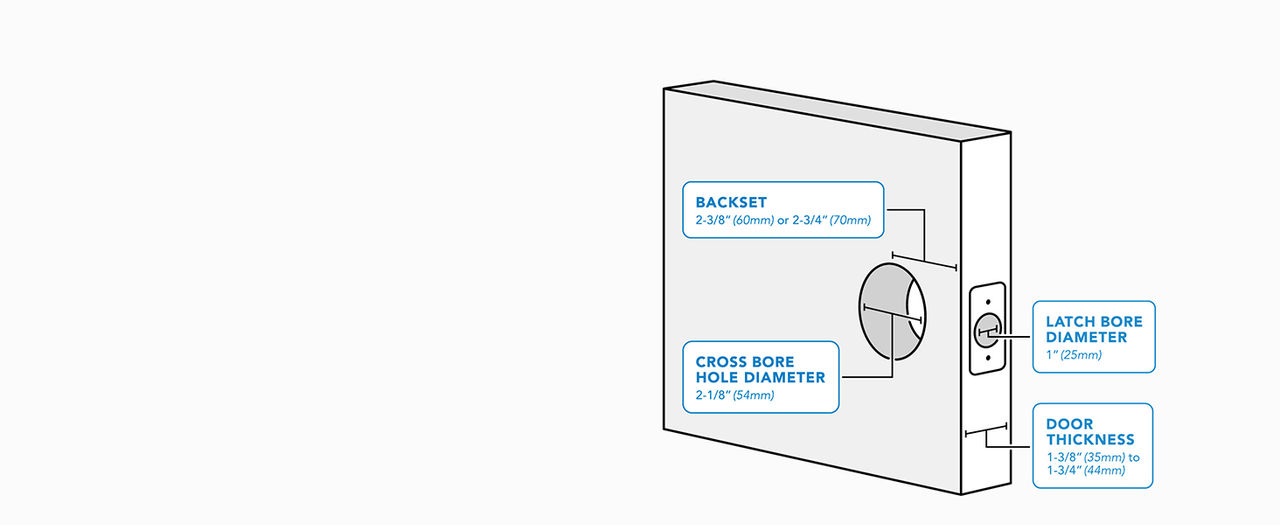

Door Thickness1-3/8 in (35 mm) to 2 in (50.8 mm)
WiFi compatibilityWiFi compatibility: requires 2.4GHz WiFi network
ADA CompliantYes
Backset (in)Universal Backset Adjusts to 2-3/8" (60mm) or 2-3/4" (70mm)
Certifications ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish
ANSI/BHMA A156.36-2010 Commercial Grade 1
